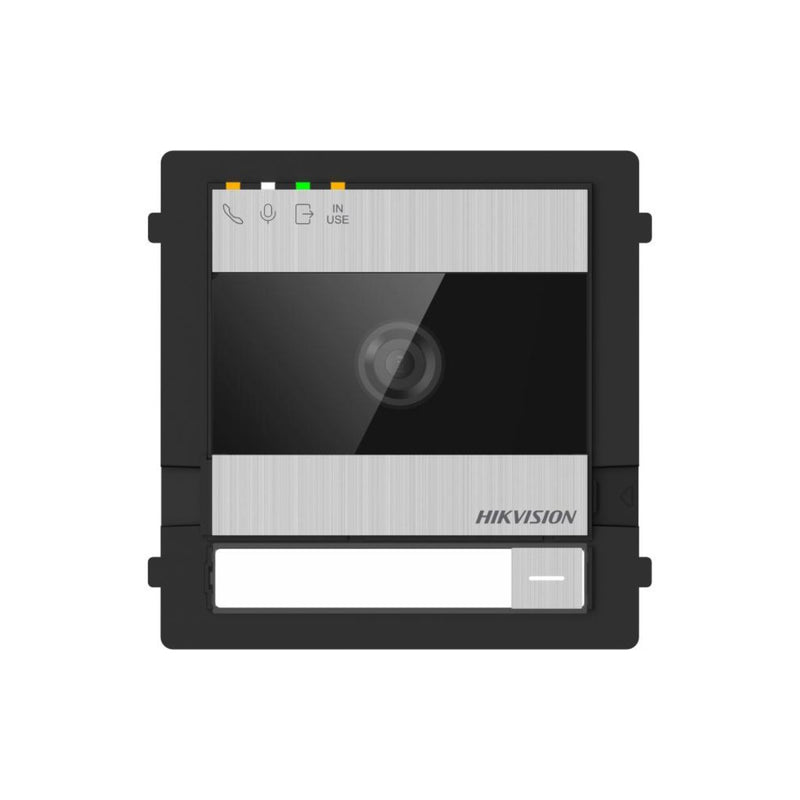

Hikvision 2-Wire HD Intercom 2MP Camera Module, Stainless Steel
Model: DS-KD7003EY-IME2
- HD images and wide viewing angle with WDR
- Compatible with released sub-modules (DIS is not supported for now)
- Support mobile web configuration (AP mode)
- Easy to Use: DEC knobs configuration, Plug & play
- Multiple indicators--Opening door, calling, on call, in use
- Single and double buttons can be freely adjusted
- Supports two-lock control
Specifications
- System Parameters
- Operating SystemEmbedded Linux operation system
- ROM4 GB
- RAM256 MB
- CPUEmbedded Processor
- Display Parameters
- Screen SizeNA
- Operation MethodNA
- TypeNA
- ResolutionNA
- Video Parameters
- Supplement LightLow illumination, IR supplement lights
- Video StandardH.264
- Lens1
- FOVHorizontal: 133°, Vertical: 82°
- WDR
Support
- Resolution2 MP
- Audio Parameters
- Audio Compression StandardG.711 U, G.711 A
- Audio Input
Built-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- User Capacity2000
- Linked Indoor Station CapacityMax.99
- Sub Door Station Capacity16
- Network Parameters
- Wired Network10/100 Mbps self-adaptive through 2-wire interface
- Wi-FiOnly AP mode for configuration
- BluetoothNA
- 3G/4GNA
- Device Interfaces
- Alarm Input2（supports Exit button or Door contact input）
- Network InterfaceNA
- TAMPER1
- Exit Button1
- Door Contact Input1
- RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
- WiegandNA
- TF CardNA
- Alarm OutputNA
- DIP Switch6 decimal DIP switch
- Lock Control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Power Interface48V，Powered by distributor DS-KAD7060EY or 12VDC
- Two-Wire IP Interface1
- General
- Button0-2（Flexible adjustment）
- InstallationSurface mounting & flush mounting
- Indicator4 LED lights(Opening door、Calling、Intercom、In use）
- WeightWith package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
- Protective LevelIP65 IK08
- Working Temperature
-40° C to 60° C (-22° F to 140° F)
- Working Humidity
10% to 90%
- Dimensions
99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88\" × 1.37\")
- Battery/
- Power Supply48V，Powered by distributor DS-KAD7060EY or 12VDC
- Application EnvironmentOutdoor
- Power Consumption≤ 6 W
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
