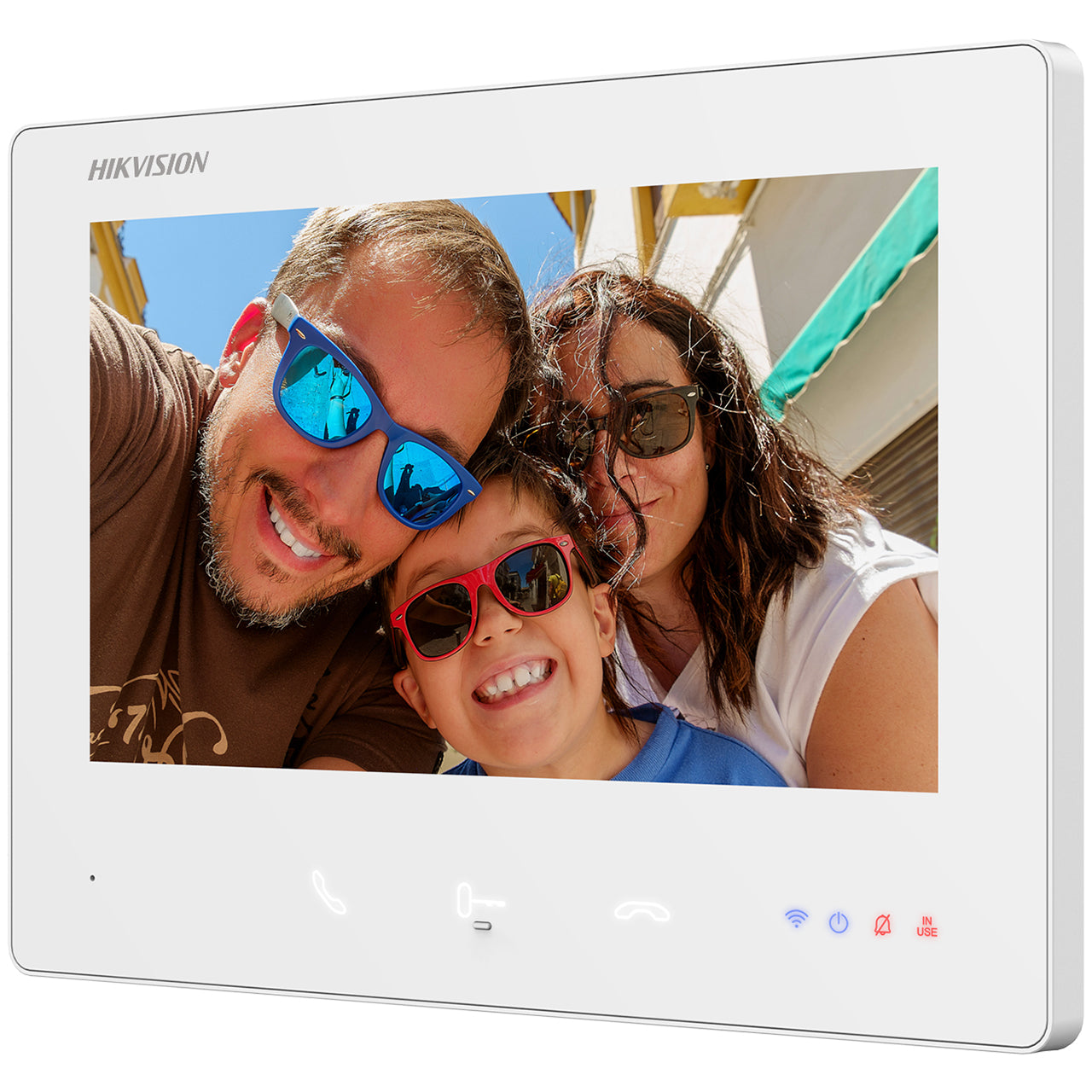

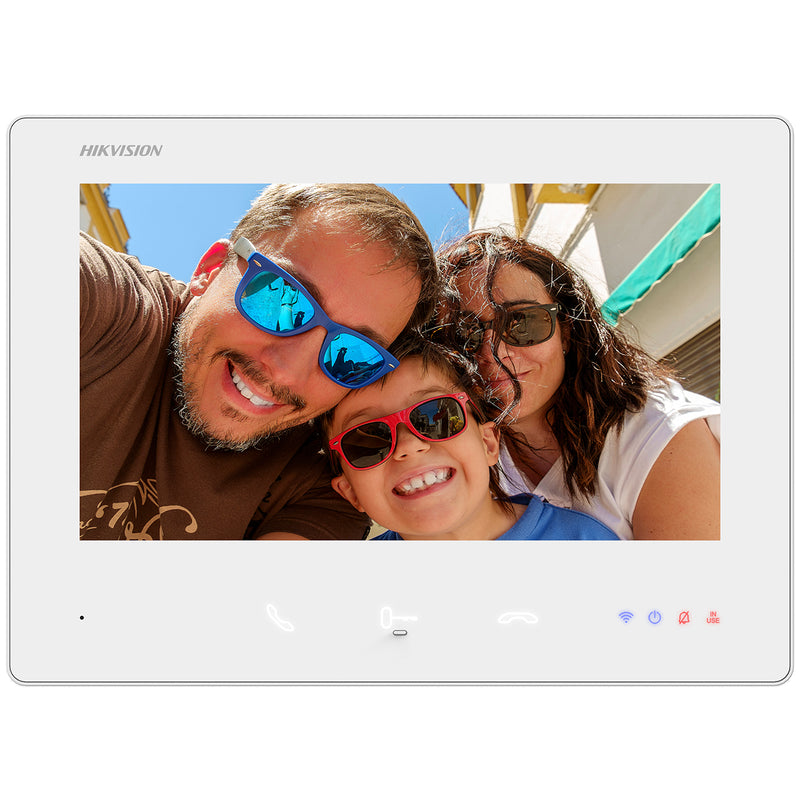

Hikvision 2-Wire HD Intercom 7" Touch Screen with WiFi
Model: DS-KH7300EY-WTE2
- 7-inch touch screen with 1024*600 high resolution
- 3 touch buttons, physically challenged friendly
- Easy to Use: DEC knobs configuration;
- Plug & play, support different connection topologies
- Supports Hik-Connect App (model with W)
- Multiple indicators--Wi-Fi, power, mute, in use
- Max. 4 custom virtual buttons
- View live view of door stations
- Support Professional Studio / Trade button function (Open doors automatically)
- Support Floor Call
Specifications
- System Parameters
- Operating SystemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- CPUEmbedded processor
- Display Parameters
- Screen Size7-inch
- Operation MethodCapacitive touch screen
- TypeColorful TFT screen
- Resolution1024 × 600
- Video Parameters
- Lens/
- FOV/
- WDR/
- Resolution/
- Focal Length/
- Audio Parameters
- Audio Compression StandardG.711 U G.711 A
- Audio Input1 Built-in omnidirectional microphone
- Audio Output1 Buit-in loudspeaker
- Audio Compression Bitrate64 Kps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Event Capacity200 captured pictures (with TF card)
- Linked Indoor Extensions Capacity3
- Network Parameters
- Communication ProtocolTCP/IP, RTSP
- Wi-Fi Standard2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- 3G/4G Standard/
- Zigbee/
- Device Interfaces
- Alarm Input1
- TAMPER/
- RS-485/
- USB/
- TF CardMax to 128 G, SD 2.0 or lower version
- Alarm Output/
- DIP Switch5 decimal DIP switch and 4 binary DIP switch
- Power Supply Input48V，powered by DS-KAD7060EY or DS-KAD7061EY
- Two-Wire IP Interface2, 1 for input 1 for output
- General
- Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- InstallationSurface mounting
- Indicator4（Wifi、Power、Mute、In use）
- Protective Level/
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10% to 90% (no-condensing)
- Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
- Battery/
- Power Supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
- Application EnvironmentIndoor
- Power Consumption≤ 5W (stand by ≤ 1.2 W)
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
