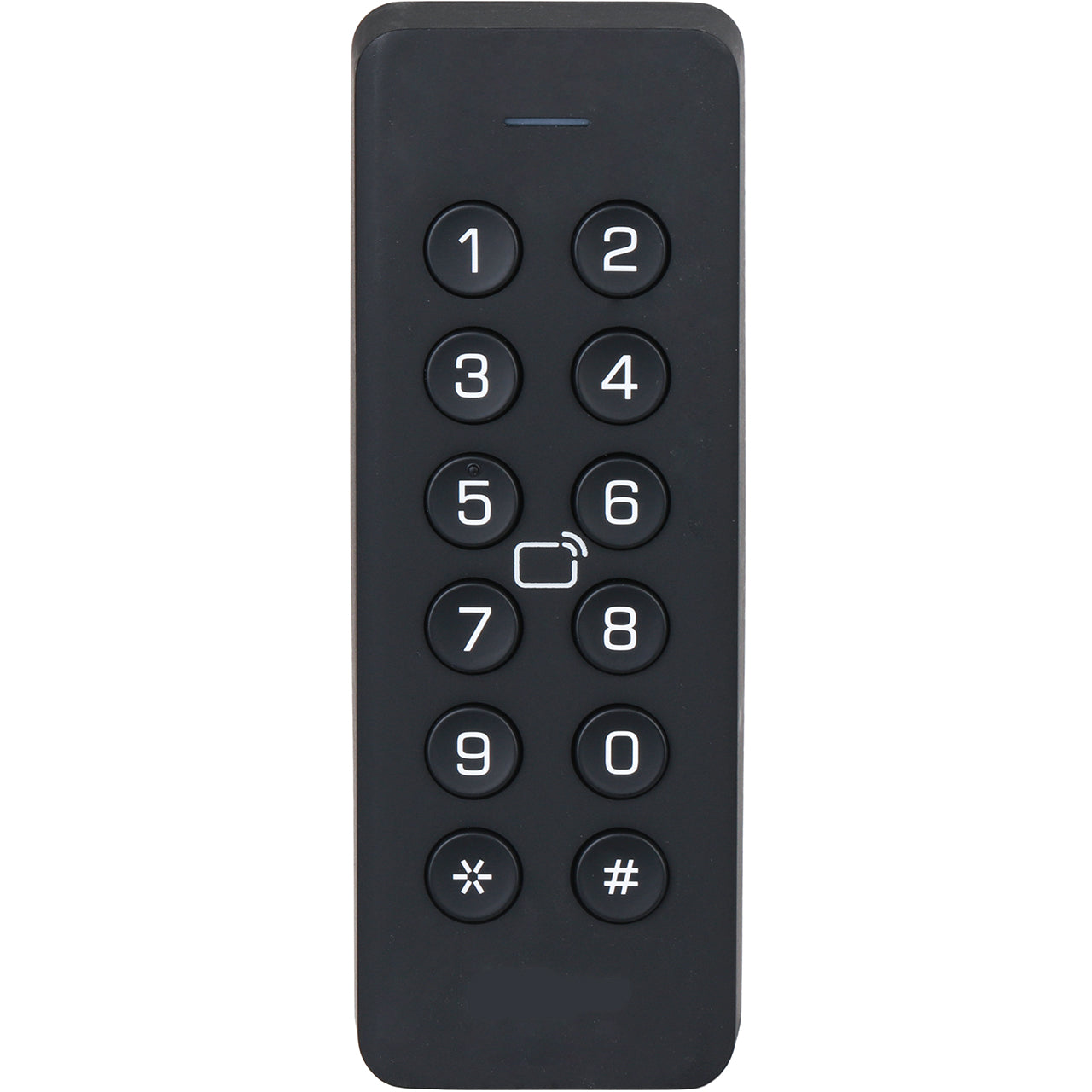

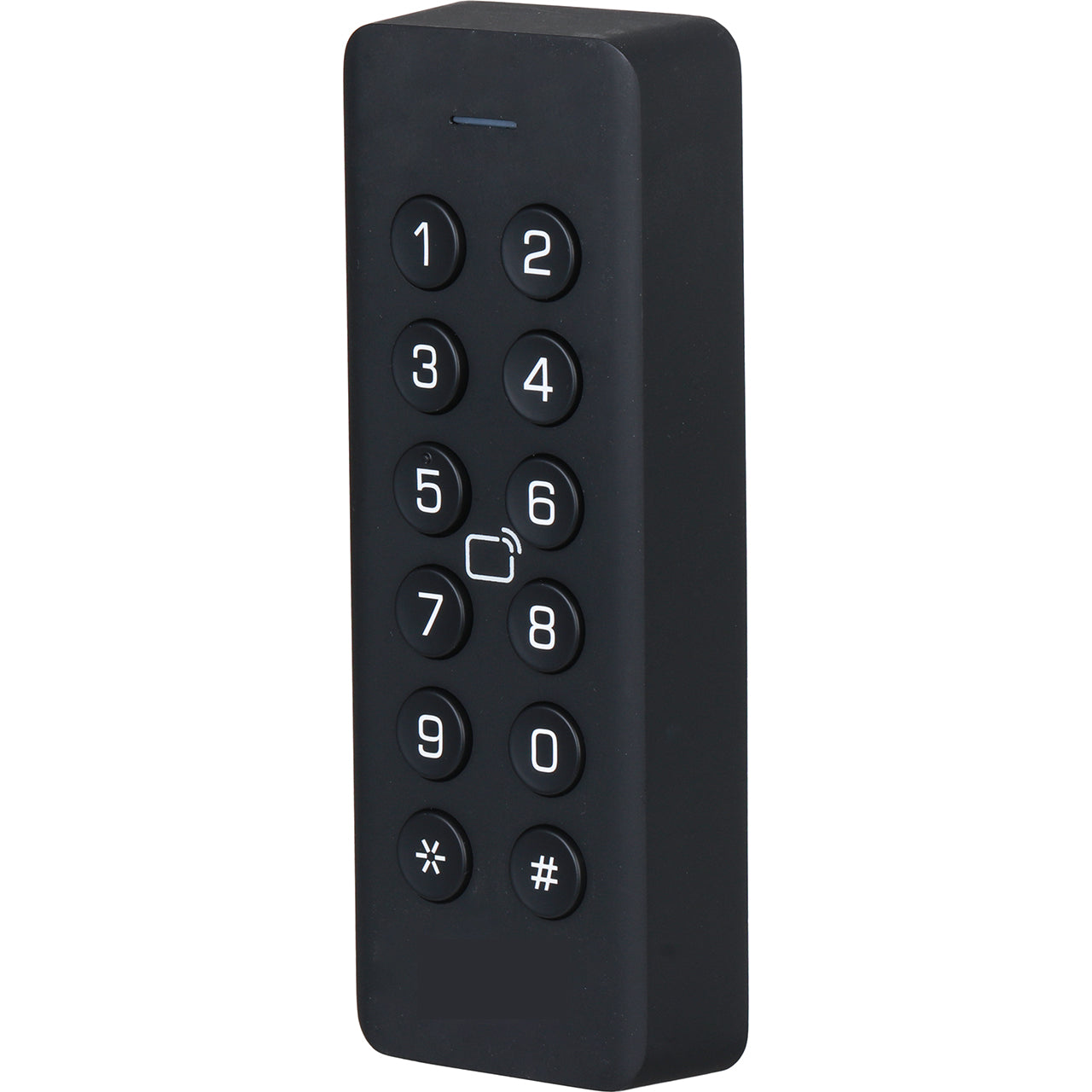

Klear Access Control Card Reader with Keypad
Model: K-ACC KP
- RS-485, Wiegand (W26/W34) and OSDP protocols
- 13.56 MHz MIFARE (UID) with Keypad
- Tamper alarm
- Built-in buzzer and indicator LED for status
- Watchdog to monitor and control the device
- Overcurrent and overvoltage protection
- Low profile - 20mm deep
-
IP66
Specifications
System | |
OSDP Protocol | Yes |
Button Type | Mechanical |
Basic | |
Product Type | Card reader |
Buzzer | Yes |
Backlight | Yes |
Casing Material | PC + ABS |
Function | |
Unlock Mode | Card, password |
Card Type | IC card |
Performance | |
Response Time | 0.1 s |
Card Reading Distance | 0 cm–8 cm (0"–3.15") |
Port | |
RS-485 | 1 |
Wiegand | 1 channel output |
Alarm | |
Tamper Alarm | Yes |
General | |
Power Supply | 12 VDC, 0.5 A |
Protection | IP66 |
Power Consumption | ≤ 0.48 W (standby), ≤ 1.2 W (working) |
Product Dimensions | 127 mm × 46 mm × 20 mm (5.00" × 1.81" × 0.79") |
Packaging Dimensions | 139 mm × 73 mm × 48 mm (5.47" × 2.87" × 1.89") |
Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
Operating Humidity | ≤ 95% (RH) |
Operating Environment | Outdoor |
Gross Weight | 104 g (0.23 lb) |
Installation | Surface Mount |
==>
