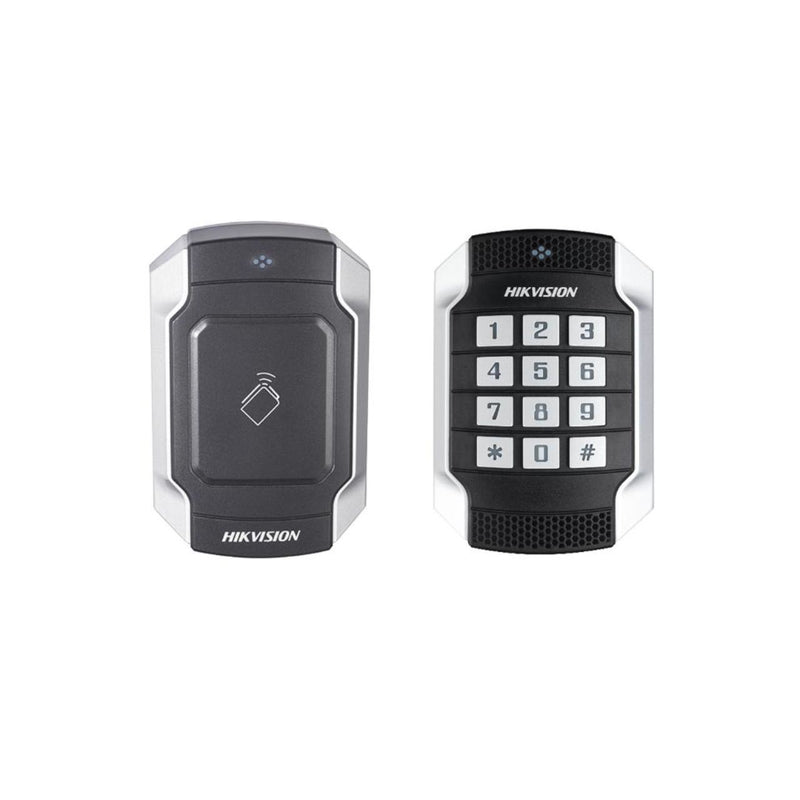

Hikvision Pro Access Control Vandal-proof Card Reader
Model: DS-K1104M
- M1 card reader
- PC+zinc-alloy material shell
- Built-in audible beeper
- RS-485 and Wiegand interface
- IK10
Specifications
- Authentication
- Card Reading Frequency13.56MHz
- General
- Power Supply12 VDC, ≤ 500 mA
- Power Consumption≤ 2 W
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity10% to 90% (no condensing)
- Dimensions118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
- Installation壁装吗？Applied for 86 & 120 Gang Box
- Weight≤ 0.52 kg (1.1 lb)
- Keypad
DS-K1104M: No keypad
DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
- BuzzerSupport
- Function
- ID Settingsvia DIP Switch
