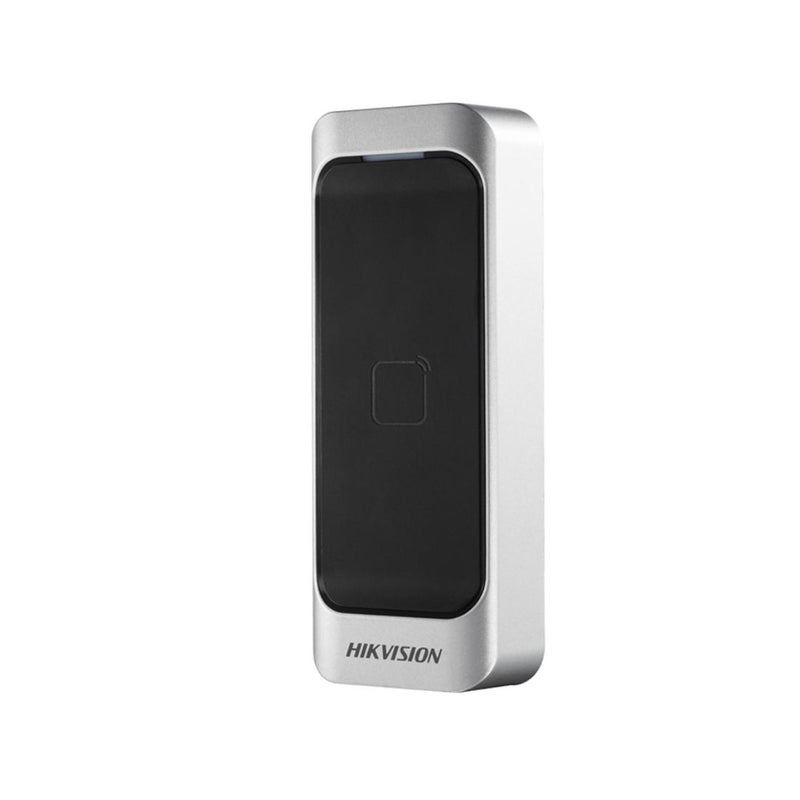

Hikvision Pro Access Control Card Reader
Model: DS-K1107AM
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in Mifare card reading module (Frequency: 13.56 MHz)
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Specifications
- System
- Processor32-bit
- Interface
- TAMPERSupport
- RS-485Support
- WiegandSupport (set via DIP switch)
- Authentication
- Card Reading Frequency13.56 MHz
- Card Reading Distance≤50 mm (≤1.97")
- General
- IndicatorPower indicator, status indicator
- Power Supply12 VDC
- Power Consumption≤2 W
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity10% to 90% (Non Condensing)
- Protective LevelIP65
- Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' )
- InstallationWall Mounting with Screws; Do Not Support Gang Box
- BuzzerSupport
