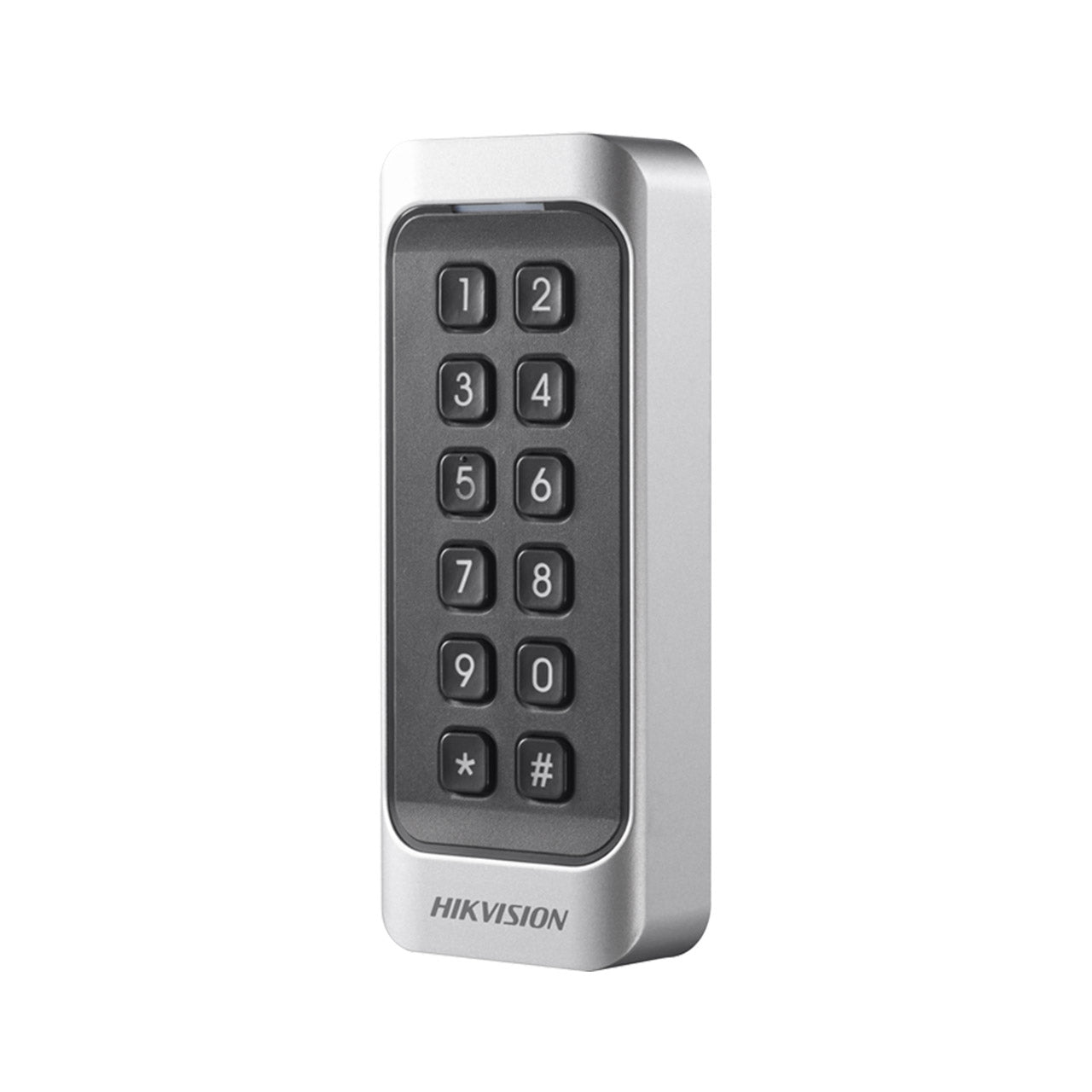

Hikvision Pro Access Control Card Reader with Keypad
Model: DS-K1107AMK
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in M1 card reading module (Frequency: 13.56MHz).
- Keypad
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Specifications
- Interface
- TAMPER1
- RS-4851
- Wiegand1 (set via DIP switch)
- Authentication
- Card Reading Frequency13.56 MHz
- General
- Power Supply12 VDC
- Power Consumption≤ 2 W
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity10% to 90% (no condensing)
- Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- InstallationWall mounting with screws; Do not support gang box
- Weight
Gross weight: 0.25 kg (0.55 lb)
Net weight: 0.16 kg (0.35 lb)
- Keypad12 Keys (0 to 9, *, #)
- BuzzerSupport
