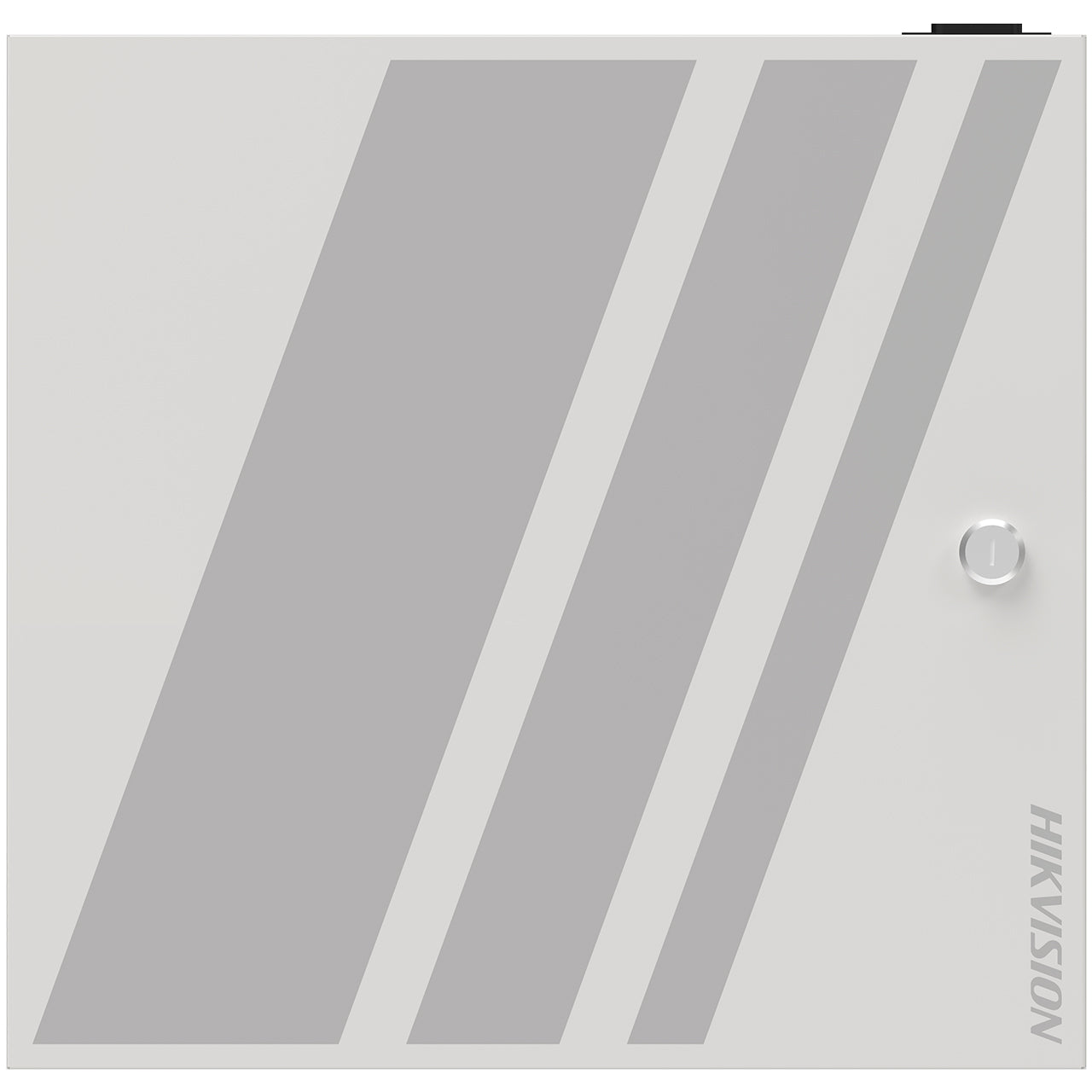

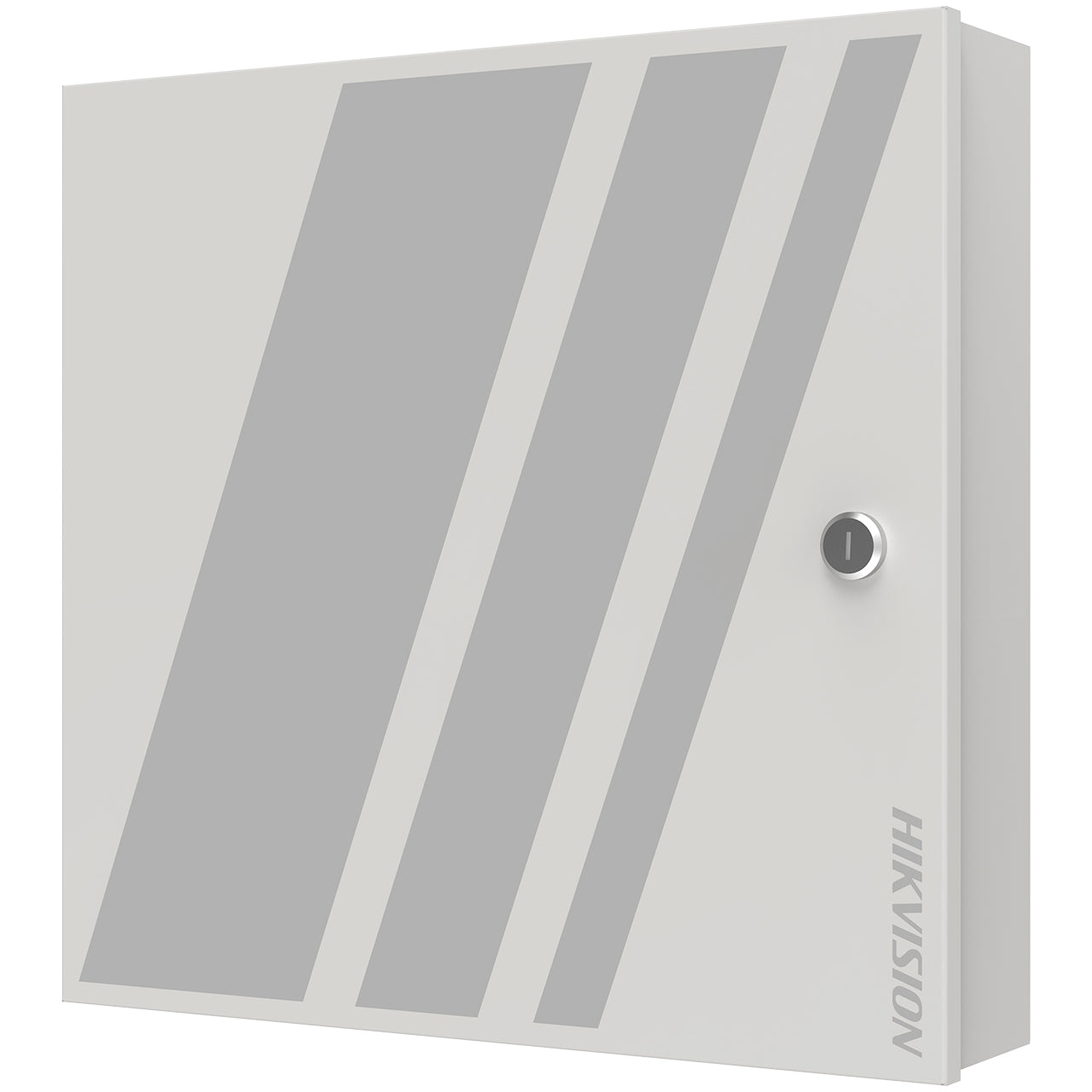

Hikvision Pro Access Controller, 4 Door
Model: DS-K2604T
- Supports multi-door interlocking function, anti-passback function, multi-card function, first person function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blocklist alarm and alarm for invalid card swiping attempts alarm
- Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
- Data can be permanently saved when the access controller is powered off
Specifications
- Interface
- Network InterfaceTCP/IP
- Lock Control4
- Exit Button4
- Door Contact Input4
- General
- Power Supply12 VDC, 1 A
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Power Consumption
With load: ≤ 100 w
Without load: ≤ 4 w
- Working Humidity10% to 90% (no condensing)
- Dimensions373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
