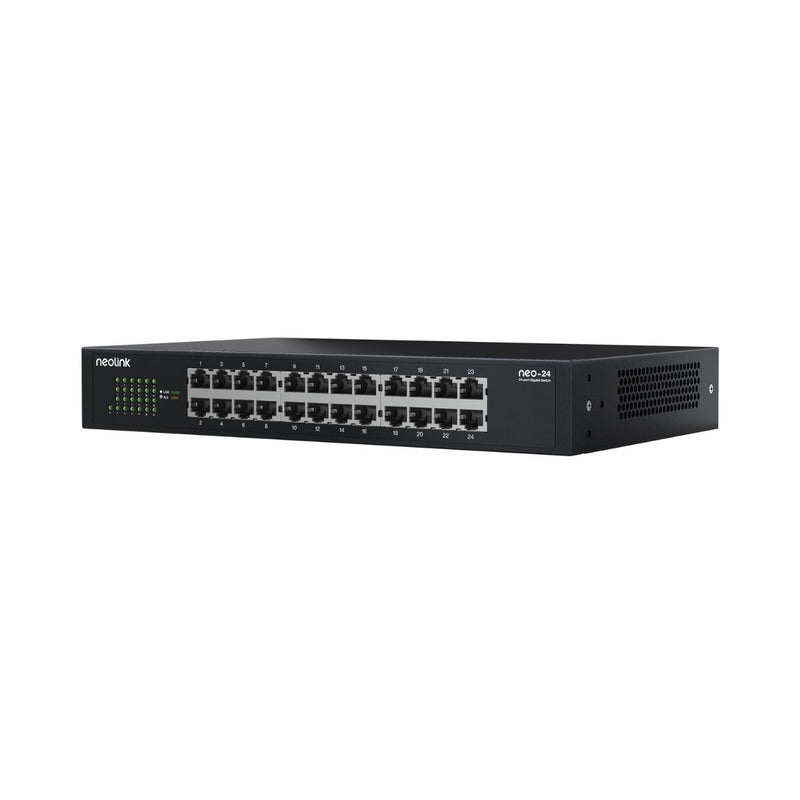

Neolink 24-Port Gigabit Network Switch, Metal, Fanless
- 24x Gigabit 1000 Mbps Ports
- Galvanized Steel Casing: For heat dissipation & durability
- Rack Mountable
Overview
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, the switch forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion to make switch work reliably.
Simply Plug 'n' Play
The auto detect features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
All-In-One
A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting.
Specifications
- Gigabit Ports: 24
- Forwarding Mode: Store-and-forward
- Bandwidth: 48 Gbps (non-blocking)
- Standards: IEEE 802.3ab/u/x
- MAC Address Table: 8K
- Packet Forwarding Rate: 35.60 Mpps
- Buffer Memory: 2 Mb
- Jumbo Frame: 10K
- No Fan, Silent
- Rack Mountable Galvanized Steel Casing
- Protection: Lightning ≥6kV, ESD, Air discharge: ±8kV, Contact discharge: ±4kV
- Each port supports auto MDI/MDIX, auto-negotiation of duplex mode and rate
- Supports flow control in IEEE 802.3x full duplex and Backpressure half duplex
- Operating Temperature: -10°C ~ 45°C (14F ~ 113F)
- Power: AC 100-240V
- Power consumption: <15.2W
- Dimensions (W x D x H): 297 x 178 x 44 mm
What's Included
- Quick User's Guide
- Rackmount Brackets
- UK Power Cable
