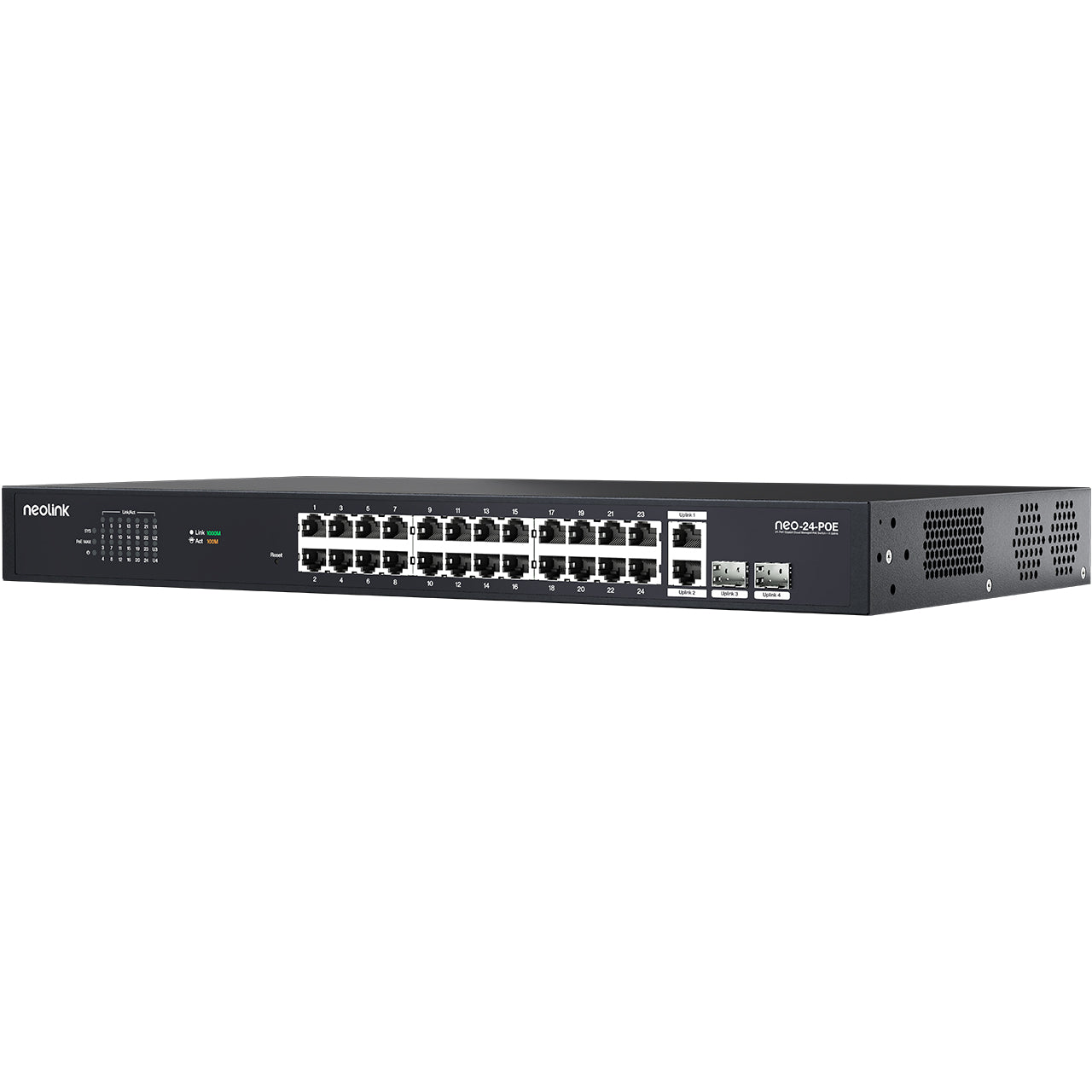

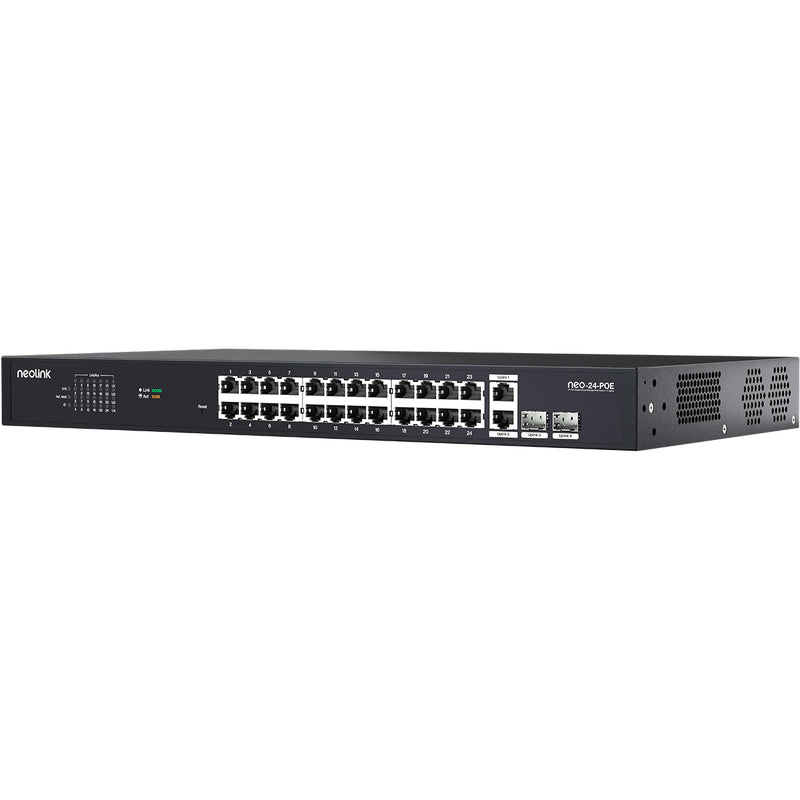

Neolink 24-Port PoE+ Cloud Managed Gigabit Network Switch, Metal, 410W
Model: NEO-24-POE
- 410W 250m PoE+: 802.3af/at up to 30W each port
- 28-Ports with 24x PoE+, 2x RJ45 & 2x SFP
- Gigabit 1000 Mbps All Ports
- Cloud Level-2 Management by neo App and myneocloud: Remotely control/configure PoE+ ports, Reboot ports/switch, QVLAN & more
- Galvanized Steel Casing: For heat dissipation & durability
- Rack Mountable
- VLAN: 802.1Q
- PoE Watchdog & PoE Schedule
- Port Mirroring: N: 1
- Loop Guard
Specifications
- Gigabit Ports: 24x PoE+ with 2x RJ45 & 2x SFP Uplink
- Forwarding Mode: Store-and-forward
- Bandwidth: 56 Gbps (non-blocking)
- Standards: IEEE 802.3ab/u/x/z, IEEE 802.1d/p/q/w
- PoE Standards: IEEE 802.3af/at
- MAC Address Table: 8K
- Packet Forwarding Rate: 41.70 Mpps
- Buffer Memory: 4 Mb
- Jumbo Frame: 10K
- Rack Mountable Galvanized Steel Casing
- Protection: Lightning ≥6kV, ESD, Air discharge: ±8kV, Contact discharge: ±6kV
- Cloud Management: PoE configuration & control, Status, Web/APP & more
- MAC Address Binding
- VLAN: 802.1Q
- Port Aggregation: Static/Dynamic
- Port Mirroring: N: 1
- QoS: First-In, First-Out; Strictly Priority; Weighted Priority
- DHCP Snooping
- PoE Watchdog & PoE Schedule
- Spanning Tree: IEEE 802.1w RSTP
- Loop Guard
- Each port supports auto MDI/MDIX, auto-negotiation of duplex mode and rate
- Supports flow control in IEEE 802.3x full duplex and Backpressure half duplex
- Operating Temperature: -10°C ~ 45°C (14F ~ 113F)
- 1x Fan
- Power: AC 100-240V
- Power consumption: <424W (with PoE)
- Dimensions (W x D x H): 440 x 240 x 44 mm
