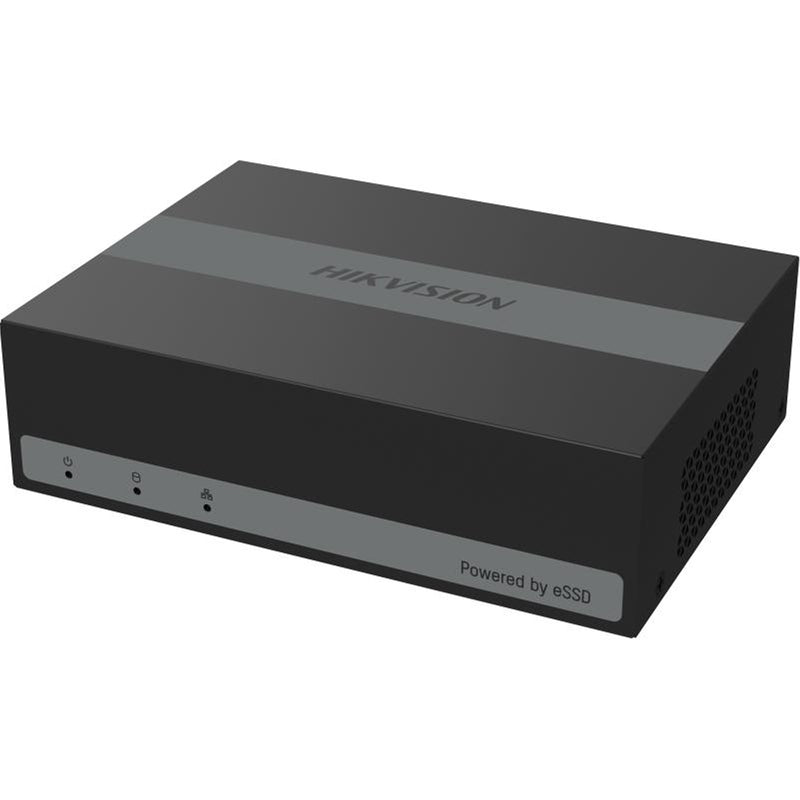

Hikvision 4-Channel DVR up to 8MP, Audio Over Coax, AcuSense, eSSD 1TB Built-in, HUHI Series
- Powered by eSSD technology
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Deep learning-based perimeter protection
- Scene-adaptive bitrate control video compression
- Up to 8 MP@8 fps encoding capability
- Low power consumption
- Audio via coaxial cable
Specifications
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
- Video and Audio
- IP Video Input
2-ch
Up to 8 MP resolution
Support H.265 IP cameras
- Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12.5 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
- AHD Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS InputSupport
- HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input4-ch via coaxial cable
- Audio Output1-ch via HDMI
- Synchronous Playback4-ch
- Recording
- Video CompressionH.265 Pro/H.265
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
- Stream Type
Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth
96 Mbps
Incoming bandwidth: 8 Mbps
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- Capacity
Built-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
- Alarm In/OutOPTIONAL 4/1
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1 A
- Consumption≤ 7.5 W (with eSSD)
- Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)151 × 121× 46 mm (5.94 × 4.76 × 1.81 inch)
- ≤ 0.5 kg (with eSSD, 1.1 lb.)
