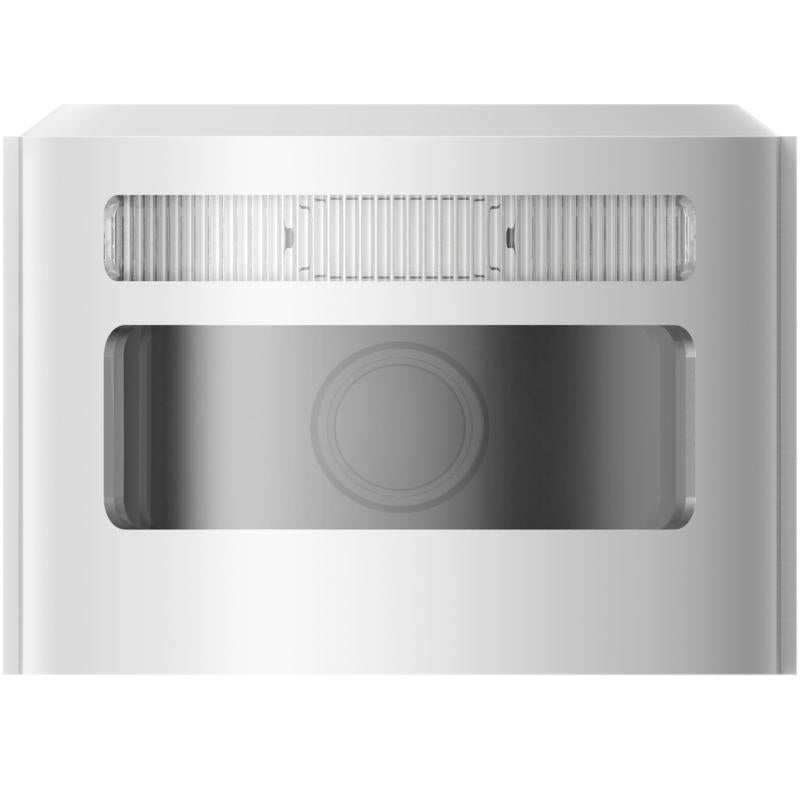

Hikvision AX PRO Wireless Camera to attach to Outdoor PIR
Model: DS-PDCM15PF-IR
- 1/2.7" Progressive Scan CMOS
- 2.0 mm fixed lens
- 3D Digital Noise Reduction
- Easy Installation
- The direction of the Angle can be adjusted to fit the TT Detector's Angle
- Protection Level IP66
Specifications
- Detection Performance
- Detection MethodVideo Verification
- Feature
- Digital Noise Reduction3D
- Focal length2.0mm@F2.25
- Video
- Field Angle137.2°(H), 80.1°(V)
- Image TypeJPEG
- Resolusion640*480;320*240;160*120
- Fill LightInfrared Light
- Fill Range15m
- Day/Night SwitchAuto
- Interface
- Communication Interface1 12-Bit Data Interface
- Electrical Characteristics
- Power Supply3 VDC
- Power Consumption1200mA
- General
- Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity10% to 90%
- IP RateIP66
- Dimension(WxHxD)74.1mm x 72.35mm x 53mm
- Weight155g
