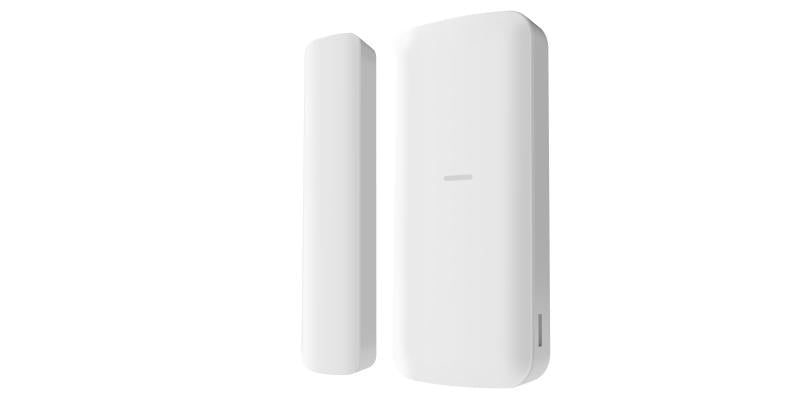

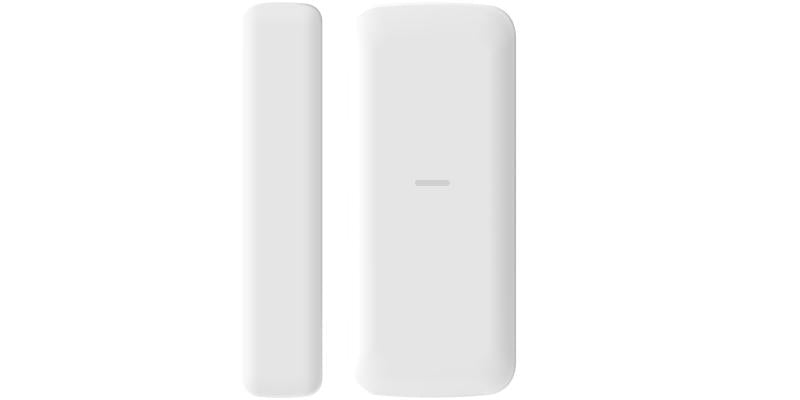

Hikvision AX PRO Wireless Door Contact
Model: DS-PDMCS-EG2-WE
- Slim design for an unobtrusive (unnoticeable) installation
- Fully remote configurable through APP
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Specifications
- Detection Performance
- Detection MethodOpening Contact
- Detection Gap52 mm Max
- Feature
- Digital ProcessingSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
- Interface
- Power SwitchPower up enrolling
- LED IndicatorBlue (alarm)
- Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency868MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery Life
Up to 3 years (standby time)
- Power SupplyBattery powered
- Battery TypeCR2450 x 1
- Typical Voltage3V
- General
- Operation Temperature-10°C to 55°C (14°F to 131°F)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)
29 mm × 69 mm × 10 mm
14 mm × 69 mm × 10 mm
- Weight38 g
- Mounting MethodWall-mount (The device only supports wooden structure installation and cannot be installed on metal surface)
- Application ScenarioIndoor
