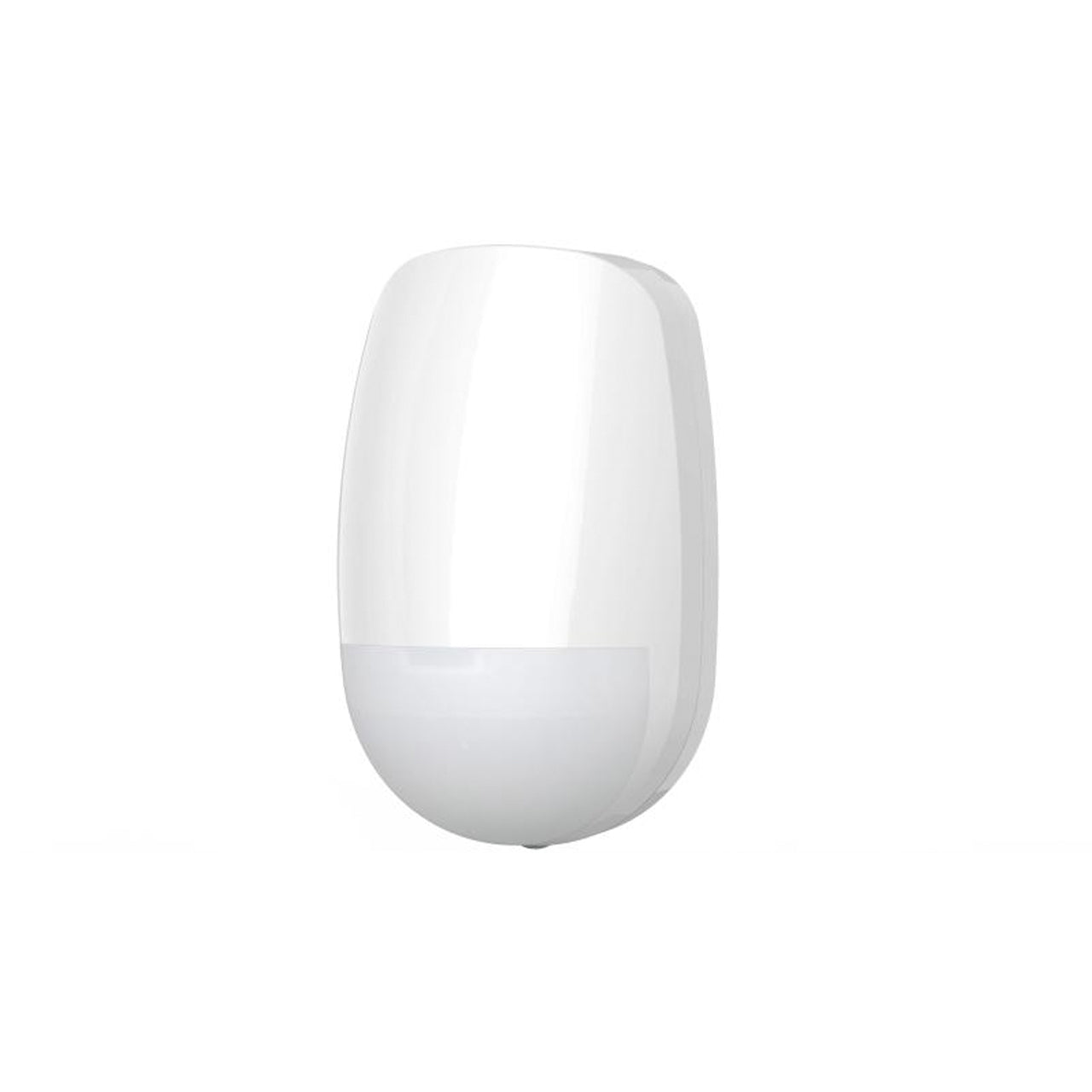

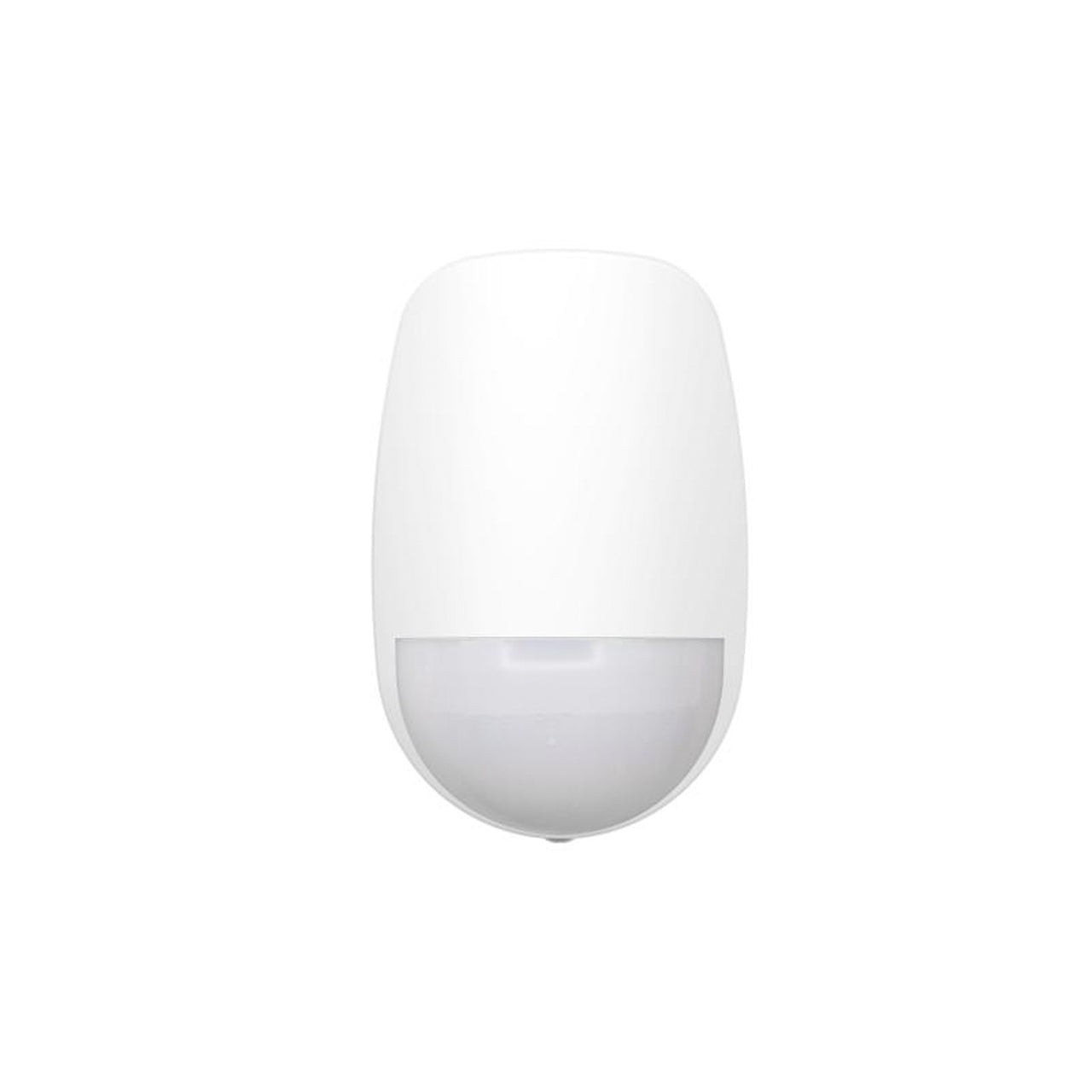

Hikvision AX PRO Wireless PIR
Model: DS-PDP15P-EG2-WE(B)
- Detection Range: 15m/85.9°
- Up to 30 kg pet immunity
- SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
- Fully remote configurable through APP
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Specifications
- Detection Performance
- Detection MethodPassive Infrared
- Detection Range15m
- Detection Angle90°
- Detection Zones84
- Detectable Speed0.3～2m/s
- SensitivityHigh;Auto;Pet
- Pet Immunity30Kg
- White Light Filter6500lux
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
- Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
- Interface
- Power SwitchPower Up Enrolling
- LED IndicatorBlue (Alarm)
- Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency868MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1.6Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery LifeUp to 5 years (standby time)
- Power SupplyBattery Powered
- Battery TypeCR123A × 1
- Typical Voltage3V
- General
- Operation Temperature-10°C to 55°C (14 °F to 131 °F)
- Storage Temperature-20°C to 60°C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)65.5 mm × 103 mm × 48.5 mm
- Weight128 g
- Mounting Height1.8 m to 2.4 m
- Mounting MethodWall
- Application ScenarioIndoor
- BracketOptional Wall & Ceiling Accessory
