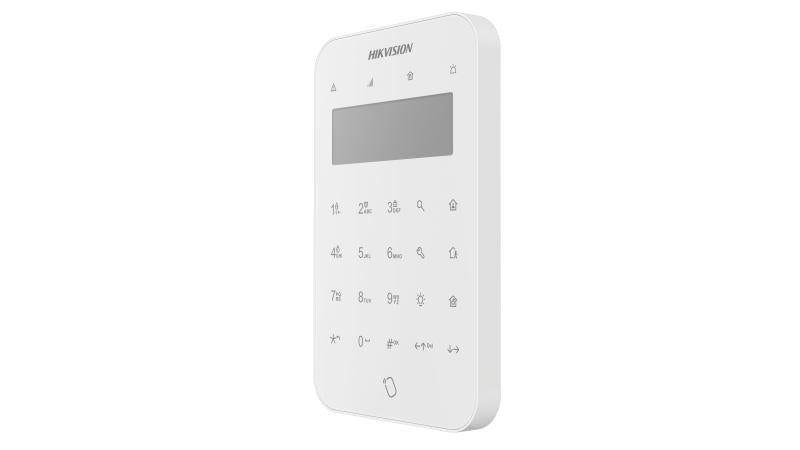

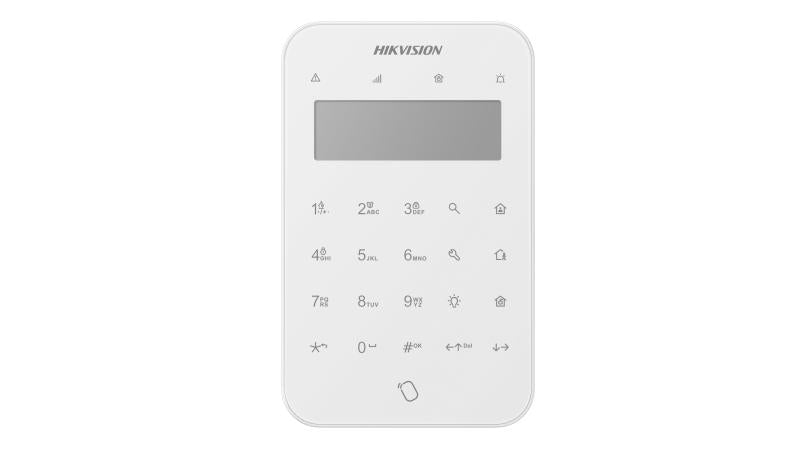

Hikvision AX PRO Wireless Keypad with Display
Model: DS-PK1-LT-WE
- 868MHz two-way wireless communication
- LCD screen and LED to indicate system status
- System configuration through LCD screen
- Multiple operations like stay/away arm, disarm, silent alarm, output control
- One-Push fire alarm, panic alarm, and medical alarm
- Full touch key design with LED backlight
- Fully remote configurable through App
Specifications
- Hardware features
- Tag reader built inSupported
- Serial port3
- Tamper-ProofSupported, front and rear
- BuzzerSupported
- Power switchPower on/off
- Electrical characteristics
- Battery typeFour CR123 batteries
- Operation humidity10% to 90%
- Operation temperature-10 °C to 55 °C
- Battery life spanUp to 2 years (standby time)
- Power consumption
Quiescent current: 80uA
Max current: 300mA
Voltage: 3v
- Wireless transmission
- RF frequency868 MHz
- RF modulation2GFSK
- RF distance1200m (open area)
- Wireless technologyTri-X Wireless Technology
- Display
- Numeric key
Number key: 0-9
Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left
- LED IndicatorFault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red)
- General
- Installation methodWall-mounting
- Dimension(WxHxD)174.63 mm × 109.62 mm × 25.25 mm
- Weight
With batteries: 348 g
Without batteries: 282 g
- ColorWhite
