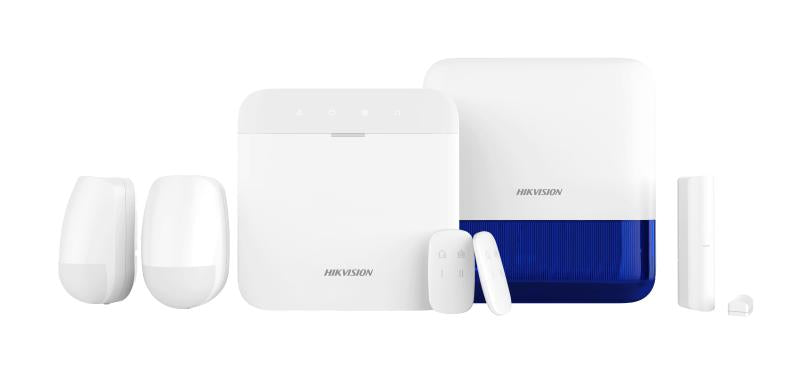

Hikvision AX PRO Wireless Alarm Kit with 2 PIR, 1 Door, 2 Remote, 1 Siren
Model: DS-PWA64-Kit1-WE
- DS-PWA64-L-WE x 1
- DS-PKF1-WE x 2
- DS-PS1-E-WE (Blue) x 1
- DS-PDP15P-EG2-WE x 2
- DS-PDMC-EG2-WE x 1
Specifications
- Software features
- Tag32
- Area16
- Zones64 (up to 48 PIRCAMs)
- Installer1
- User30
- Admin1
- Voice PromptSupported
- Loudspeaker built inSupported
- Memory Log stored5000
- Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware upgradeAPP/Web Portal
- Arm modesAway/Stay
- Automatic Arm/Disarm TimersSupported
- Forced Arming with Open ZonesSupported
- Diagnostics via the APP or WebSupported
- ARC protocol
SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
Supports video verification and remote control
- User APP for operatingSupported
- Installer APP for programmingSupported
- Web server for maintenance (offline configuration)Supported
- Hardware features
- RS232 outputSupported
- SIM slotSingle
- RF transmission
- RF Frequency868Mhz
- Wireless SecurityFrequency Hoping 128 AES Encryption
- GPRS on boardSupported
- Electrical characteristics
- Power supplyBuilt in power supply
- Battery typeBuilt in on board Battery Li
- Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- Wired networkSupported
- Wi-Fi StandardSupported
- Display
- LEDs StatusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- General
- Operation temperature-10 °C to +55 °C
- Shell materialPlastic
- Dimension(WxHxD)170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
- Weight557.5 g(19.7 oz)
- ColorWhite
- Device management
- Keyfob32
- Wireless sounder4 (2 internal+2 External)
- Keypad8 (Including Tag reader)
- Wireless Repeater2
- Multi Transmitter4
- PIR CamSupported
