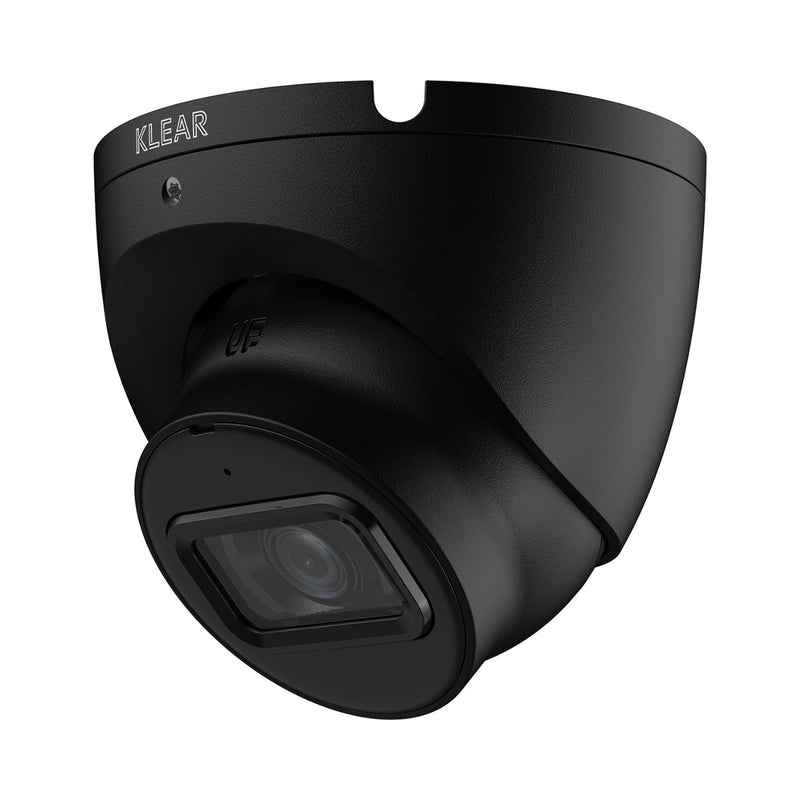

Klear 5MP IP Eyeball, 30m IR & Audio
Model: K-503 E A IP B
- 1/2.7" 5MP 2880x1620 Progressive CMOS Sensor
- IR up to 30m
- Built-in Microphone
- 2.8mm Fixed Lens, Horizontal FOV 106°
- 0.03 Lux @ F2.0 (Colour); 0.003 Lux @ F2.0 (B/W)
- IP67, H.265+
Specifications
| Camera | ||||||
| Image Sensor | 1/2.7" CMOS | |||||
| Max. Resolution | 2880 (H) × 1620 (V) | |||||
| ROM | 16 MB | |||||
| RAM | 128 MB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |||||
| Min. Illumination | 0.03 Lux@F2.0 (Color, 30 IRE) | |||||
| 0.003 Lux@F2.0 (B/W, 30 IRE) | ||||||
| 0 Lux (Illuminator on) | ||||||
| S/N Ratio | > 56 dB | |||||
| Illumination Distance | 30 m (98.43 ft) (IR) | |||||
| Illuminator On/Off Control | Auto/Manual | |||||
| Illuminator Number | 1 (IR LED) | |||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | |||||
| Tilt: 0°–90° | ||||||
| Rotation: 0°–360° | ||||||
| Lens | ||||||
| Lens Type | Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Focal Length | 2.8 mm; 3.6 mm | |||||
| Max. Aperture | 2.8 mm: F2.0 | |||||
| 3.6 mm: F2.0 | ||||||
| Field of View | 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125° | |||||
| 3.6 mm: Horizontal: 92°; Vertical: 48°; Diagonal: 109° | ||||||
| Iris Control | Fixed | |||||
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) | |||||
| 3.6 mm: 1.3 m (4.27 ft) | ||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | |
| 2.8 mm | 56.0 m | 22.4 m | 11.2 m | 5.6 m | ||
| (183.73 ft) | (73.49 ft) | (36.75 ft) | (18.37 ft) | |||
| 3.6 mm | 76.0 m | 30.4 m | 15.2 m | 7.6 m | ||
| (249.34 ft) | (99.74 ft) | (49.87 ft) | (24.93 ft) | |||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
| ||||||
| Video | ||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | |||||
| Smart Codec | Smart H.265+; Smart H.264+ | |||||
| Video Frame Rate | Main stream: | |||||
| 2880 × 1620 (1 fps–20 fps) | ||||||
| 2688 × 1520 (1 fps–25/30 fps) | ||||||
| Sub stream: | ||||||
| 704 × 576 (1 fps–25 fps) | ||||||
| 704 × 480 (1 fps–30 fps) | ||||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||
| Stream Capability | 2 streams | |||||
| Resolution | 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440(2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |||||
| Bit Rate Control | CBR/VBR | |||||
| Video Bit Rate | H.264: 32 kbps–6144 kbps | |||||
| H.265: 12 kbps–6144 kbps | ||||||
| Day/Night | Auto(ICR)/Color/B/W | |||||
| BLC | Yes | |||||
| HLC | Yes | |||||
| WDR | DWDR | |||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | |||||
| Gain Control | Auto; manual | |||||
| Noise Reduction | 3D NR | |||||
| Motion Detection | OFF/ON (4 areas, rectangular) | |||||
| Region of Interest (RoI) | Yes (4 areas) | |||||
| Smart Illumination | Yes | |||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | |||||
| Mirror | Yes | |||||
| Privacy Masking | 4 areas | |||||
| Audio | ||||||
| Built-in MIC | Yes | |||||
| Audio Compression | G.711a; G.711Mu; G.726; PCM | |||||
| Alarm | ||||||
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception | |||||
| Network | ||||||
| Network Port | RJ-45 (10/100 Base-T) | |||||
| SDK and API | Yes | |||||
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade | |||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast | |||||
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone | |||||
| User/Host | 6 (Total bandwidth: 48 M) | |||||
| Storage | FTP | |||||
| Browser | IE | |||||
| Chrome | ||||||
| Firefox | ||||||
| Management Software | Smart PSS; DSS; DMSS | |||||
| Mobile Client | IOS; Android | |||||
| Certification | ||||||
| Certifications | CE-LVD: EN62368-1 | |||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | ||||||
| FCC: 47 CFR FCC Part 15, Subpart B | ||||||
| Power | ||||||
| Power Supply | 12V DC/PoE (802.3af) | |||||
| Power Consumption | Basic: 1.9W (12V DC); 2.3W (PoE) | |||||
| Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 3.9W (12V DC); 4.5W (PoE) | ||||||
| Environment | ||||||
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) | |||||
| Operating Humidity | ≤95% | |||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | |||||
| Protection | IP67 | |||||
| Structure | ||||||
| Casing | Metal | |||||
| Product Dimensions | 85.6 mm × Φ94.0 mm (3.4" × Φ3.7") | |||||
| Net Weight | 320 g (0.71 lb) | |||||
| Gross Weight | 450 g (0.99 lb) | |||||
