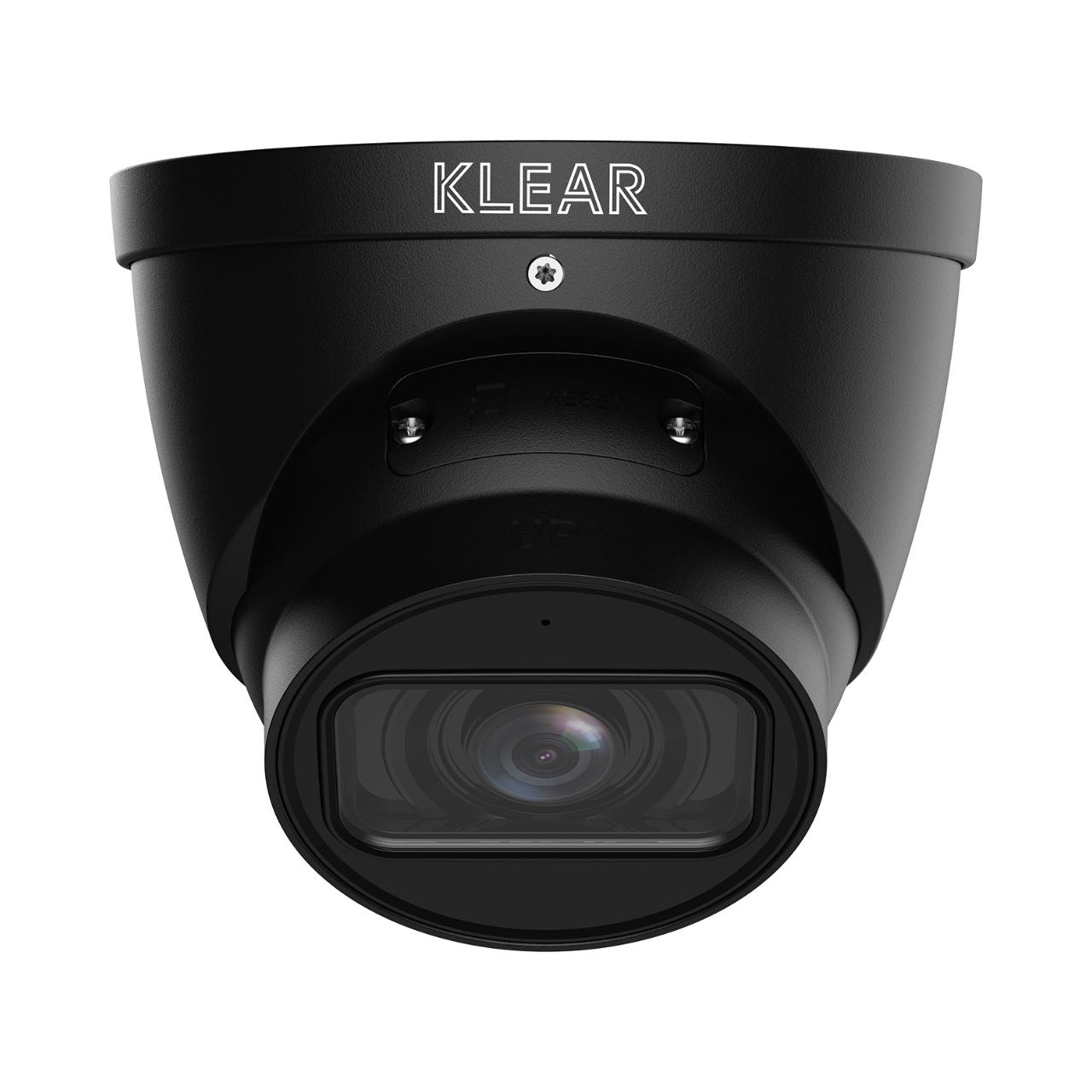

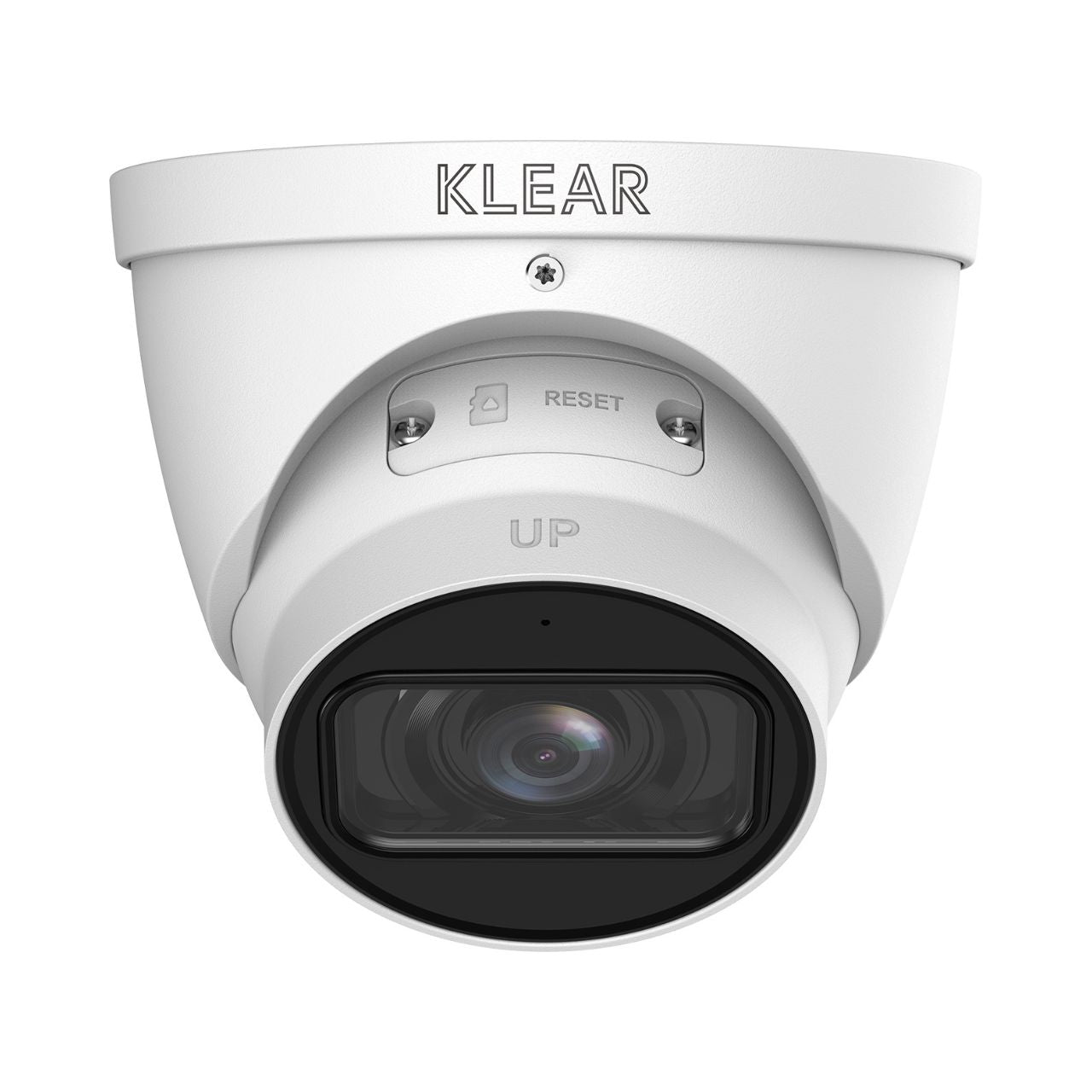

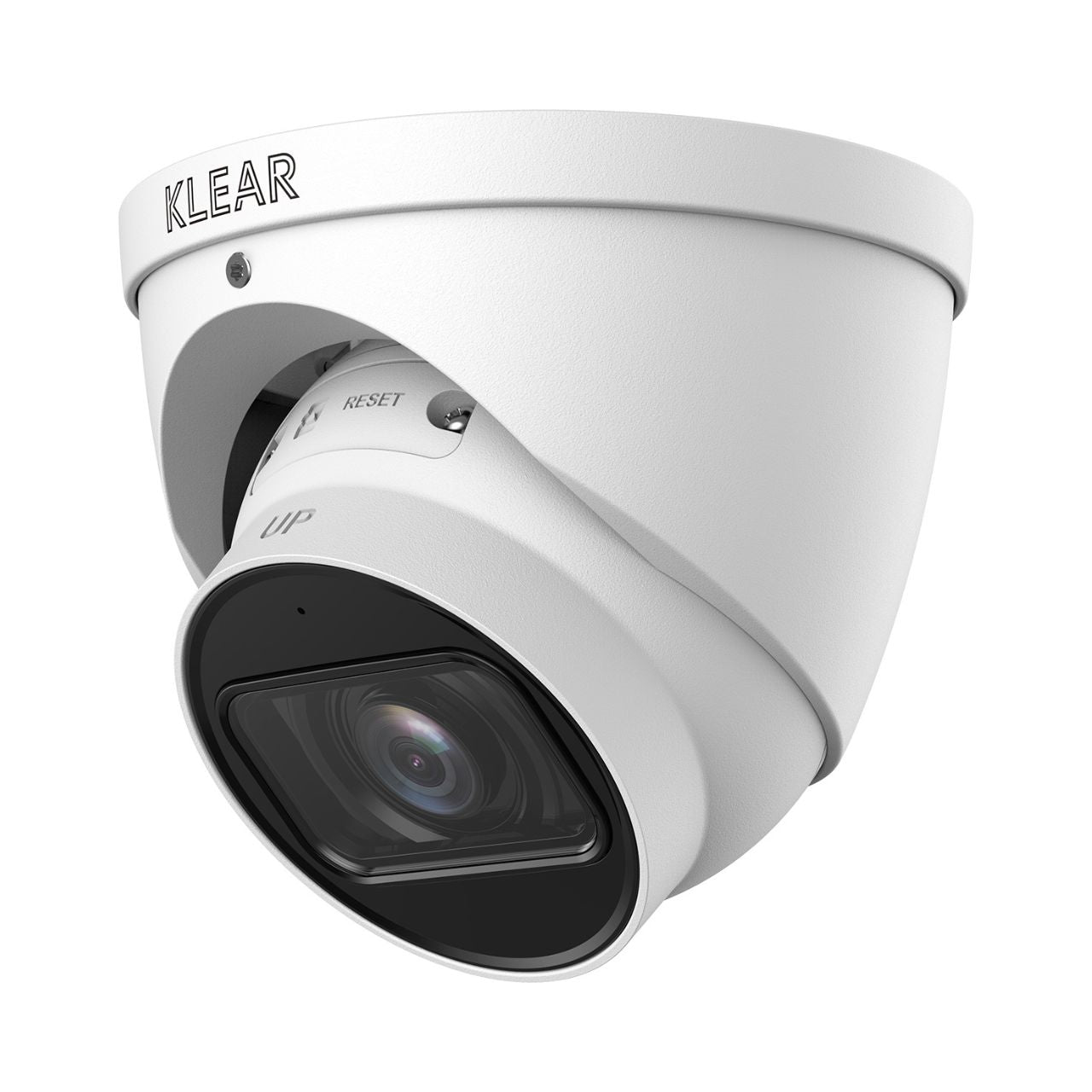

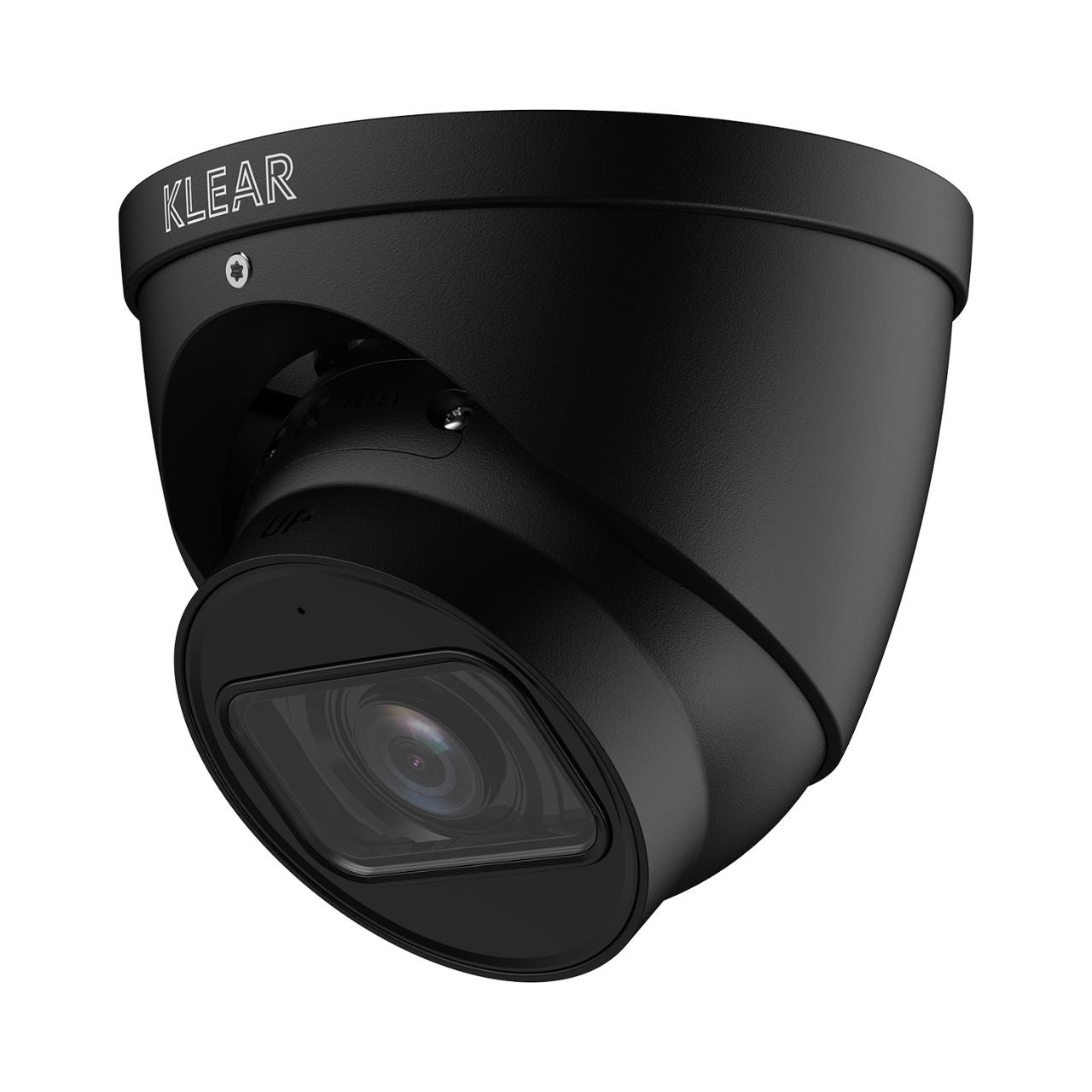

Klear 8MP IP Motorized Eyeball, 50m IR, SMD & Audio
Model: K-805 E A MOT IP
- 1/2.7" 8MP 3840x2160 Progressive CMOS Sensor
- IR up to 50m
- Built-in Microphone
- 2.7-13.5mm Motorized Lens, Horizontal FOV 113°-31°
- 0.008 Lux @ F1.5 (Colour); 0.0008 Lux @ F1.5 (B/W)
- Smart Motion Detection (Human and Vehicle Detection)
- IP67, H.265+
Specifications
| Camera | ||||||
| Image Sensor | 1/2.7" CMOS | |||||
| Max. Resolution | 3840 (H) × 2160 (V) | |||||
| ROM | 128 MB | |||||
| RAM | 256 MB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |||||
| Min. Illumination | 0.008 lux@F1.5 (Color, 30 IRE) | |||||
| 0.0008 lux@F1.5 (B/W, 30 IRE) | ||||||
| 0 lux (Illuminator on) | ||||||
| S/N Ratio | >56 dB | |||||
| Illumination Distance | 50 m (164.04 ft) (IR) | |||||
| Illuminator On/Off Control | Auto; Manual | |||||
| Illuminator Number | 2 (IR LED) | |||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | |||||
| Tilt: 0°–78° | ||||||
| Rotation: 0°–360° | ||||||
| Lens | ||||||
| Lens Type | Motorized vari-focal | |||||
| Lens Mount | φ14 | |||||
| Focal Length | 2.7 mm–13.5 mm | |||||
| Max. Aperture | F1.5 | |||||
| Field of View | H: 113°–31°; V: 58°–18°; D: 138°–36° | |||||
| Iris Control | Fixed | |||||
| Close Focus Distance | 0.8 m (2.62 ft) | |||||
| DORI Distance (Zoomed Out / Zoomed In) | Detect | Observe | Recognize | Identify | ||
| 85.3 m (279.86 ft) | 34.1 m | 17.1 m | 8.5 m | |||
| (111.88 ft) | (56.10 ft) | (27.89 ft) | ||||
| 280.0 m (918.64 ft) | 112.0 m | 56.0 m | 28.0 m | |||
| (367.45 ft) | (183.73 ft) | (97.86 ft) | ||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | ||||||
| Intelligence | ||||||
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | |||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |||||
| Video | ||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | |||||
| Smart Codec | Smart H.265+; Smart H.264+ | |||||
| Video Frame Rate | Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) | |||||
| sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | ||||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||
| Stream Capability | 2 streams | |||||
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |||||
| Bit Rate Control | CBR/VBR | |||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps | |||||
| H.265: 12 kbps–8192 kbps | ||||||
| Day/Night | Auto(ICR)/Color/B/W | |||||
| BLC | Yes | |||||
| HLC | Yes | |||||
| WDR | 120 dB | |||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | |||||
| Gain Control | Auto;Manual | |||||
| Noise Reduction | 3D NR | |||||
| Motion Detection | OFF/ON (4 areas, rectangular) | |||||
| Region of Interest (RoI) | Yes (4 areas) | |||||
| Smart Illumination | Yes | |||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | |||||
| Mirror | Yes | |||||
| Privacy Masking | 4 areas | |||||
| Audio | ||||||
| Built-in MIC | Yes | |||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726 | |||||
| Alarm | ||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception | |||||
| Network | ||||||
| Network Port | RJ-45 (10/100 Base-T) | |||||
| SDK and API | Yes | |||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour | |||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | |||||
| User/Host | 20 (Total bandwidth: 48 M) | |||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS | |||||
| Browser | IE; Chrome; Firefox | |||||
| Management Software | Smart PSS; DSS; DMSS | |||||
| Mobile Client | iOS; Android | |||||
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | |||||
| Certification | ||||||
| Certifications | CE-LVD: EN62368-1; | |||||
| CE-EMC: Electromagnetic Compatibility Directive | ||||||
| 2014/30/EU; | ||||||
| FCC: 47 CFR FCC Part 15, Subpart B; | ||||||
| UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||||
| Power | ||||||
| Power Supply | 12 VDC/PoE (802.3af) | |||||
| Power Consumption | Basic: 2.8 W (12 VDC); 3.6 W (PoE) | |||||
| Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.6 W (PoE) | ||||||
| Environment | ||||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |||||
| Operating Humidity | ≤95% | |||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |||||
| Storage Humidity | ≤95% | |||||
| Protection | IP67 | |||||
| Structure | ||||||
| Casing Material | Metal | |||||
| Product Dimensions | 108.3 mm × Φ122 mm (4.26" × Φ4.80") | |||||
| Net Weight | 0.70 kg (1.54 lb) | |||||
| Gross Weight | 0.88 kg (1.94 lb) | |||||
