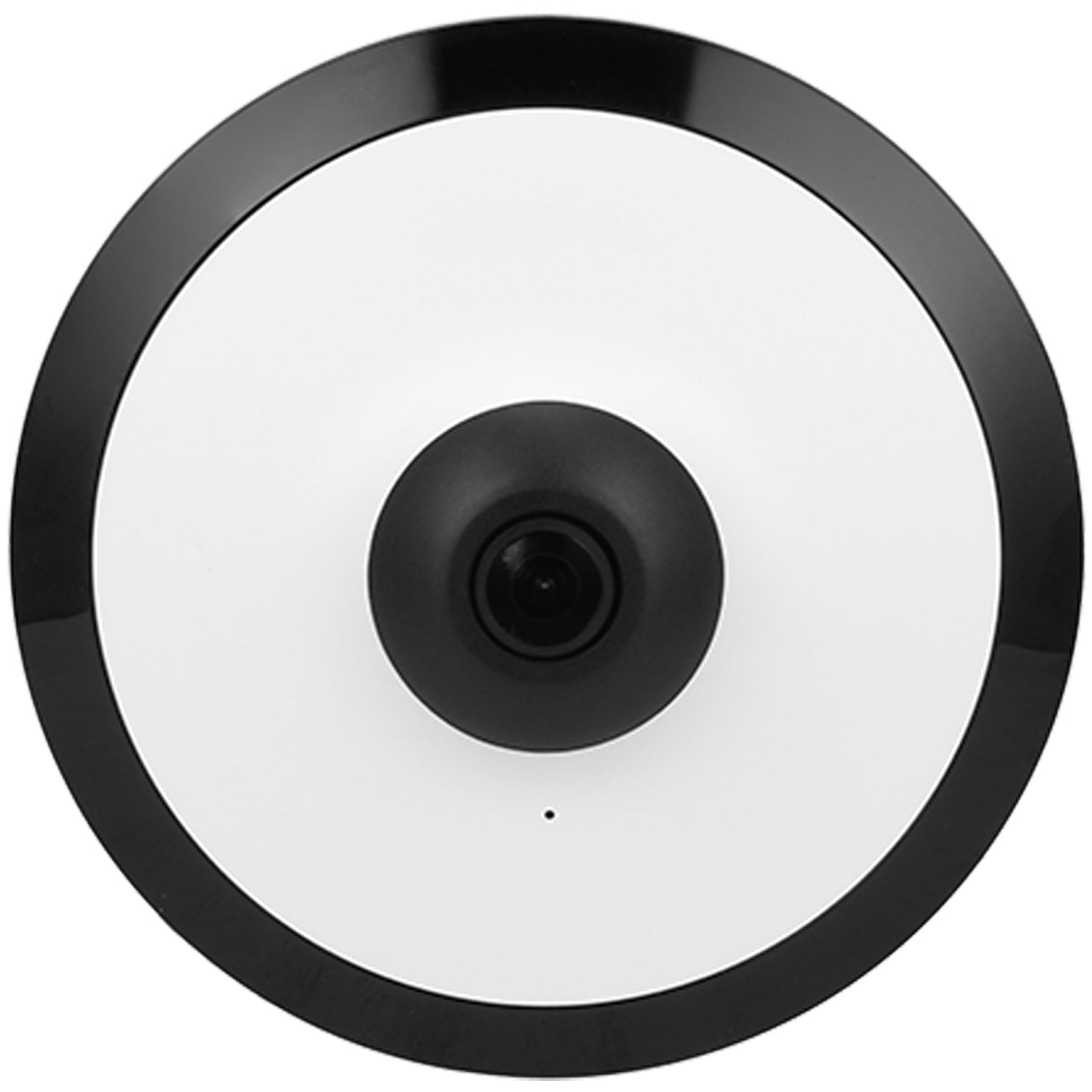

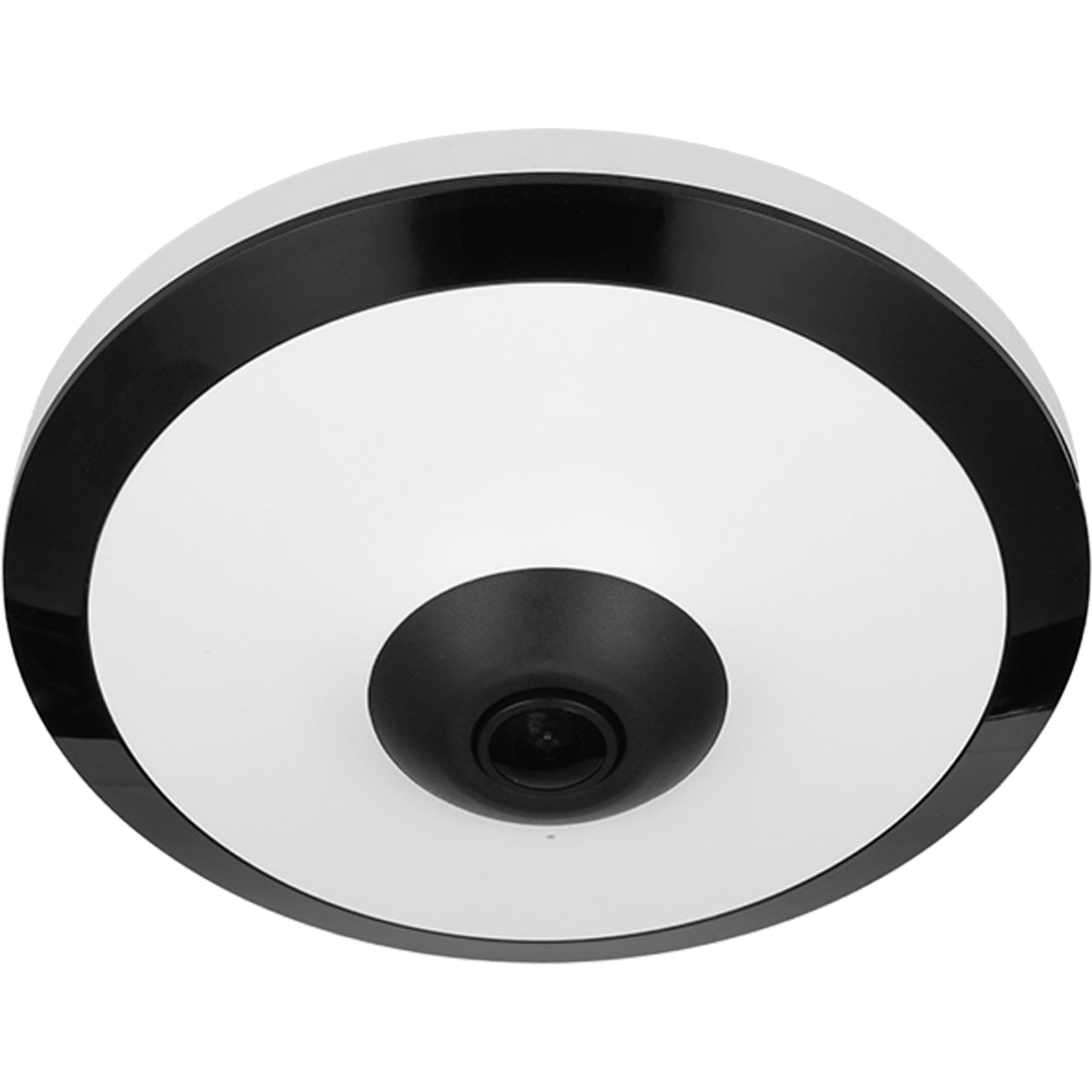

Klear 5MP IP Fisheye, 10m IR, Audio
Model: K-501 FE IP
- 1/2.7" 5MP 2592x1944 Progressive CMOS Sensor
- IR up to 10m
- Built-in Microphone
- 1.4mm Fixed Lens, Horizontal FOV 180°
- 0.006 Lux @ F2.0 (Colour); 0.0006 Lux @ F2.0 (B/W)
- 13 Fisheye Views
- People Counting with alarm linkage trigger at maximum capacity. Export Reports.
- Heat Map
- Indoor use only
- H.265+
Specifications
| Camera | ||||||
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS | |||||
| Max. Resolution | 2592 (H) × 1944 (V) | |||||
| ROM | 128 MB | |||||
| RAM | 512 MB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |||||
| Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE) | |||||
| 0.0006 Lux@F2.0 (B/W, 30IRE) | ||||||
| 0 Lux (Illuminator on) | ||||||
| S/N Ratio | > 56 dB | |||||
| Illumination Distance | 10 m (32.8 ft) | |||||
| Illuminator On/Off Control | Auto/Manual | |||||
| Illuminator Number | 3 (IR LED) | |||||
| Lens | ||||||
| Lens Type | Fixed-focal | |||||
| Mount Type | M12 | |||||
| Focal Length | 1.4 mm | |||||
| Max. Aperture | F2.0 | |||||
| Field of View | Horizontal: 180° | |||||
| Vertical: 180° | ||||||
| Diagonal: 180° | ||||||
| Iris Type | Fixed | |||||
| Close Focus Distance | 0.2 m (0.7 ft) | |||||
| DORI Distance | Detect | Observe | Recognize | Identify | ||
| 28 m | 11.2 m | 5.6 m | 2.8 m | |||
| (91.9 ft) | (36.7 ft) | (18.4 ft) | (9.2 ft) | |||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | ||||||
| Smart Event | ||||||
| Heat Map | Yes | |||||
| Professional, intelligent | ||||||
| IVS (Perimeter Protection) | Tripwire; intrusion | |||||
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas | |||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | |||||
| Fisheye | ||||||
| Installation | Ceiling mount; wall mount; ground mount | |||||
| Decoding Mode | Back-dewarp | |||||
| Display Mode | Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) | |||||
| Video | ||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | |||||
| Smart Codec | Smart H.265+/ Smart H.264+ | |||||
| Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps) | |||||
| sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) | ||||||
| third stream (1280 × 720 @1–25/30 fps) | ||||||
| Stream Capability | 3 streams | |||||
| Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |||||
| Bit Rate Control | CBR/VBR | |||||
| Video Bit Rate | H.264: 3 kbps–8192 kbps | |||||
| H.265: 3 kbps–8192 kbps | ||||||
| Day/Night | Auto (ICR)/Color/B/W | |||||
| BLC | Yes | |||||
| HLC | Yes | |||||
| WDR | 120 dB | |||||
| Scene Self-adaptation (SSA) | Yes | |||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |||||
| Gain Control | Auto/Manual | |||||
| Noise Reduction | 3D DNR | |||||
| Motion Detection | OFF/ON (4 areas) | |||||
| Region of Interest (RoI) | Yes (4 areas) | |||||
| Smart Illumination | Yes | |||||
| Privacy Masking | 4 areas | |||||
| Audio | ||||||
| Built-in MIC | Yes | |||||
| Audio Compression | PCM; G.711a; G.711Mu; G726 | |||||
| Alarm | ||||||
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception | |||||
| Network | ||||||
| Network | RJ-45 (10/100 Base-T) | |||||
| SDK and API | Yes | |||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP | |||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | |||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | |||||
| User/Host | 20 (Total bandwidth: 64 M) | |||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | |||||
| Browser | IE: IE8, IE9 and IE11 | |||||
| Chrome | ||||||
| Firefox | ||||||
| Management Software | Smart PSS; DSS; DMSS | |||||
| Mobile Phone | IOS; Android | |||||
| Certification | ||||||
| Certification | CE-LVD: EN62368-1 | |||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | ||||||
| FCC: 47 CFR FCC Part 15, Subpart B | ||||||
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | ||||||
| Port | ||||||
| Audio Input | 1 channel (RCA port) | |||||
| Audio Output | 1 channel (RCA port) | |||||
| Alarm Input | 1 channel in: 5mA 3V–5V DC | |||||
| Alarm Output | 1 channel out: 300mA 12V DC | |||||
| Power | ||||||
| Power Supply | 12V DC/PoE | |||||
| Power Consumption | Basic power consumption: 3.6W (12V DC); 4.4W (PoE) | |||||
| Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE) | ||||||
| Environment | ||||||
| Operating Conditions | –10°C to +50°C (14°F to +122°F)/Less than 95% RH | |||||
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) | |||||
| Structure | ||||||
| Casing | Metal + plastic | |||||
| Dimensions | 44.6 mm × Φ126.2 mm (1.8" × Φ5.0") | |||||
| Net Weight | 299 g (0.7 lb) | |||||
| Gross Weight | 441 g (1.0 lb) | |||||
==>
