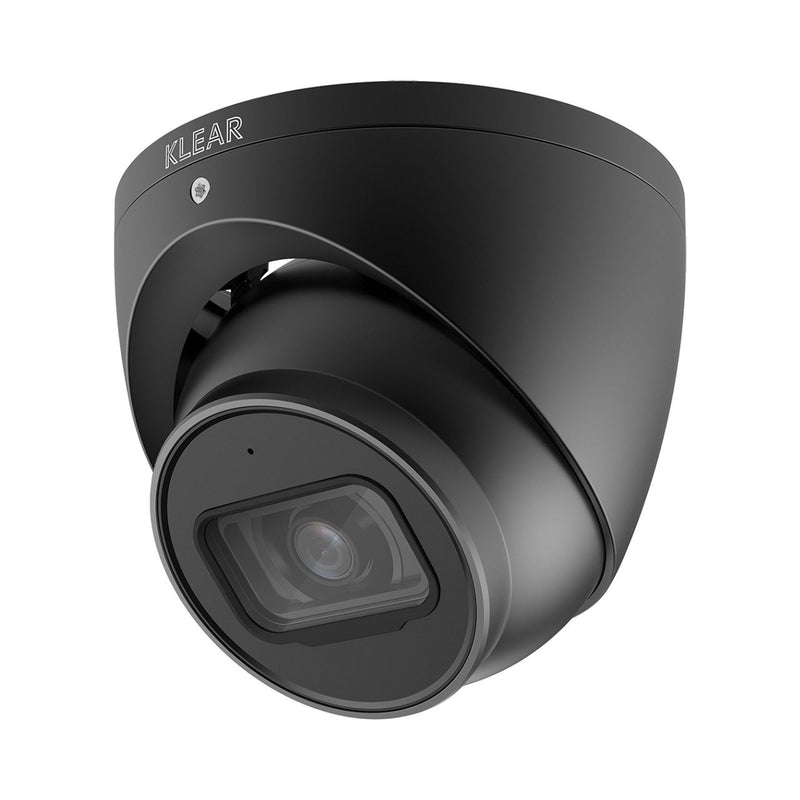

Klear 5MP IP Eyeball, 50m IR, SMD 4.0 & Audio
Model: K-505 E A IP B
- 1/2.7" 5MP 2960x1688 Progressive CMOS Sensor
- IR up to 50m
- Built-in Microphone
- 2.8mm Fixed Lens, Horizontal FOV 97°
- 0.005 Lux @ F1.4 (Colour); 0.0005 Lux @ F1.4 (B/W)
- Smart Motion Detection (Human and Vehicle Detection)
- QuickPick in Live/Playback: highlight your Human/Vehicle target and search will be based on clothing/vehicle colour
- IP67, H.265+
Specifications
| Camera | ||||||
| Image Sensor | 1/2.7" CMOS | |||||
| Max. Resolution | 2960 (H) × 1668 (V) | |||||
| ROM | 128 MB | |||||
| RAM | 512 MB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |||||
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) | |||||
| 0.0005 lux@F1.4 (B/W, 30 IRE) | ||||||
| 0 lux (Illuminator on) | ||||||
| S/N Ratio | >56 dB | |||||
| Illumination Distance | Up to 50 m (164.04 ft) | |||||
| Illuminator On/Off Control | Auto/Manual | |||||
| Illuminator Number | 2 (IR LED) | |||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° | |||||
| Lens | ||||||
| Lens Type | Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Focal Length | 2.8 mm | |||||
| Max. Aperture | F1.4 | |||||
| Field of View | 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129° | |||||
| Iris Control | Fixed | |||||
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft) | |||||
| 3.6 mm: 1.7 m (5.58 ft) | ||||||
| 6 mm: 3.3 m (10.83 ft) | ||||||
| DORI Distance | Detect | Observe | Recognize | Identify | ||
| 63.6 m | 25.4 m | 12.7 m | 6.4 m | |||
| (208.66 ft) | (83.33 ft) | (41.67 ft) | (21.00 ft) | |||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | ||||||
| Intelligence | ||||||
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) | |||||
| AI SSA | Yes | |||||
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events | |||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |||||
| Video | ||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | |||||
| Smart Codec | Smart H.265+ | |||||
| Smart H.264+ | ||||||
| AI Coding | AI H.265 | |||||
| AI H.264 | ||||||
| Video Frame Rate | Main stream: 2880 × 1620 @ (1–20) fps / | |||||
| 2960 × 1668 @ (1–20) fps / | ||||||
| 2688 × 1520@ (1–25/30 fps) | ||||||
| Sub stream 1: 704 × 576 @ (1–25 fps)/ | ||||||
| 704 × 480 @ (1–30 fps) | ||||||
| Sub stream 2: 1920 × 1080 @ (1–25/30 fps) | ||||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity | ||||||
| Stream Capability | 3 streams | |||||
| Resolution | 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) | |||||
| Bit Rate Control | CBR/VBR | |||||
| Video Bit Rate | H.264: 3 kbps–8192 kbps | |||||
| H.265: 3 kbps–8192 kbps | ||||||
| Day/Night | Auto (ICR)/Color/B/W | |||||
| BLC | Yes | |||||
| HLC | Yes | |||||
| WDR | 120 dB | |||||
| Scene Self-adaptation (SSA) | Yes | |||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | |||||
| Gain Control | Auto | |||||
| Noise Reduction | 3D NR | |||||
| Motion Detection | OFF/ON (4 areas, rectangular) | |||||
| Region of Interest (RoI) | Yes (4 areas) | |||||
| Defog | Yes | |||||
| AFSA | Yes | |||||
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) | |||||
| Mirror | Yes | |||||
| Privacy Masking | 4 areas | |||||
| Audio | ||||||
| Built-in MIC | Yes | |||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | |||||
| Alarm | ||||||
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception | |||||
| Network | ||||||
| Network Port | RJ-45 (10/100 Base-T) | |||||
| SDK and API | Yes | |||||
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP | |||||
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade | |||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | |||||
| User/Host | 20 (Total bandwidth: 64 M) | |||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | |||||
| Browser | IE:IE11 | |||||
| Chrome | ||||||
| Firefox | ||||||
| Management Software | Smart PSS; DSS; DMSS | |||||
| Mobile Client | iOS; Android | |||||
| Certification | ||||||
| Certifications | CE-LVD: EN62368-1; | |||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; | ||||||
| FCC: 47 CFR FCC Part 15, Subpart B; | ||||||
| UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||||
| Power | ||||||
| Power Supply | 12 VDC/PoE (802.3af) | |||||
| Power Consumption | Basic: 4.3 W (12 VDC); 4.9 W (PoE) | |||||
| Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE) | ||||||
| Environment | ||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH) | |||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) | |||||
| Protection | IP67 | |||||
| Structure | ||||||
| Casing | Metal | |||||
| Product Dimensions | 93.6 mm × Φ106.0 mm (3.69" × Φ4.17") | |||||
| Net Weight | 500 g (1.10 lb) | |||||
| Gross Weight | 770 g (1.70 lb) | |||||
==>
