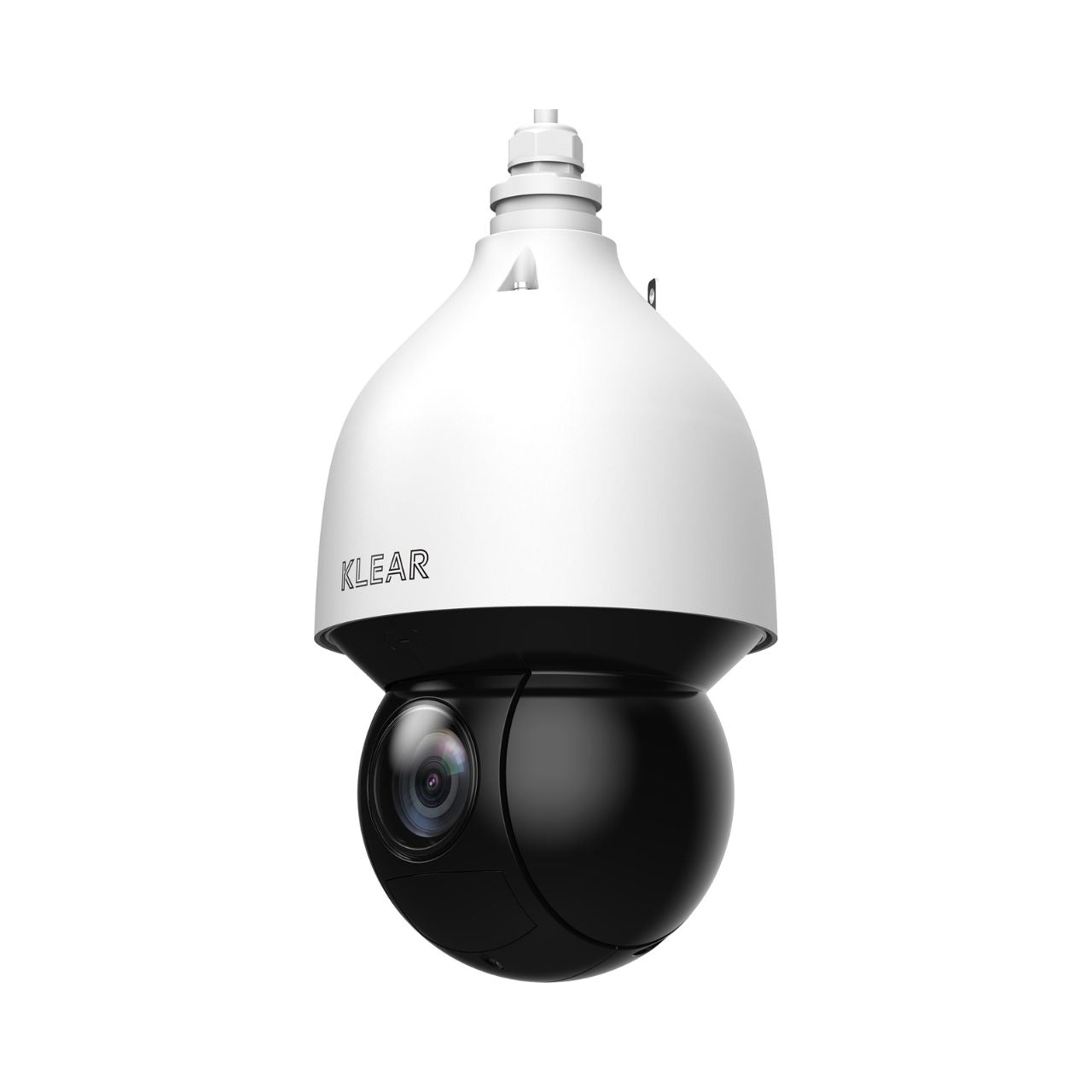

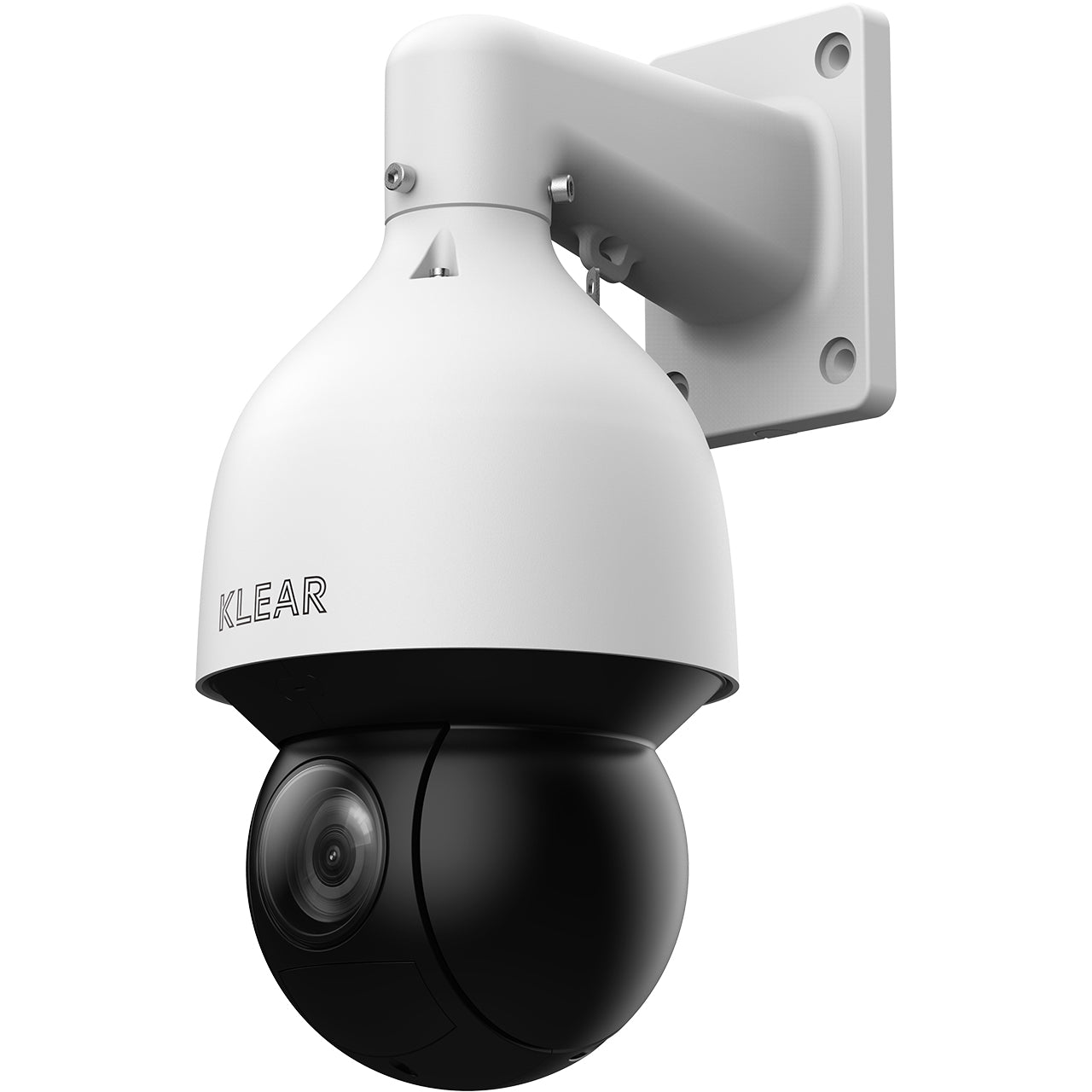

Klear 8MP IP 25x PTX, 150m IR, SMD 4.0 & Auto-Tracking 3.0

Camera

Image Sensor

1/1.8" CMOS

Pixel

4K

Max. Resolution

3840(H) x 2160(V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
 B/W: 0.0005 lux@F1.6
 0 lux@F1.6 (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

4 (IR)

Lens

Focal Length

5.4 mm–135 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4°

Optical Zoom

25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–2 m

Iris Control

Auto; manual; fixed

DORI Distance

Detect

Observe

Recognize

Identify

2700 m (8858.27 ft)

1066 m (3497.38 ft)

540 m (1771.65 ft)

270 m (885.83 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
 Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–300°/s
 Tilt: 0.1°/s–140°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection,face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

Auto Tracking

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

SMD

Yes

Video

Video Compression

H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); smart H.265+; smart H.264+

Streaming Capability

3 streams

Resolution

4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 960p (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Video Frame Rate

Main stream: 8M/4M/3M/1080p/1.3M/720p (1–25/30 fps)
 Sub stream 1: D1/CIF/VGA (1–25/30 fps)
 Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 128 kbps–16,384 kbps
 H.265: 51 kbps–12,288 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic(EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view;
 multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

ONVIF(Profile S&G&T);CGI;SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
 Chrome 41 and later versions
 Firefox 50 and later versions
 Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
 FCC: Part15 subpartB, ANSI C63.4-2014
 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; recordings; send email; preset; tour; pattern; alarm digital input

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

24 VDC/2.5 A ± 25%
 PoE+ (802.3at)

Power Consumption

Basic: 12 W
 Max.: 21 W (IR light + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

≤ 95%

Protection

IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

Φ190 mm × 332 mm (Φ7.48" × 13.07")

Net Weight

4.7 kg (10.36 lb)

Gross Weight

8.0 kg (17.64 lb)
