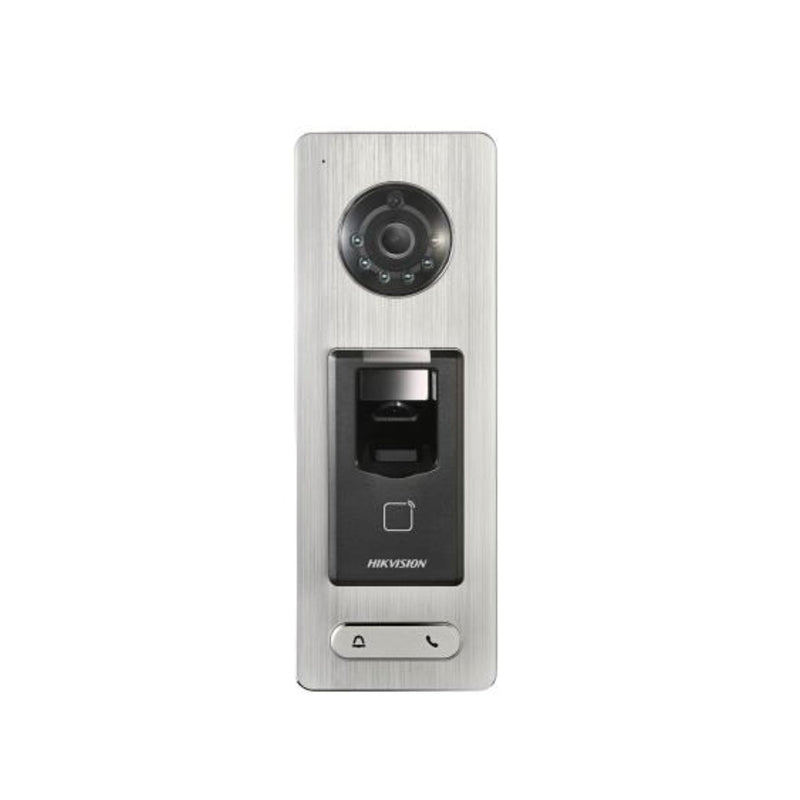

Hikvision IP Intercom 2MP Camera + Fingerprint + Card Reader, Stainless Steel, Surface (Display Model)
Model: DS-K1T501SF
- Video access control terminal with Time Attendance
- 2MP Camera
- 50,000 card, 3,000 fingerprints and 200,000 event storage
- Built-in Card Reader for Mifare1 card & Fingerprint Reader
- Video intercom (works with Hikvision Intercom products)
- Wiegand interface and RS-485 interface for accessing controller
- EHome for public network communication
- Face detection and picture capture function
- IP65
Specifications
- General
- Working Temperature-40°C to 70°C (-40°F to 158°F)
- Working Humidity10% to 90% (No Condensing)
- Working CurrentMax. 600 mA
- Power Supply12 VDC/1 A
- AudioAudio Input: Build-in Micro Phone (Sensitivity: -25±3DB)Audio Output: Build-in Loudspeaker (1W)
- Processor32 Bit High-performance Processor
- Communication ModeTerminal Mode: TCP/IP and RS-485Card Reader Mode: Wiegand (26/34) and RS-485
- Camera2MP/1080P, IR Light
- Card Capability50000
- FAR (False Acceptance Rate)≤ 0.001 %
- FRR (False Recognition Rate)≤ 0.01 %
- Fingerprint ModuleOptical Fingerprint Recognition Module
- Card Reading ModeMifare Card
- Input InterfaceDoorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
- Output InterfaceLock Relay × 1, Alarm Output (Doorbell) × 1
- Record Capability200000
- Fingerprint Capability5000
- 1:N Fingerprint Recognition Speed≤ 1.5s
- Induction Distance≥ 2cm
- Video StorageRecord and Save Video through NVR or Micro SD Card
- Micro SD CardMax. 128G
- MountingWall Mounting
- Protection LevelIP65
- Dimension218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
