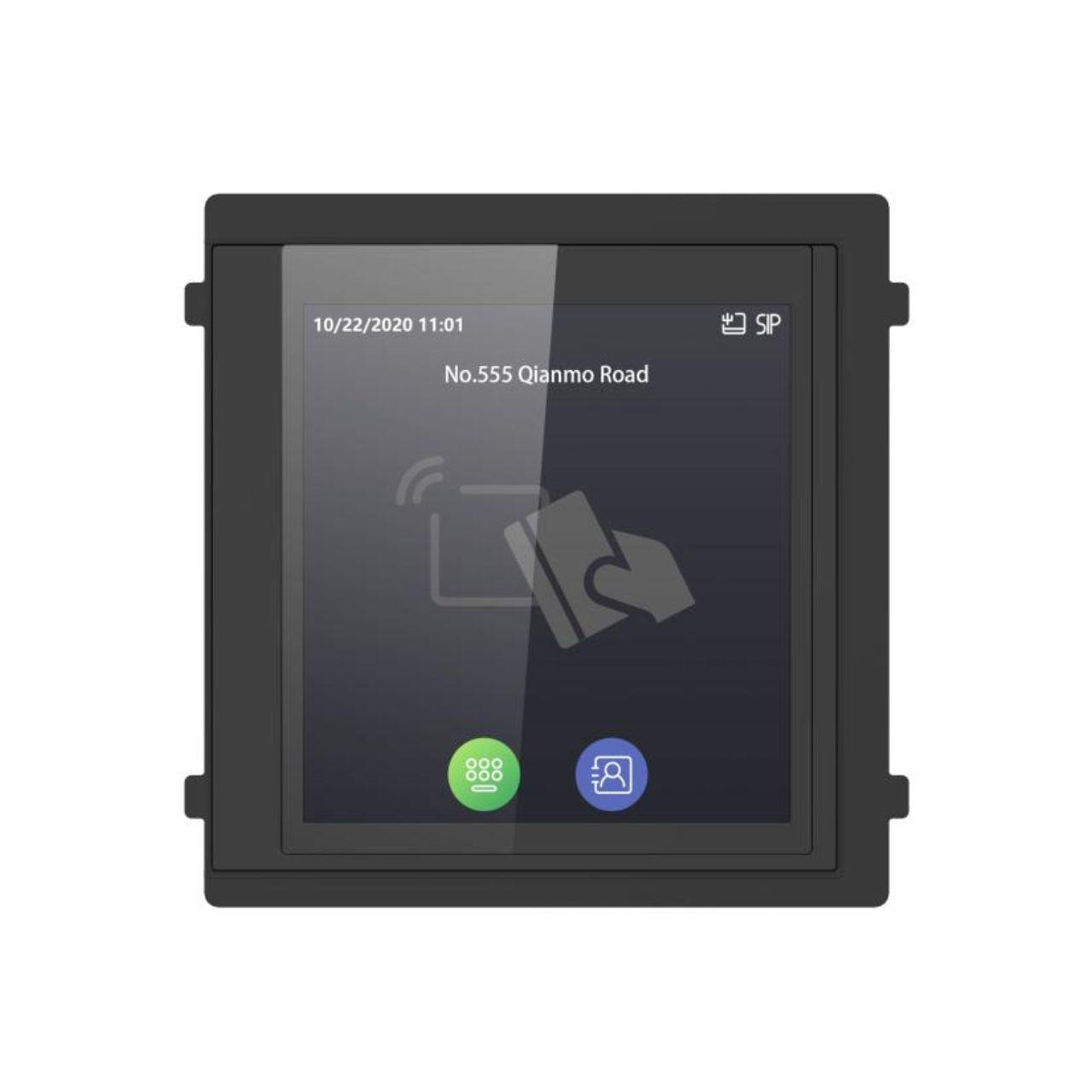

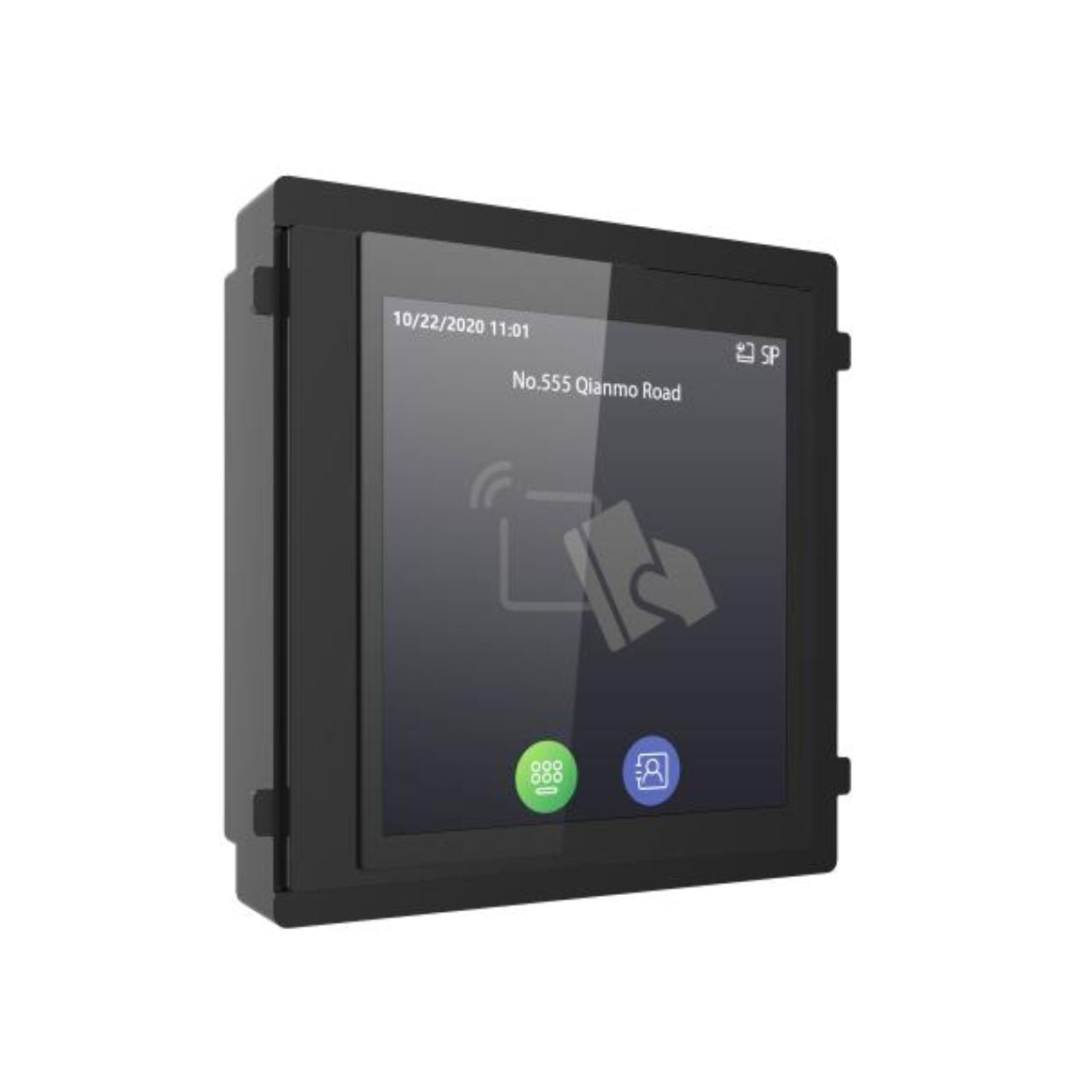

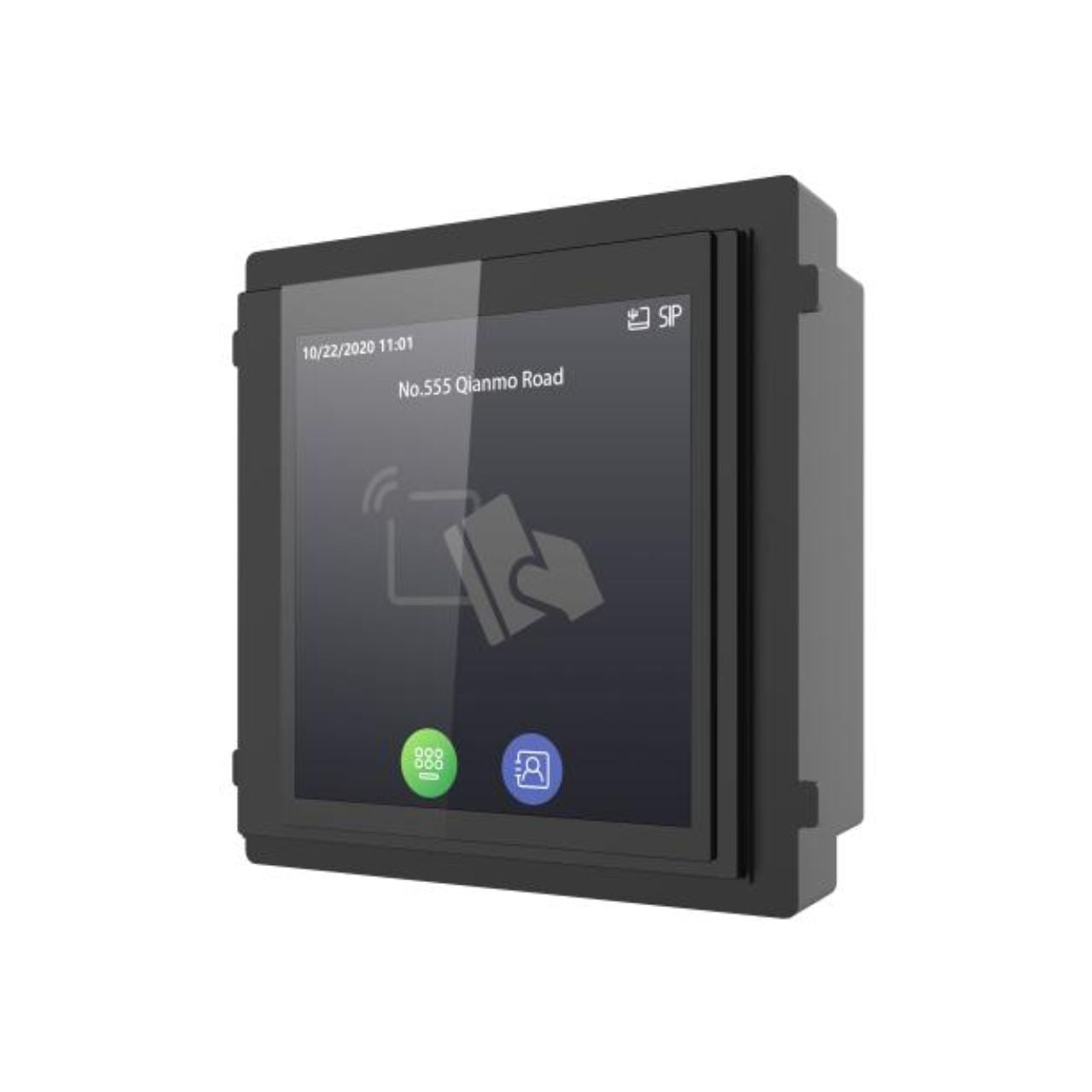

Hikvision Intercom Touch Screen Display Module with Card Reader
Model: DS-KD-TDM
- Touch display module with M1 card reader of modular door station
- 4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
- Store up to 2000 contacts
-
IP65 and IK08 higher protection level
Specifications
- System Parameters
- Operation SystemLinux
- ROM32 MB
- RAM128 MB
- Display Parameters
- Screen Size4-inch
- TypeIPS
- Resolution480 × 480
- BrightnessAdjustable, Max.500 cd/m2
- Audio Parameters
- Audio Input/
- Audio Compression Standard/
- Audio Output1 buzzer
- Audio Quality/
- Volume Adjustment/
- Loudspeaker Consumption/
- Network Parameters
- Wireless NetworkAP mode
- Authentication
- Card Reading Frequency13.56 MHz
- Card Reading Distance2 cm
- Card TypeM1 card
- Device Interfaces
- TF CardReserved
- DIP Switch8 bits
- Two-Ware Cascading Interface2
- General
- InstallationFlush mounting, surface mounting
- Protective LevelIP65, IK8
- Working Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity10% to 95% (no-condensing)
- Dimension (W × H × D)100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power Supply12 VDC, supplied by the main module
- Power Consumption≤ 4 W
- LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
