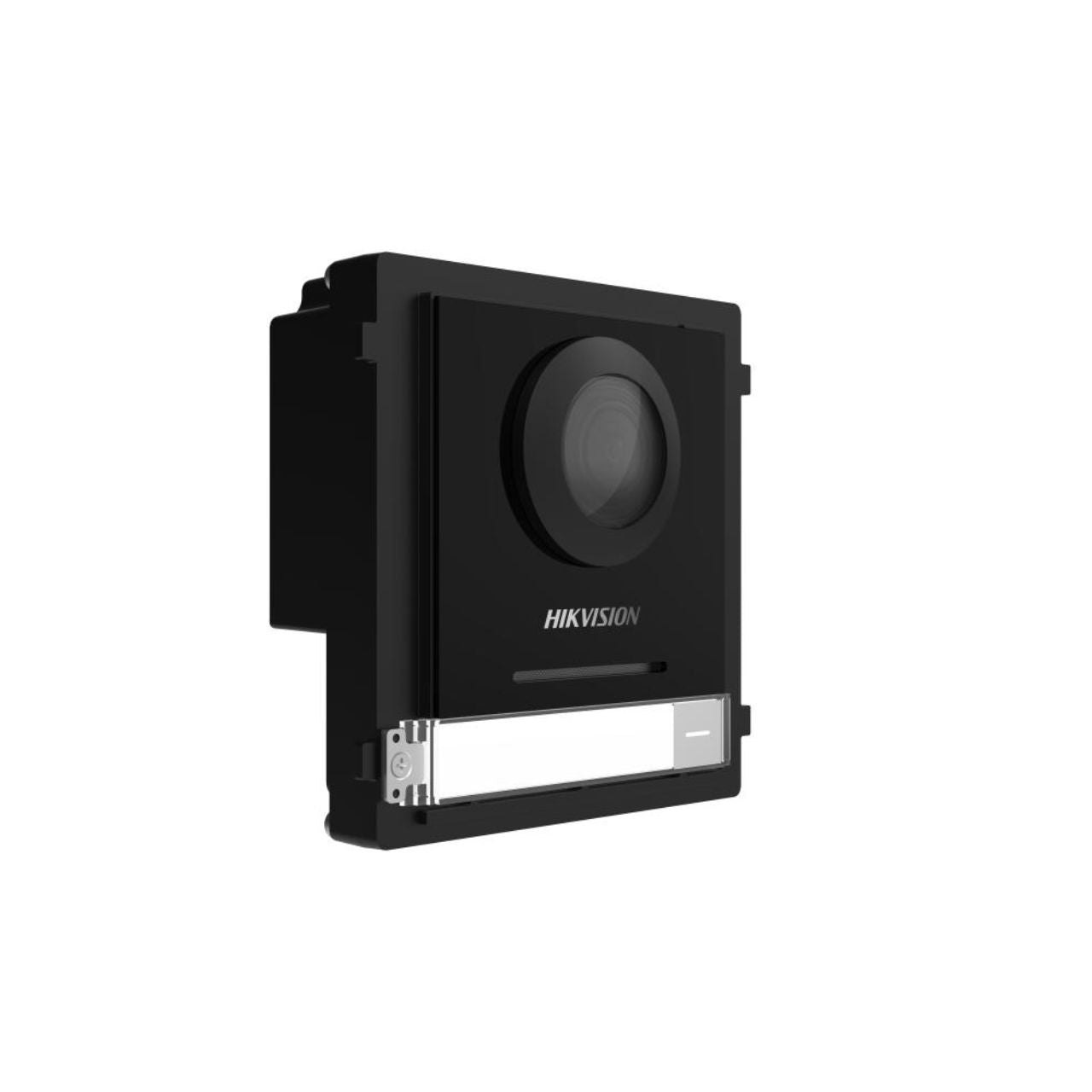

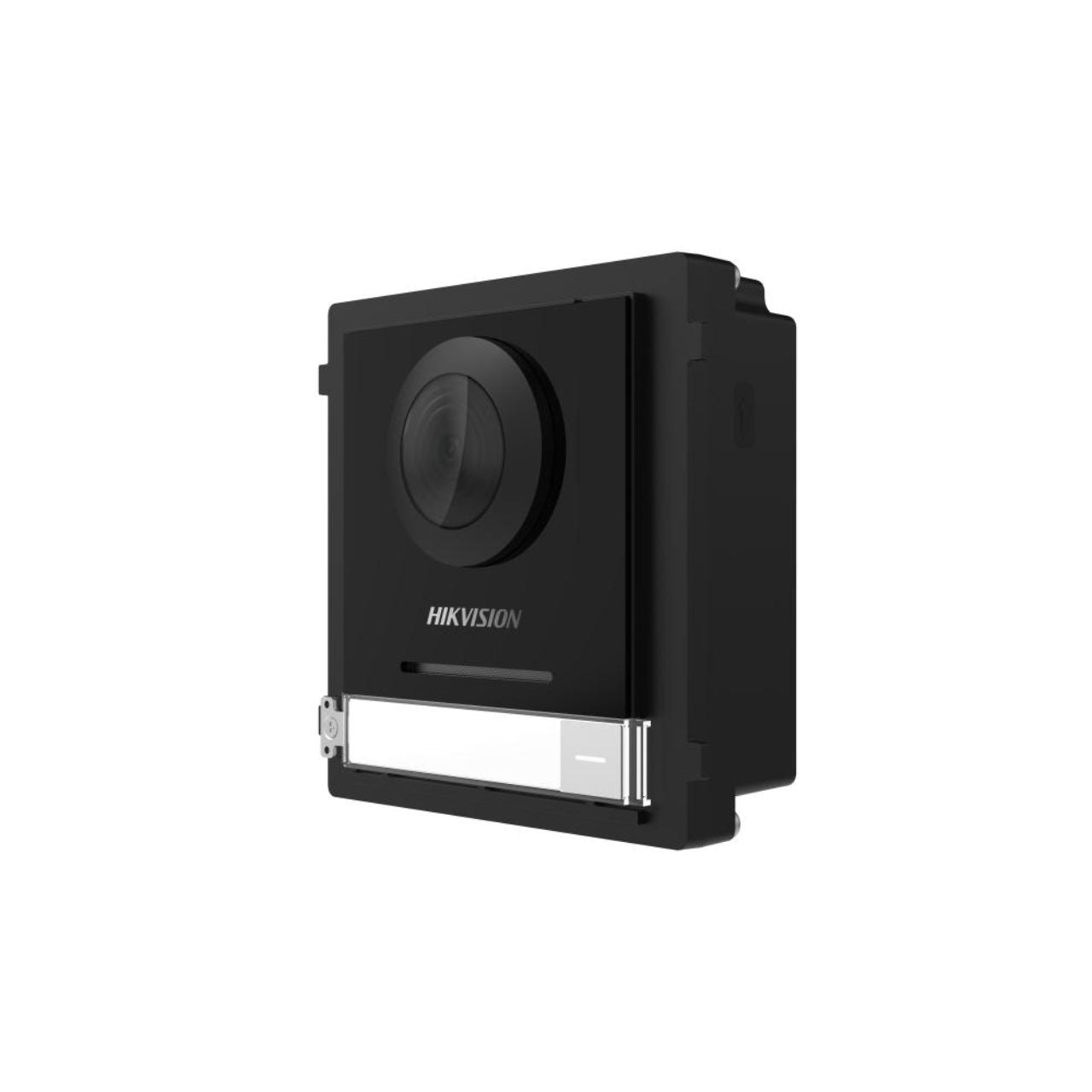

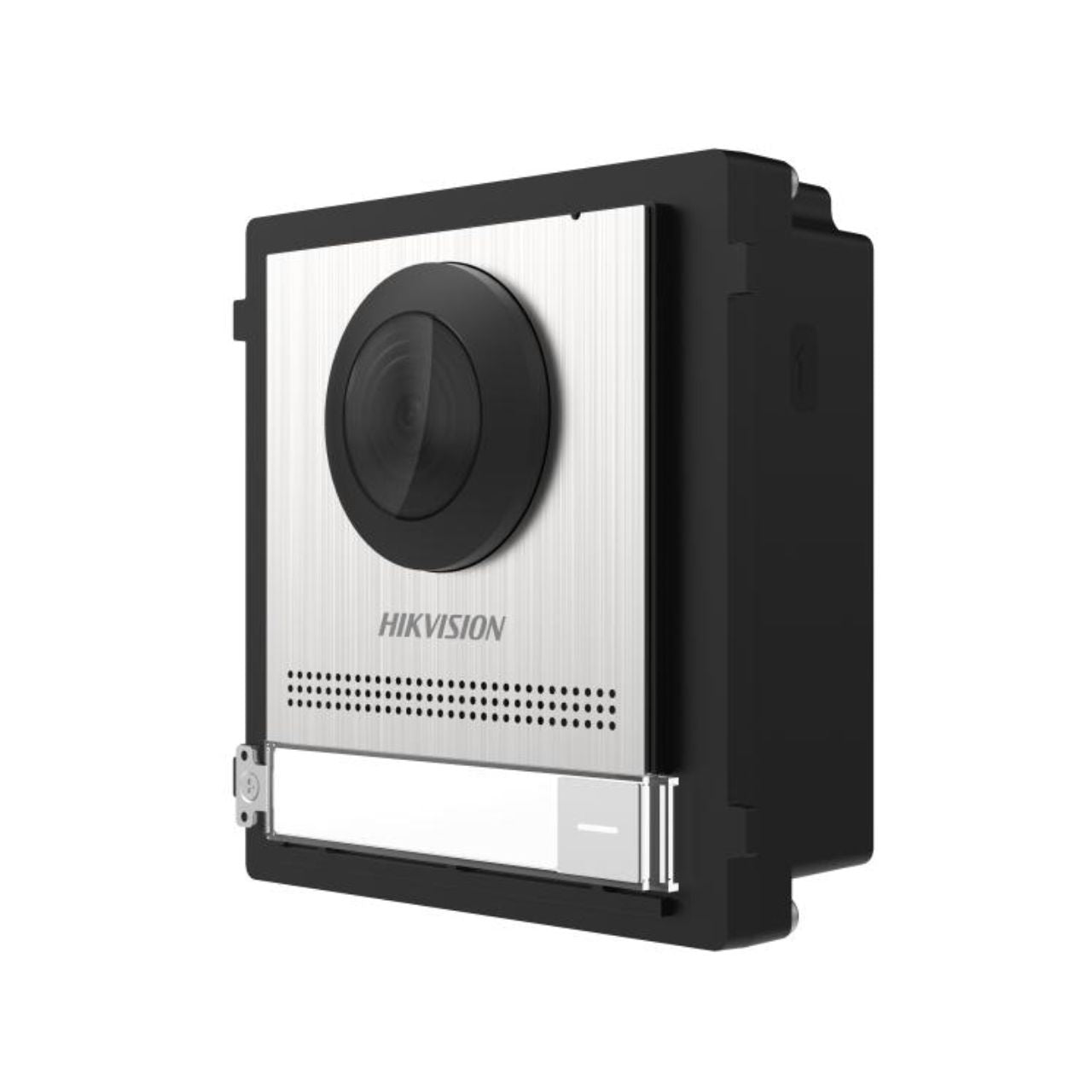

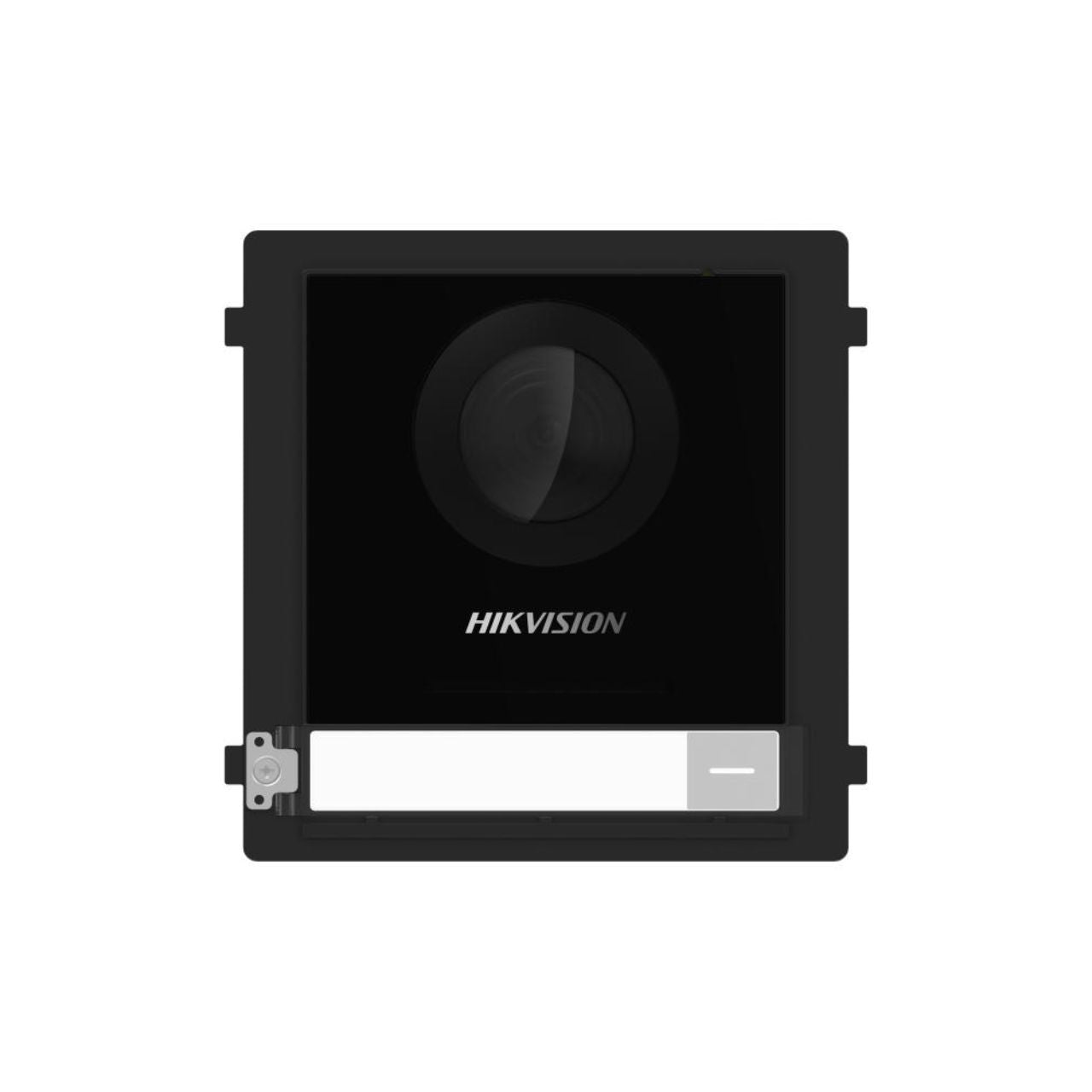

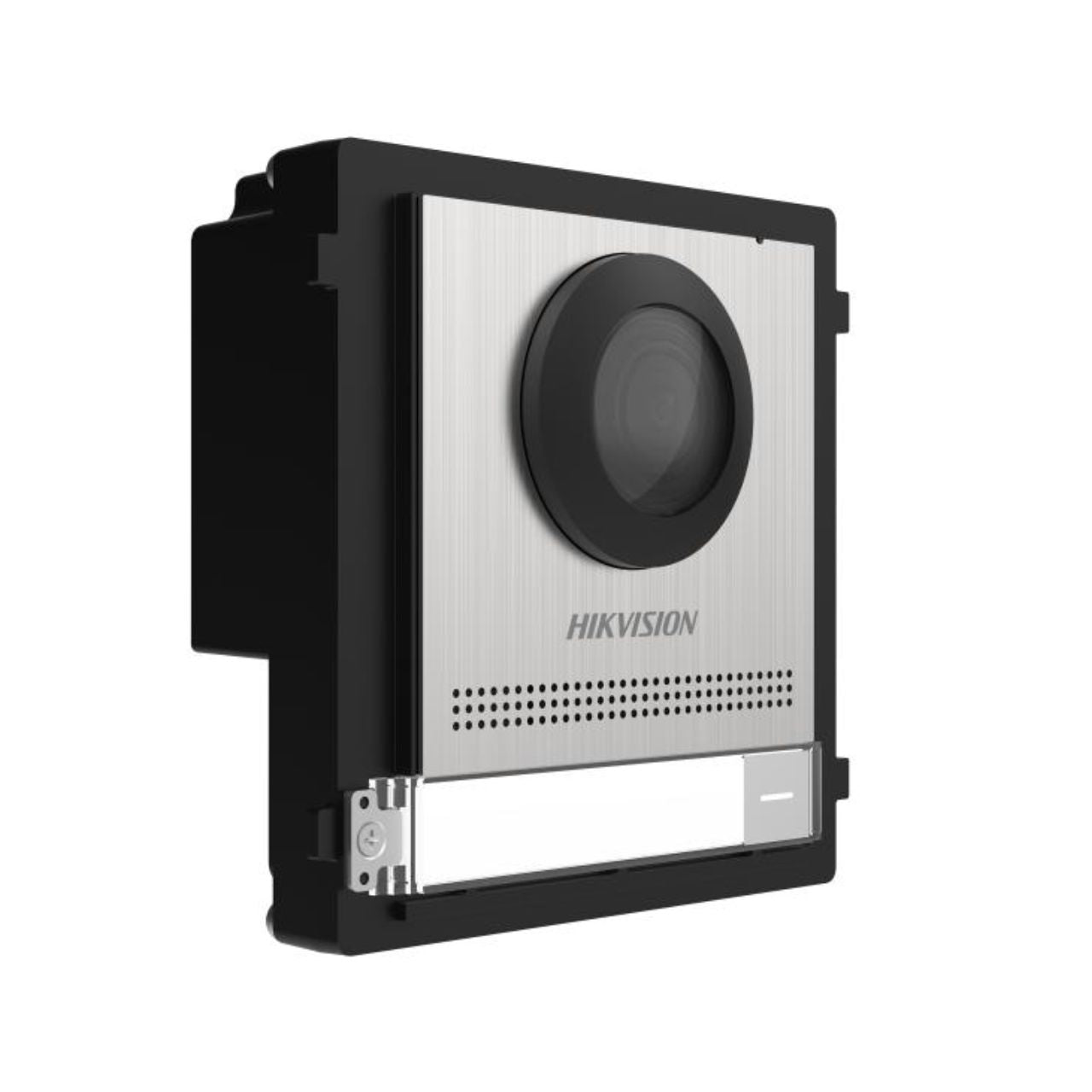

Hikvision IP PoE Intercom 2MP Camera Module
Model: DS-KD8003-IME1(B)/S
- 2MP fisheye camera with IR supplement
- One call physical button for easier calls
- Two-lock control
- Standard PoE power supply
- IP65 protection level
- Convenient configuration via Web
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
- Stainless Steel high quality material
Specifications
- ystem Parameters
- Operating SystemEmbedded Linux operation system
- ROM32 MB
- RAM256 MB
- CPUEmbedded Processor
- Display Parameters
- Screen SizeNA
- Operation MethodNA
- TypeNA
- ResolutionNA
- Video Parameters
- Supplement LightLow illumination, IR supplement lights
- Video StandardH.264
- Lens1
- FOVHorizontal: 146°, Vertical: 82°
- WDR
Support
- Resolution2 MP
- Audio Parameters
- Audio Input
Built-in omnidirectional microphone
- Audio Compression StandardG.711 U, G.711 A
- Audio OutputBuilt-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Fingerprint Capacity/
- User Capacity2000
- Card Capacity6000
- Face CapacityNA
- Linked Indoor Station Capacity500
- Event Capacity/
- Sub Door Station Capacity16
- Network Parameters
- Communication ProtocolTCP/IP, RTSP
- Wired Network10/100 Mbps self-adaptive Ethernet
- Wi-FiNA
- BluetoothNA
- 3G/4GNA
- Device Interfaces
- Alarm Input4 (2 exit butttons and 2 door contacts by default)
- Network Interface1 RJ45
- TAMPER1
- Exit Button2 (2 for lock control)
- Door Contact Input1
- RS-4851 (1 for Hikvision's sub module communication)
- WiegandNA
- TF CardNA
- Alarm OutputNA
- Lock Control2 (2 relay, max to 30 V, 2 A)
- USBNA
- Power Interface12 VDC power output (max to 12 V, 500 mA)
- Two-Wire IP InterfaceNA
- General
- Power Supply12 VDC/PoE ( IEEE 802.3af)
- Working Temperature-40° C to 60° C (-40° F to 140° F)
- Working Humidity10% to 95%
- Button1
- Protective LevelIP65
- InstallationSurface mounting & flush mounting
- Dimensions(L × W × H)98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
- LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
- Indicator0
- Weight
Without package: 0.410 kg
With Package: 0.581 kg
- Battery/
- Application EnvironmentOutdoor
- Power Consumption≤ 5 W
