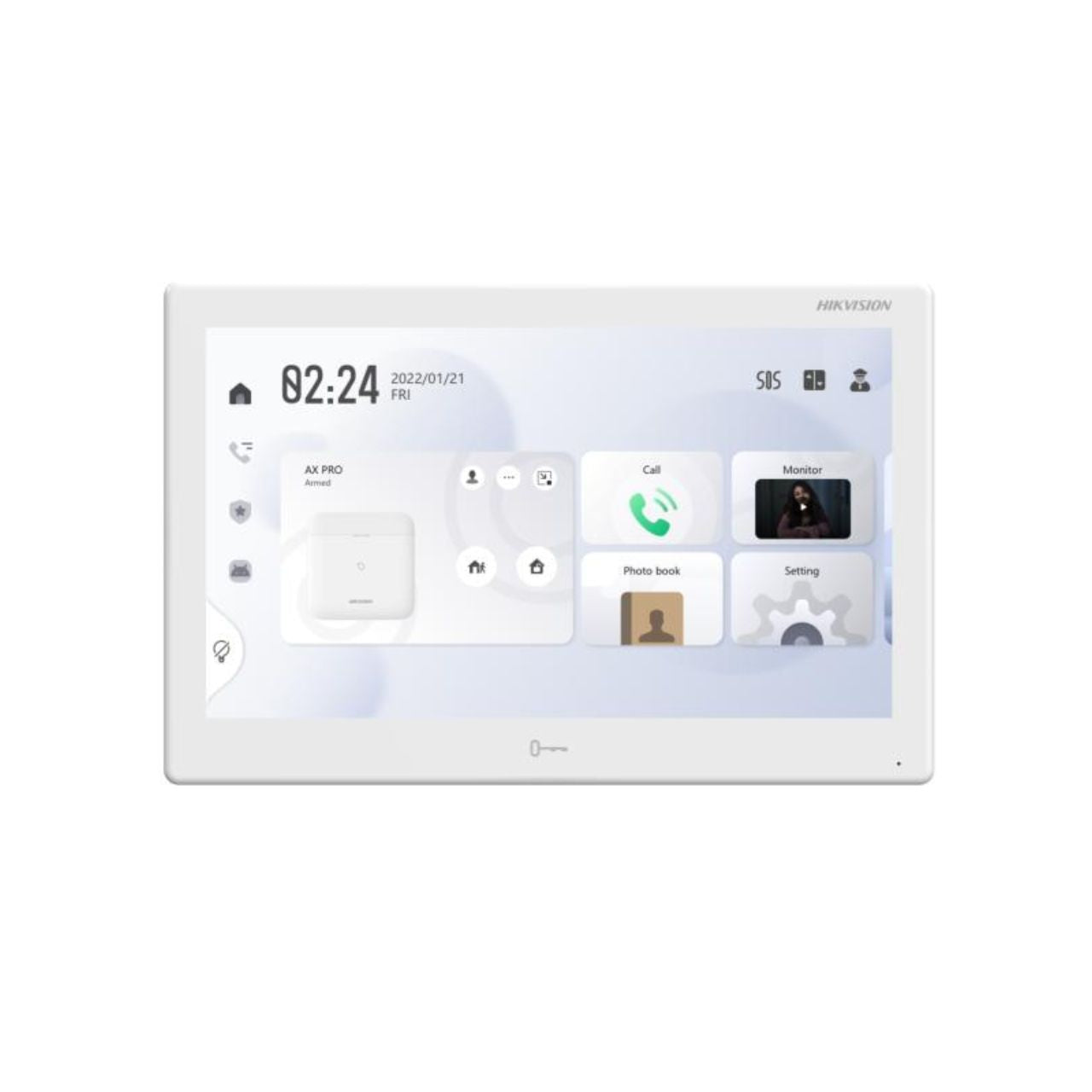

Hikvision IP PoE Intercom 10" Android Touch Screen with WiFi
Model: DS-KH9510-WTE1(B)
- 10.1-inch colorful touch screen with 1024 × 600 resolution
- Built-in Android System
- Supports Android APP installation
- Support for third-party software integration
- Built-in Hik-Connect APP
- For all-in-one management of Hikvision’s devices on tablet
Specifications
- System Parameters
- Operation SystemAndroid 10.1
- ROM8 GB
- RAM2 GB
- ProcessorEmbeded high performance processor
- Display Parameters
- Screen Size10.1-inch
- Operation MethodCapacitive touch screen
- TypeColorful IPS
- Resolution1024 × 600
- Video Parameters
- Lens/
- Resolution/
- FOV/
- Wide Dynamic Range (WDR)/
- Video Compression Standard/
- Focal Length/
- Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711U, G.711A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Message Capacity200 captured pictures, 200 alarm records
- Notice Capacity200
- Linked Indoor Extensions Capacity16
- Linked Network Camera Capacity16
- Linked Doorphone Capacity17
- Network Parameters
- Network ProtocolTCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device Interfaces
- Alarm Input8
- Network Interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851 RS-485 (Half duplex)
- TF CardSupport TF card, up to 128 G
- Alarm Output1
- Lock Control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
- General
- Button/
- InstallationSurface mounting
- Indicator/
- Weight
Net weight: 875 g
Gross weight: 1060 g
- Protective Level/
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10% to 90% (no-condensing)
- Dimension (W × H × D)254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
- Battery/
- Power Supply12 VDC, 1 A, IEEE802.3af, standard PoE
- Application EnvironmentIndoor
- Power Consumption≤ 12 W
- LanguageEnglish, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian
