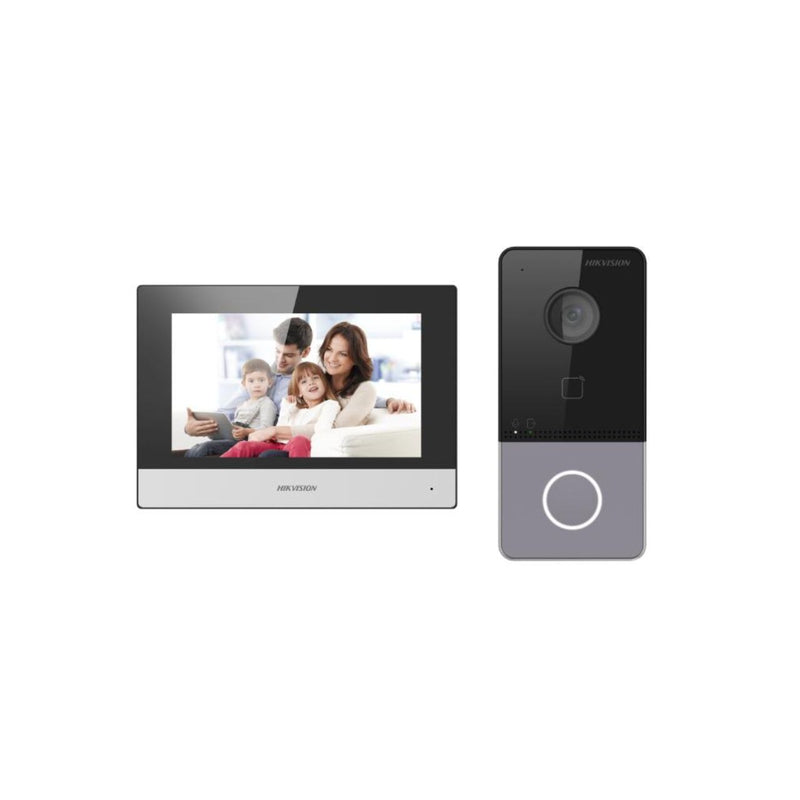

Hikvision IP PoE Intercom Kit: 2MP Plastic Door Station with Card Reader & 7" Touch Screen (System can be Wired or WiFi)
Model: DS-KIS603-P(C)
- Can be Wired (PoE) or WiFi
- IP video intercom bundle for villa or house
- One call button for easier calls
- Convenient Hik-Connect APP Mobile Control
- Including: DS-KV6113-WPE1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2 Power adapter included in the package
Specifications
- Door Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Flash32 MB
- RAM256MB
- Door Station/Video Parameters
- Camera2MP HD camera
- Night VisionLow illumination IR supplement mode:3 m
- Backlight CompensationSupport
- Digital Noise ReductionSupport
- WDRTrue WDR
- Field Of ViewHorizontal: 131° Vertical: 78°
- Video Compression StandardH.264
- StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion DetectionSupport
- Flash-Avoid Frequency50 Hz, 60 Hz
- Door Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U
- Audio Compression Rate64 Kbps
- Audio IntercomTwo-way audio communication
- Door Station/Network Parameters
- Network ProtocolTCP/IP, RSTP
- Wired Network10/100 Mbps Ethernet
- Door Station/Device Interfaces
- RS-4851
- Alarm Input4
- Debugging Port1
- Grounding1
- TAMPER Switch1
- Door Station/General
- Power Consumption＜ 10 W
- Working Temperature-40° C to 53° C(-40° F to 127.4° F)
- Working Humidity10% to 95%
- Dimension138 mm × 65 mm × 27 mm
- InstallationSurface mounting
- Protection LevelIP65
- Indicator2
- Power Supply
IEEE802.3af, standard PoE
12 VDC
- Indoor Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Memory128 MB
- Flash32 MB
- Indoor Station/Display Parameters
- Display Screen7-inch colorful TFT screen
- Display Resolution1024 × 600
- Operation MethodCapacitive touch screen
- Indoor Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U
- Audio Compression Rate64 Kbps
- Indoor Station/Network Parameters
- Wired Network10/100 Mbps self-adaptive
- Wireless NetworkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor Station/Device Interfaces
- RS-4851
- Alarm Input8-ch alarm inputs
- Relay Output2
- TF CardMax to 32 G, SD 2.0 or lower version
- Indoor Station/General
- Power Consumption≤ 6 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (L X W X H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
