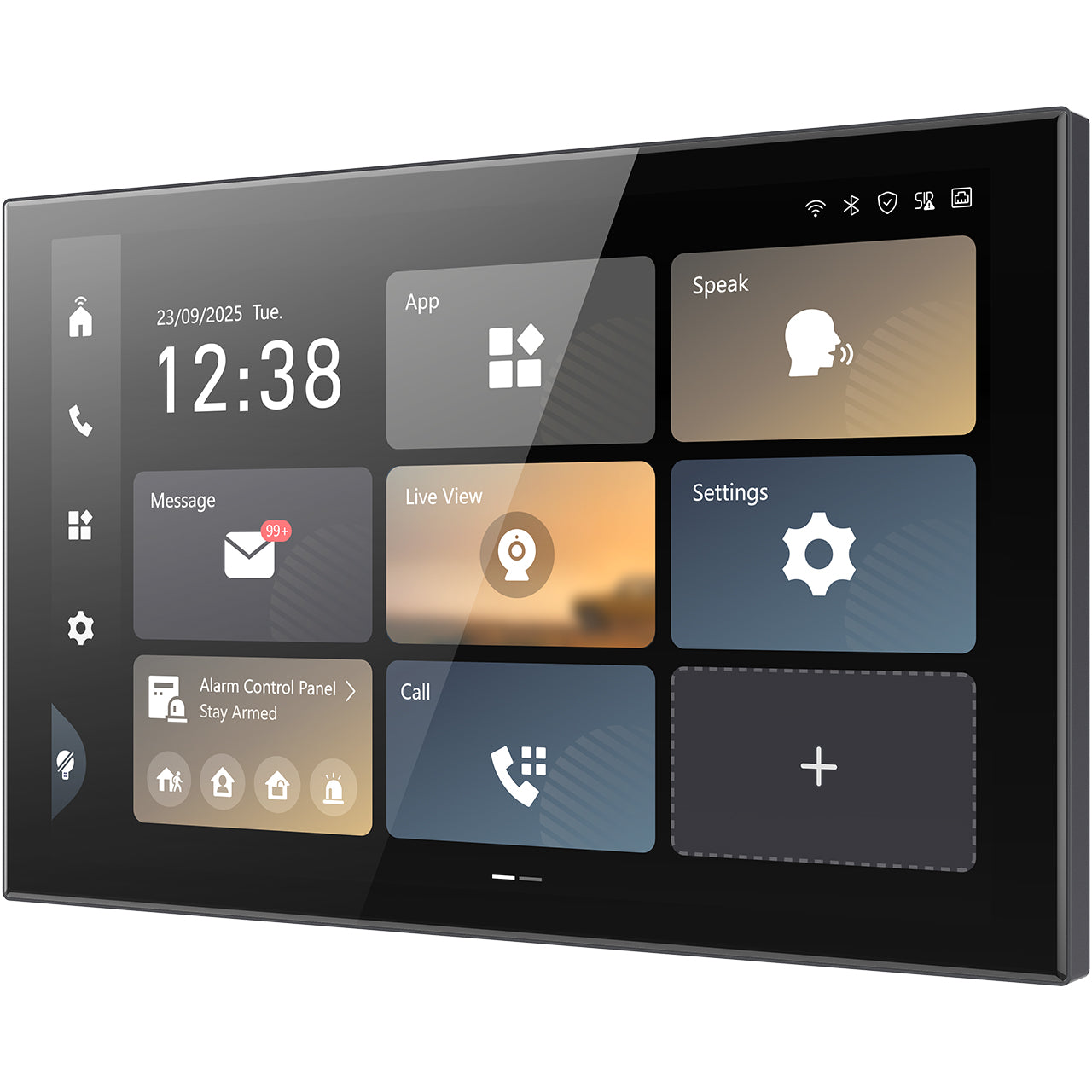

Hikvision IP PoE Intercom 10" Android Touch Screen with WiFi
Model: DS-KH9570-WTE1/S
- Integrated Smart Security Unified security management on single screen
- Ultra Smooth Operation: 4-core processor, Android 14, Up to 4 GB RAM + 8 GB ROM
- Super HD Clarity: 10.1" IPS touch display, 1920×1200 resolution
- Real Talk Anytime: Dual microphones & speakers, Noise suppression and echo cancellation
Specifications
- System Parameters
- Operation SystemAndroid 14
- ROM8 GB
- RAM4GB
- ProcessorEmbedded high performance processor
- Display Parameters
- Screen Size10.1-inch
- Operation MethodCapacitive touch screen
- TypeColorful IPS
- Resolution1920 ×1200
- Video Parameters
- Lens/
- Resolution/
- Video Compression Standard/
- Audio Parameters
- Audio Input2 built-in omnidirectional microphone
- Audio Compression StandardG.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
- Audio Output2 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Linked Doorphone Capacity17
- Message Capacity200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
- Linked Indoor Extensions Capacity15
- Linked Network Camera Capacity16
- Network Parameters
- Wi-FiWi-Fi 6, 2.4 GHz & 5GHz
- BluetoothBLE 5.0
- Network Protocol
IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
SIP v1 (RFC2543), SIP v2 (RFC3261)
DTMF: SIP Info
SADP, ISAPI, ONVIF
- Device Interfaces
- Alarm Input8 (Reserved)
- Network Interface1 RJ-45 10/100 Mbps self-adaptive
- RS-4851 RS-485 (Half duplex)
- TF CardSupport TF card, up to 256 G
- Power Supply Input12 VDC
- Power Supply Output12 VDC, 200mA
- Relay1 (Reserved), Max. 30VDC 1A
- General
- Proximity SensorDistance: 50cm, Horizontal: 25°, Vertical: 25°
- InstallationSurface mounting
- Without package: 545 g (1.2 lb),With package: 639g (1.41 lb)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10% to 90% (no-condensing)
- Power Supply12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
- Application EnvironmentIndoor
- Power Consumption≤ 24 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Dimension (W × H × D)246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93")
