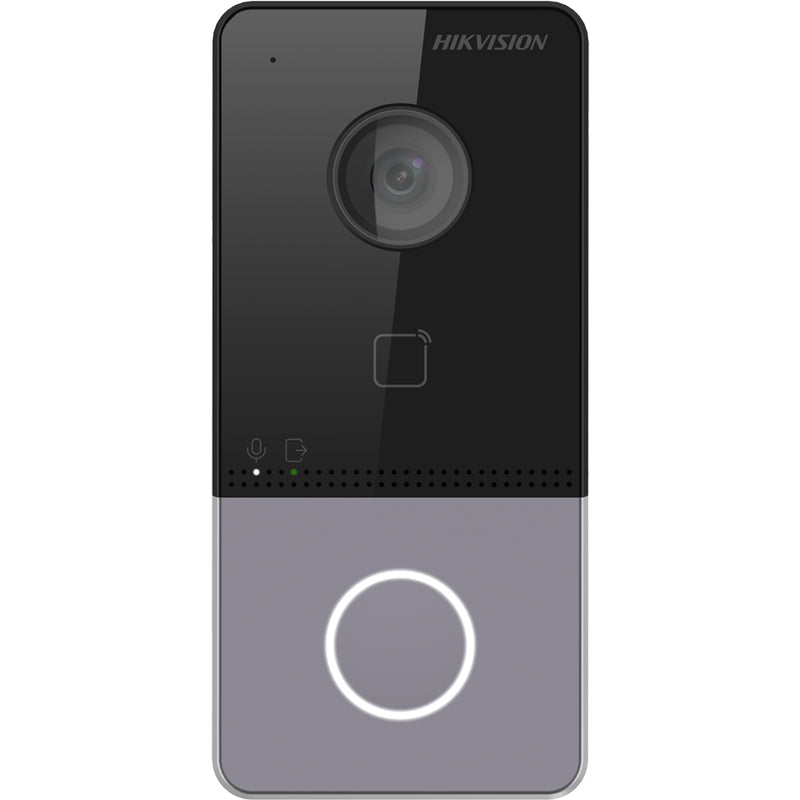

Hikvision IP PoE Intercom 2MP Villa Door Station with Card Reader
Model: DS-KV6113-WPE1(C)
- 2 MP camera with IR supplement
- One-touch button calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IP65 protection level
- Convenient Hik-Connect APP Mobile Control
Specifications
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- Resolution
Main stream: 1920 × 1080p, 720p
Sub stream: 640 × 480p
- FOVHorizontal: 131° Vertical: 78°
- Wide dynamic range (WDR)Support 120 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264; H.265; MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Face capacity/
- Card capacity10000
- Network parameters
- Network protocolTCP/IP, RSTP, IPV6, ONVIF
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- BluetoothNot supported.
- 3G/4G/
- Device interfaces
- Alarm input4
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button1
- RS-4851
- USB/
- Wiegand/
- TF cardReserved
- Alarm output/
- Lock control1 relay, Max. 30 VDC 2 A
- Door contact input1
- General
- Button1 physical button
- InstallationSurface mounting
- Indicator2
Net weight: 0.190 kg
Gross weight: 0.414 kg
- Protective levelIP65
- Working temperature-40 °C to 55 °C(-40 °F to 131 °F)
- Working humidity10% to 95% (no-condensing)
- Dimension (W × H × D)138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Power supply12 VDC,Standard PoE, af
