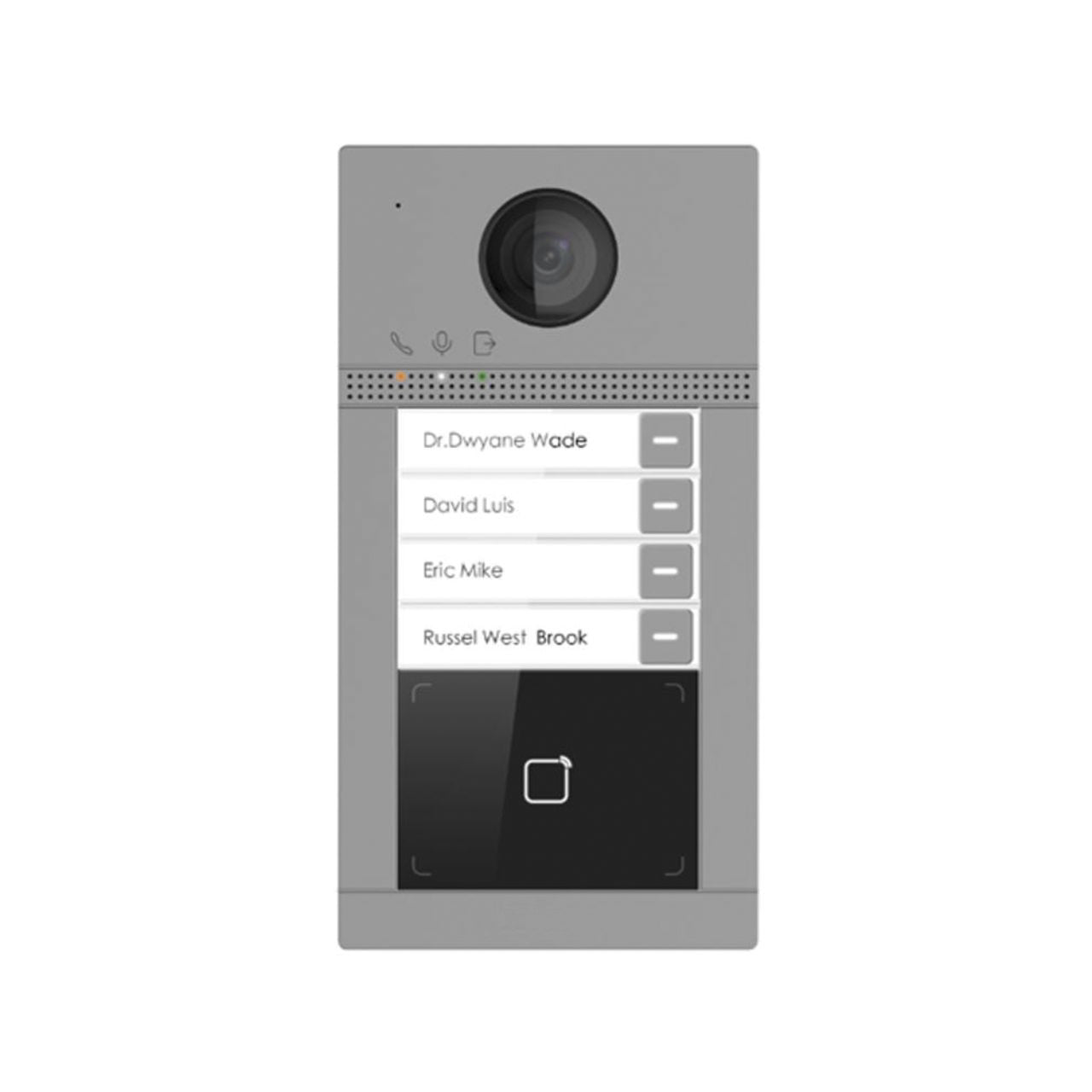

IP PoE Intercom 2MP Door Station Hikvision Compatible, Card Reader, 4 Buttons, Metal, Surface
Model: H-4 IP APT
- *Please note, this is unbranded and is Plug&Play with Hikvision Intercoms & Hik-Connect
- 2MP camera with IR supplement
- Four nametag buttons calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IK08 & IP65 higher protection level with aluminum alloy material
- Convenient Hik-Connect APP mobile control
Specifications
- System Parameters
- Operation SystemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Display Parameters
- Screen Size/
- Operation Method/
- Type/
- Resolution/
- Video Parameters
- Lens1
- Resolution
Main stream: 1920p × 1080 and 1280 × 720p
Sub stream: 640 × 480p
- FOVHorizontal: 129° Vertical: 75°
- Wide Dynamic Range (WDR)True WDR
- Supplement LightIR light, up to 3 m
- Video Compression StandardH.264
- Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711 U, G.711 A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- User Capacity2000
- Card Capacity10000
- Linked Indoor Station Capacity4 (main indoor station)
- Sub Door Station Capacity16
- Network Parameters
- Network ProtocolTCP/IP, RTSP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Received Frequency2.4 to 2.4835 GHz
- Transmitted Frequency2.4 to 2.4835 GHz
- Bandwidth20/40 MHz
- Frequency Power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card Reading Frequency13.56 MHz
- Device Interfaces
- Alarm Input/
- Network Interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit Button2
- RS-4851
- USB/
- Wiegand/
- TF CardReserved
- Alarm Output/
- Door Contact Input2
- General
- Button4 physical buttons
- InstallationSurface mounting
- Indicator3
- Weight
Net weight: 0.400 kg
Gross weight: 0.658 kg
- Protective LevelIP65, IK08
- Working Temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
- Working Humidity10% to 95% (no-condensing)
- Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
- Battery/
- Application EnvironmentOutdoor
- Power Consumption＜ 10 W
- LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
==>
