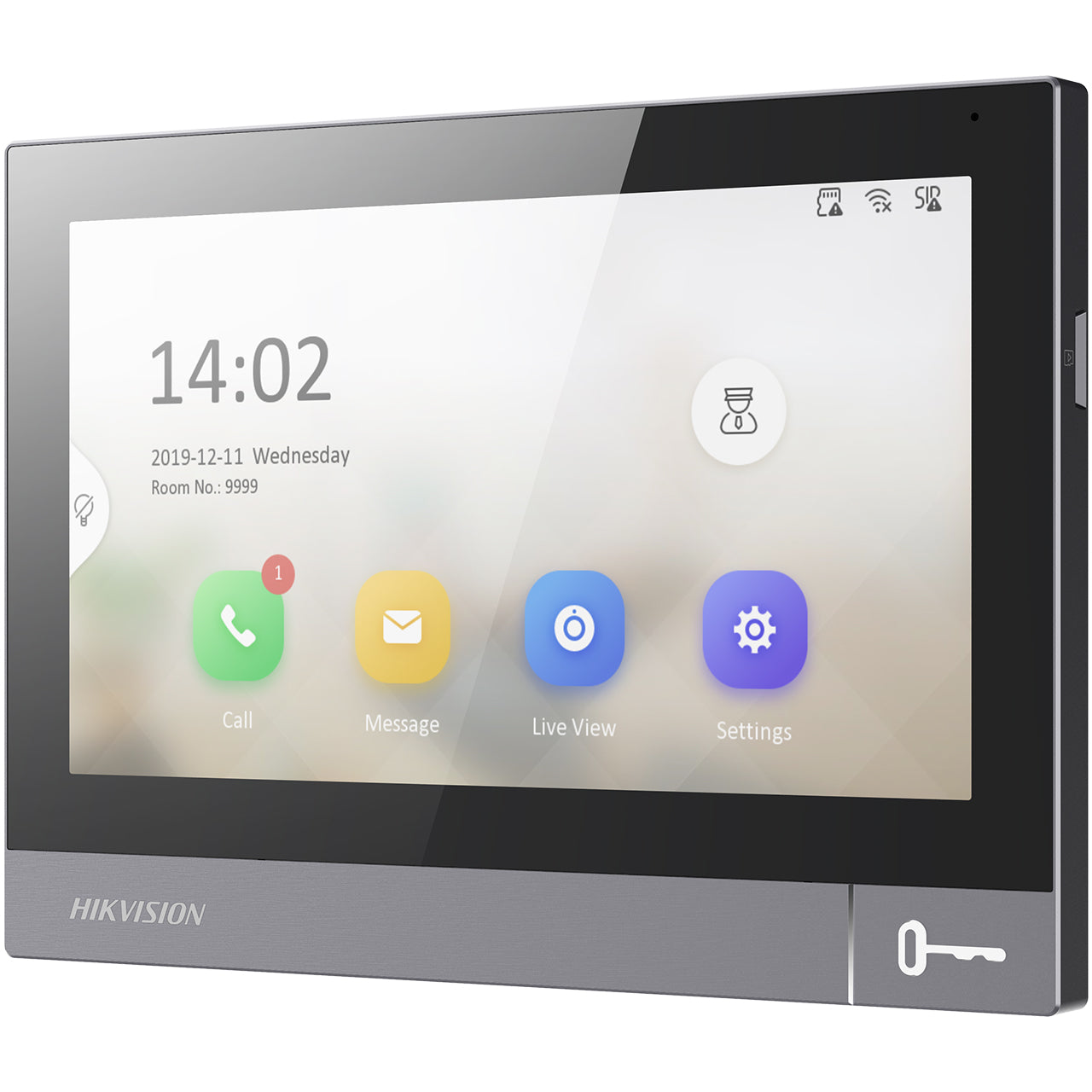

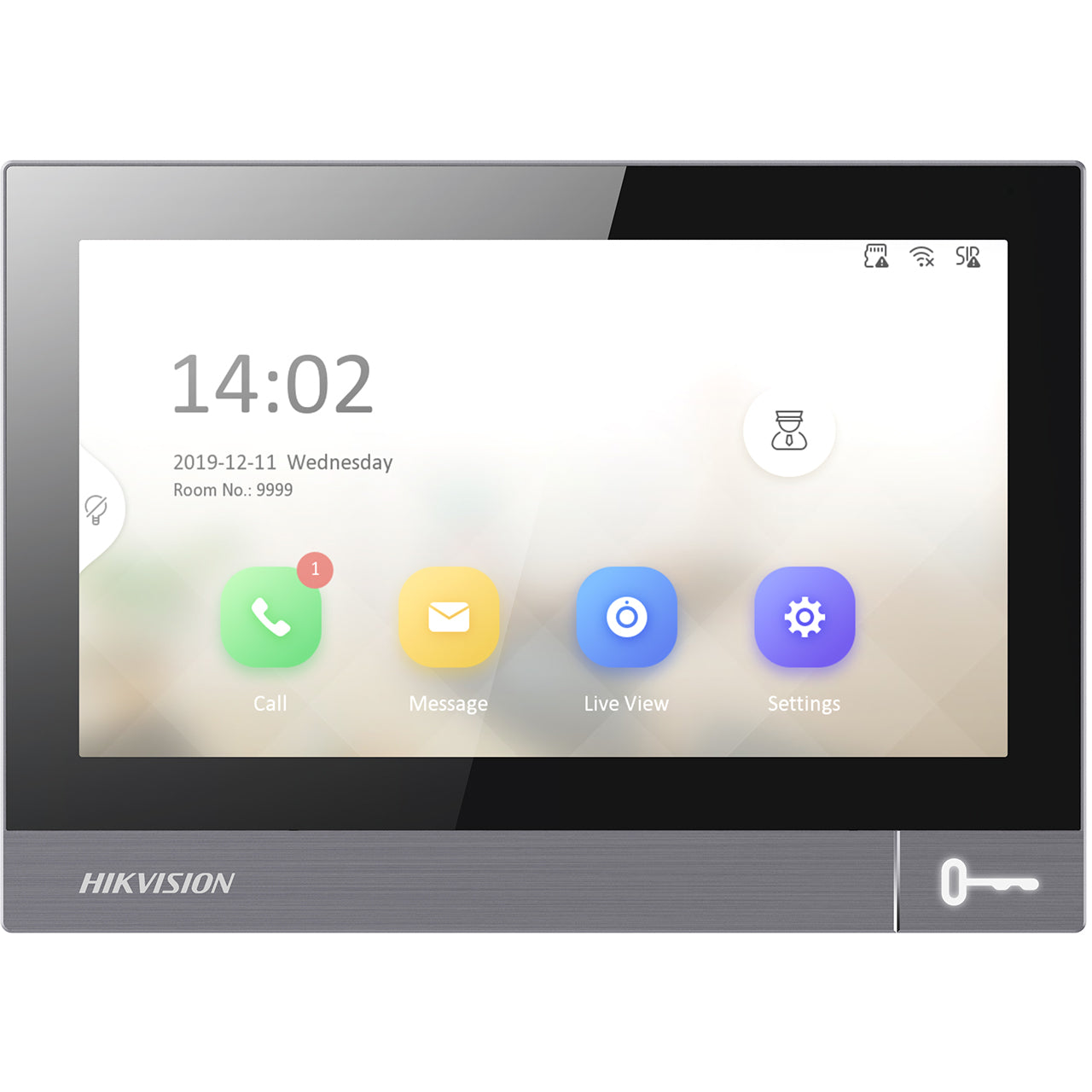

Hikvision IP PoE Intercom 7" Metal Touch Screen with WiFi
Model: DS-KH8381-WTE1
- 7-inch IPS touch screen with 1024 × 600 resolution
- Excellent metal appearance design
- One physical button design for easier open the door
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Standard IEEE802.3at PoE power supply and power the lock
- Supports up to 16 indoor extensions linkage
- Elevator access control
- Supports surface and flush mounting
- Rich interfaces: alarm in, RS-485, relays, TF slot
Specifications
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1024*600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standardH.265；H.264
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate16、32、64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacity
TF card inserted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity200
- Linked network camera capacity16
- Linked indoor extensions capacity16
- Linked doorphone capacity/
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-FiWiFi 802.11b/g/n
- Wireless network1 RJ-45 10/100Mbps self-adaptive
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851
- USB/
- TF cardSupport TF card, up to 128 G
- Alarm output/
- Lock control4 relays, Max. 30 VDC 1A
- Power supply outputMax. 12 VDC 0.5 A
- Debugging port1
- Relay4
- General
- Button1 physical button(s)
- InstallationFlush mounting, surface mounting, table mounting
- Indicator/
- Without package: 412.2 g (0.909 lb)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")
- Battery/
- Power supplyIEEE802.3at, Standard PoE,12 VDC, 1.5 A
- Application environmentIndoor
- Power consumption≤ 12 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- MaterialDie-cast integrated aluminum alloy casing
