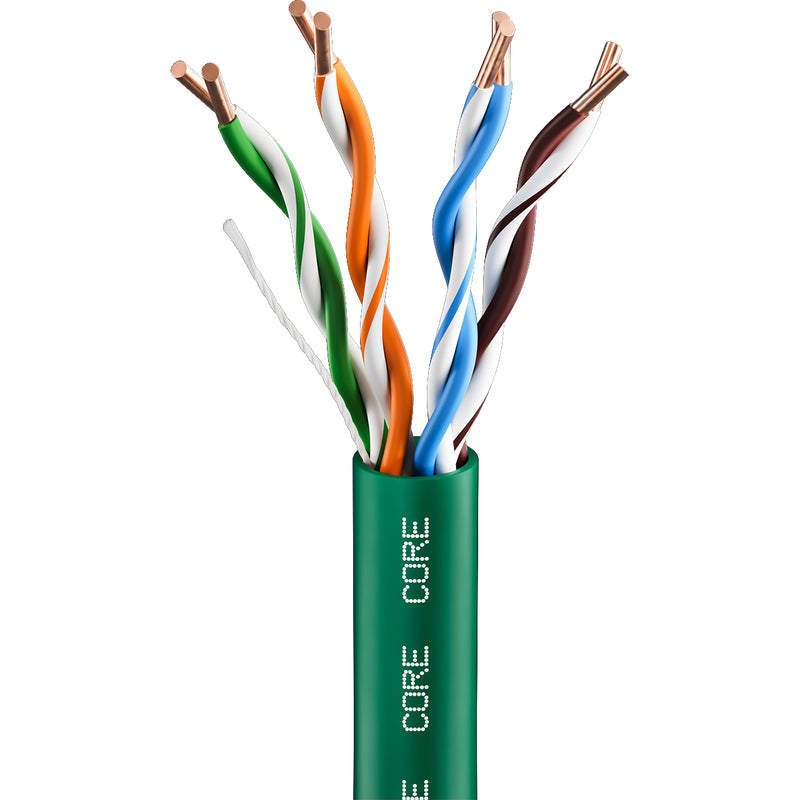

CORE CAT5e Indoor U/UTP Solid Bare Copper Cable, LSZH, 305m, 24AWG, CPR Dca, 350MHz
- CAT5e Solid Bare Copper
- 350MHz
- 24AWG
- Low Smoke Zero Halogen (LSZH), Class Dca
- 25-Year Limited Warranty
Overview
CORE PRO series CAT5e cables have been tested to 350MHz, the highest possible for a CAT5e cable to ensure lightning speeds.
Up to 2.5Gbps
Suitable for 1Gbps and 2.5Gbps up to 100m / 328feet.
Fire Rating
Important where smoke emissions and toxic fumes could pose a risk to human life and sensitive equipment, there are various grades for a cable's fire performance. CORE Low Smoke Zero Halogen (LSZH) cables are manufactured to pass CPR (Construction Products Regulation) Class Dca whilst other cable manufacturers may only pass Eca. An Eca test is a basic test that only measures vertical flame spread. In addition to this test, Dca has a requirement to test for toxic fumes (acid gas), smoke and flaming droplets, making the CORE LSZH jacket superior.
Easy-Pull®
- The cable is coiled using CORE's proprietary winding technology and packaged in our Easy-Pull® box to ensure a tangle-free and twist-free cable pull.
- The large payout tube allows a fast, smooth and snag-free cable pull.
- The heavy-duty, double-walled and water-resistant coated cardboard box provides superior protection to the cable inside whilst making it rigid and durable in transit. Furthermore, the reinforced handles mean no more ripped handles when picking up the box.
Specifications
| Product Construction
| |
|---|---|
| Conductor Material
|
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tincidunt dui non elementum condimentum. Curabitur eget felis eget massa tincidunt auctor Bare Copper |
| AWG Size
|
24 |
| Conductor Category
|
Class 1 = Solid
|
| Number of Pairs
|
4 |
| Insulation Material
|
High-Density Polyethylene (HDPE) |
| Pair Colours
|
Blue, Blue/White; Orange, Orange/White; Green, Green/White; Brown, Brown/White
|
| Outer Sheath Material
|
Low Smoke Zero Halogen (LSZH)
|
| Outer Sheath Colour
|
White
|
| Rip Cord
|
Nylon
|
| Flame retardant according to IEC 60332-1-2 | Yes
|
| Reaction-to-fire class according to EN 13501-6
|
Dca |
| Smoke development class according to EN 13501-6
|
s2 |
| Euro class flaming droplets/particles according to EN13501-6
|
d2 |
| Euro class acidity according to EN 13501-6
|
a2 |
| Standards | ANSI TIA/EIA 568.2-D, ISO/IEC 11801, IEC 61156, EN 50173, EN 50288, IEC 60332, IEC 60754, IEC 61034, EN 50575, RoHS-3
|
| Mechanical Characteristics
| |
|---|---|
| Overall Diameter
|
5.1mm ± 0.10mm
|
| Temperature Range
|
-20°C to +60°C
|
| Max. Pulling Load
|
60 N/6.1 KgF
|
| Bend Radius Installation
|
8x Overall Diameter
|
| Bend Radius Installed
|
4x Overall Diameter
|
| Electrical Characteristics
| |
|---|---|
| Max. Operating Frequency
|
350MHz
|
| Max. Conductor DC Resistance
|
≤ 9.38 Ω/100m @ 20°C
|
| Pair-to-Ground Capacitance Unbalanced
|
≤330pF/100m
|
| Max. Resistance Unbalanced
|
< 2.0%
|
| Max. Insulation Resistance
|
> 5000 MΩ*km
|
| Mutual Capacitance
|
< 5.6 nF/100m
|
| Impedance @ 100MHz
|
100 Ω ± 15
|
| Nominal Velocity of Propagation (NVP)
|
69%
|
| Delay Skew
|
< 45 ns / 100m
|
| Max. Operating Voltage
|
72V
|
| PoE Compliance
|
IEEE 802.3af/at (PoE/PoE+)
|
