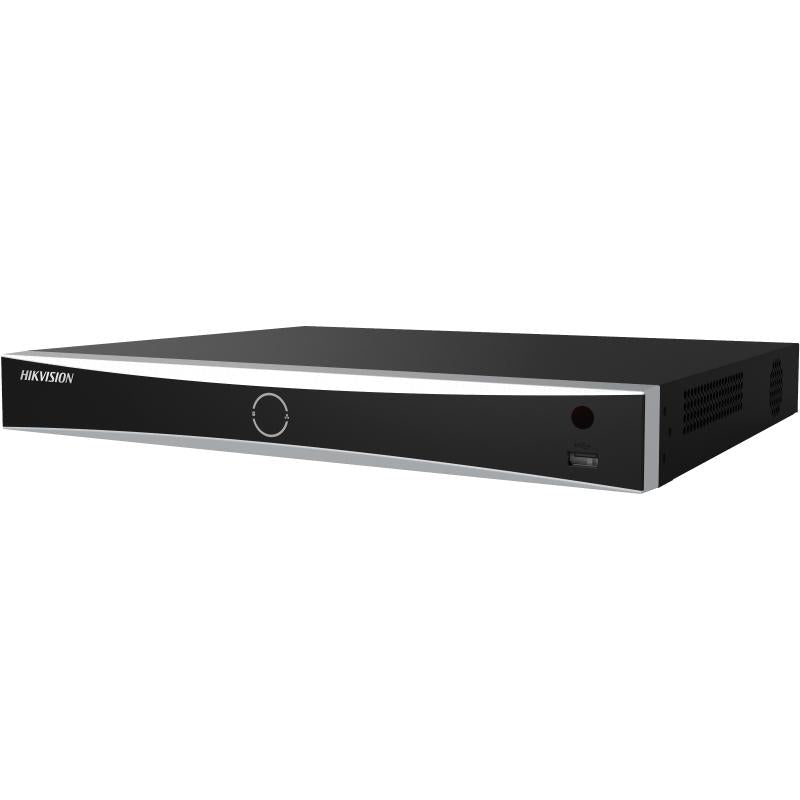

Hikvision 16-Channel Pro AcuSense NVR up to 8MP, 16-PoE, 2-SATA, NXI K Series
Model: DS-7616NXI-K2/16P
- Up to 16-ch IP camera inputs with 16 Power-over-Ethernet (PoE)
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Hikvision AcuSense technology
Specifications
- Motion Detection 2.0
- Human/Vehicle Analysis4-ch
- Video And Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16-ch
- Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 150 W
- StandardIEEE 802.3 af/at
- Wireless Parameter
- SIM/UIM Card Slot1 micro SIM card slot, on rear panel
- SMA Antenna Interface
1 4G interface, antenna module cable length: 3 m
1 ANT interface for GPS antenna (GPS antenna is optional)
- Wireless Standard
GSM/EDGE: 850/900/1800MHz
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 8 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
- Weight≤ 3 kg (without HDD, 6.6 lb.)
