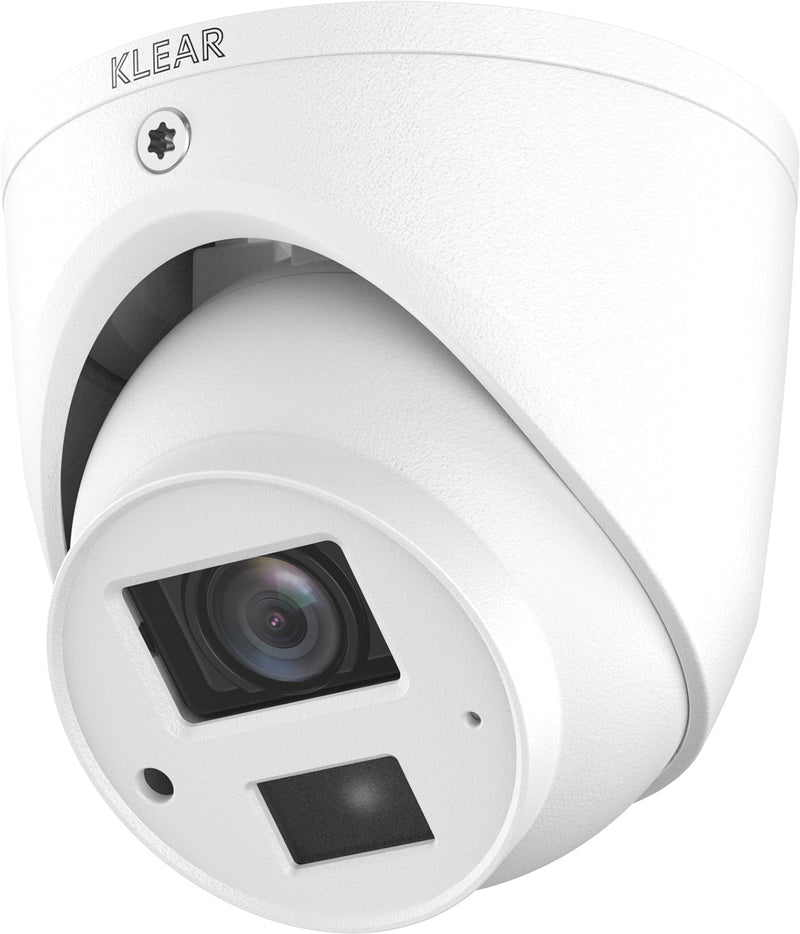

Klear 2MP CVI Mini-Eyeball, 20m IR & Audio
Model: K-202 E A
- 1/2.7" 2MP 1920x1080 Progressive CMOS Sensor
- IR up to 20m
- Built-in Microphone
- 2.8mm Fixed Lens, Horizontal FOV 101°
- 0.02 Lux @ F2.0 (Colour); 0.002 Lux @ F2.0 (B/W)
- 4in1: CVI (Default), TVI, AHD or CVB-S
-
IP67
- Casing: Metal
-
Dimensions (Ø x H): 62.0 x 61.7mm
Specifications
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Max. Resolution | 1920 (H) x 1080 (V) | ||||
| Pixel | 2MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | ||||
| NTSC: 1/30 s–1/100000 s | |||||
| S/N Ratio | >65 dB | ||||
| Min. Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on | ||||
| Illumination Distance | 20 m (65.6 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 1 (IR) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Max. Aperture | 2.8 mm: F2.0 | ||||
| Field of View | 2.8 mm: H: 101°; V: 54°; D: 119° | ||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) | ||||
| DORI Distance | Detect | Observe | Recognize | Identify | |
| 2.8 mm | 38.6 m (126.6 ft) | 15.4 m | 7.7 m | 3.9 m | |
| (50.5 ft) | (25.3 ft) | (12.8 ft) | |||
| Video | |||||
| Frame Rate | CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; | ||||
| AHD: 1080p@25/30fps; 720p@25/30fps; | |||||
| TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; | |||||
| CVBS: 960H | |||||
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart IR | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE/FCC, UL, IP6K9K, EN50155 | ||||
| Port | |||||
| Audio Interface | Built-in Mic | ||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 2.3W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) | ||||
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal | ||||
| Dimensions | Φ62.0 mm × 61.7 mm (Φ2.44" × 2.43") | ||||
| Net Weight | 0.17 kg (0.37 lb) | ||||
| Gross Weight | 0.27 kg (0.6 lb) | ||||
