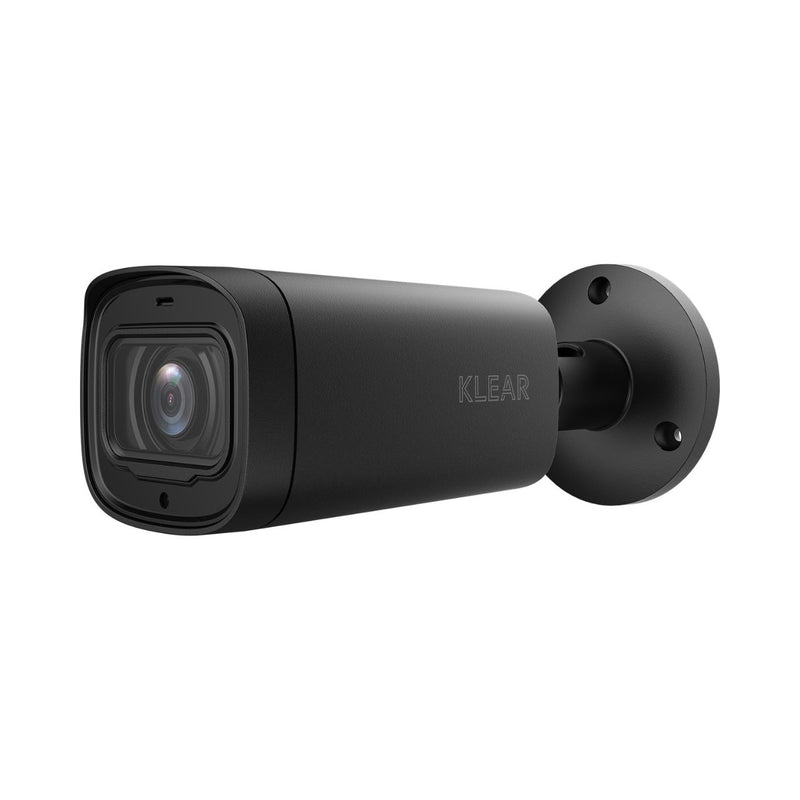

Klear 2MP CVI 2.7-12mm Motorized Bullet, 60m IR, Starlight, PoC
Model: K-206 W MOT POC ST
- 1/2.8" 2MP 1920x1080 Progressive CMOS Starlight Sensor
- IR up to 60m
- POC Technology: Power, Video over 1 Coaxial or 1-Pair CAT5e/6 (compatible with Klear APOC DVRs). Can also be used with 12V DC.
- 2.7-12mm Motorized Lens, Horizontal FOV 101.7-32.3°
- 0.005 Lux @ F1.8 (Colour); 0.0005 Lux @ F1.8 (B/W)
- 4in1: CVI (Default), TVI, AHD or CVB-S
-
IP67
- Casing: Metal
- Dimensions (L x W x H): 209.9 x 90.4 x 90.4mm
Specifications
| Camera | ||||||
| Image Sensor | 1/2.8" CMOS | |||||
| Effective Pixels | 1920(H)×1080(V), 2MP | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | PAL: 1/25~1/100000s | |||||
| NTSC: 1/30~1/100000s | ||||||
| Minimum Illumination | 0.005Lux/F1.8, 30IRE, 0Lux IR on | |||||
| S/N Ratio | More than 65dB | |||||
| IR Distance | Up to 60m (197feet) | |||||
| IR On/Off Control | Auto / Manual | |||||
| IR LEDs | 4 | |||||
| Lens | ||||||
| Lens Type | Motorized lens / Fixed iris | |||||
| Mount Type | Board-in | |||||
| Focal Length | 2.7-12mm | |||||
| Max Aperture | F1.8 | |||||
| Angle of View | H: 101.7°~32.3° | |||||
| Focus Control | Motorized | |||||
| Close Focus Distance | 200mm | |||||
| 7.87'' | ||||||
| DORI Distance | ||||||
|
|
Wide / Zoom | |||||
| Detect | 47m(153ft) / 137m(448ft) | |||||
| Observe | 19m(61ft) / 55m(179ft) | |||||
| Recognize | 9m(31ft) / 27m(90ft) | |||||
| Identify | 5m(15ft) / 14m(45ft) | |||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | ||||||
| Pan / Tilt / Rotation | ||||||
| Pan/Tilt/Rotation | Pan: 0° ~ 360° | |||||
| Tilt: 0° ~ 87° | ||||||
| Rotation: 0° ~ 360° | ||||||
| Video | ||||||
| Resolution | 1080P (1920×1080) | |||||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | |||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | |||||
| Day/Night | Auto (ICR) / Manual | |||||
| OSD Menu | Multi-language | |||||
| BLC Mode | BLC / HLC / DWDR | |||||
| WDR | DWDR | |||||
| Gain Control | AGC | |||||
| Noise Reduction | 2D | |||||
| White Balance | Auto / Manual | |||||
| Smart IR | Auto / Manual | |||||
| Certifications | ||||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | |||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||||
| Interface | ||||||
| Audio Interface | N/A | |||||
| Eelectrical | ||||||
| Power Supply | POC/12V DC ±30% | |||||
| Power Consumption | Max 12.1W (12V DC, IR on) | |||||
| Environmental | ||||||
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH | |||||
| * Start up should be done at above -30°C (-22°F) | ||||||
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH | |||||
| Ingress Protection & Vandal Resistance | IP67 | |||||
| Construction | ||||||
| Casing | Aluminium | |||||
| Dimensions | 209.9mm×90.4mm×90.4mm (8.26"×3.56"×3.56") | |||||
| Net Weight | 0.55kg (1.21lb) | |||||
| Gross Weight | 0.70kg (1.54lb) | |||||
