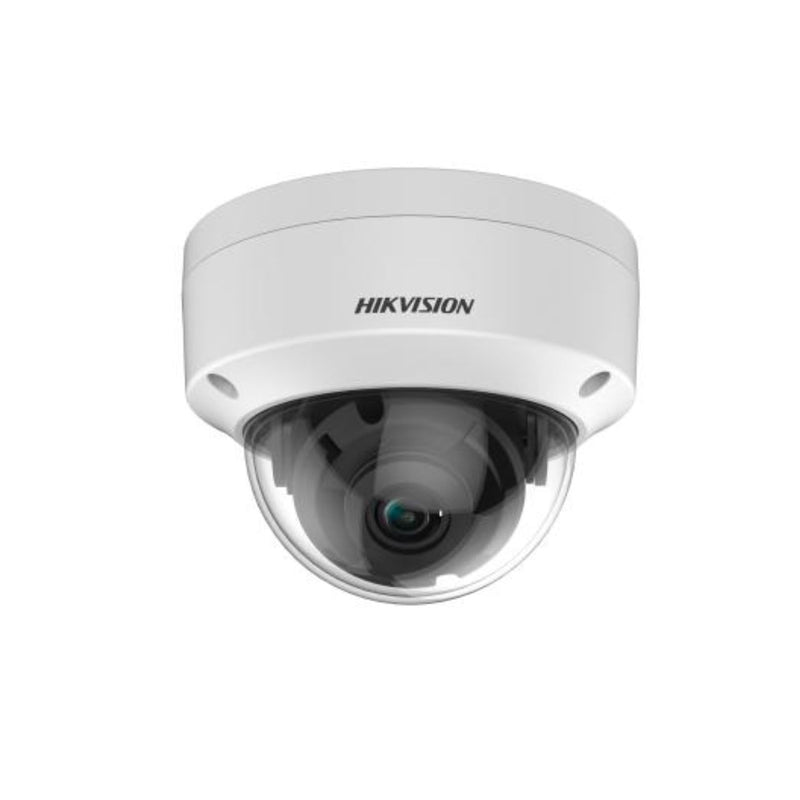

Hikvision 5MP TVI Vandal Dome, 20m IR
Model: DS-2CE57H0T-VPITF(2.8mm)(C)
- 5 MP dome camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
- Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementYes
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputTVI/AHD/CVI/CVBS
- General
- MaterialMetal
- DimensionΦ 110.8 mm × 84.7 mm (Φ 4.4" × 3.3")
- WeightApprox. 362 g (0.80 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ±25%
- Consumption
Max. 4.3 W
- IR RangeUp to 20 m
- Approval
- ProtectionIP67 IK10
