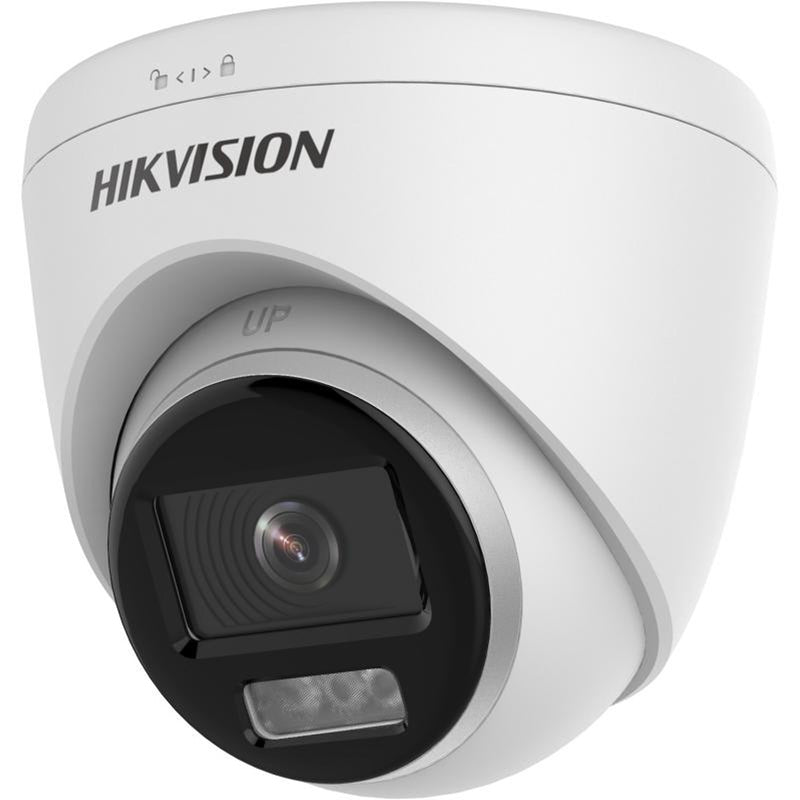

Hikvision 3K TVI Turret, 40m Smart Hybrid Light & Audio
Model: DS-2CE72KF0T-LFS(2.8mm)
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Up to 40 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
-
Smart-Hybrid light, optimize your security with flexible lighting options
Specifications
- Camera
- Image Sensor3K CMOS
- Signal SystemPAL/NTSC
- Resolution2960 (H) × 1665 (V)
- Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI: 4 MP @25 fps/30 fps
CVBS: PAL/NTSC
- Min. Illumination0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm, 3.6 mm fixed focal lens
- Field of View
2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°
3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°
- Lens MountM12
- Light AlarmSolid Light Alarm (White Light)
- Day & NightICR
- WDR (Wide Dynamic Range)Digital WDR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Microphone
- Pickup DistanceIn a radius of up to 5 m
- Amount1
- Illuminator
- Supplement Light TypeSmart, IR, White Light
- Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m
- Image
- White LightAuto/Off
- Image ModeSTD/HIGH-SAT/HIGHLIGHT
- AGCYes
- Day/Night ModeAuto/Color
- White BalanceAuto/Outdoor/Global/Manual
- AE (Auto Exposure) ModeHLS;DWDR;BLC;HLC;Global
- Noise Reduction2D DNR
- LanguageEnglish
- FunctionSmart IR;Brightness;Sharpness;AGC;Anti-Banding
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- Audio InBuilt-in mic
- General
- Power12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.
- Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Protection LevelIP67
- MaterialEnclosure: Plastic Main body: Metal
- CommunicationHIKVISION-C
- DimensionØ109.98 mm × 98.27 mm (Ø4.33" × 3.87")
- Approx. 320 g (0.71 lb.)
