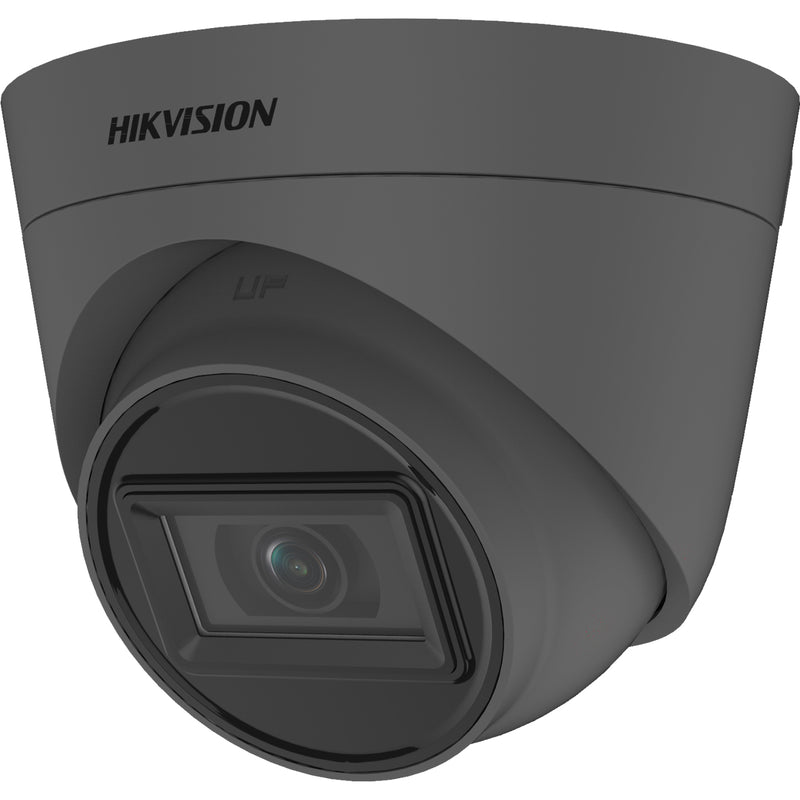

Hikvision 5MP TVI Turret, 40m IR, PoC
Model: DS-2CE78H0T-IT3E(2.8mm)(C)(GREY)
- High quality imaging with 5MP 2560 × 1944 resolution
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
Specifications
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124°
3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Smart IR
- Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR, BLC, HLC, Global
- Noise Reduction2D DNR
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video Output1 HD analog output
- General
- Material
Front Cover: Plastic
Main Body: Metal
- Dimension91.0 mm × Ø109.8 mm (3.58" × Ø4.32")
- WeightApprox. 326 g (0.72 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ±25%/PoC.af
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- Consumption
Max. 3 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
