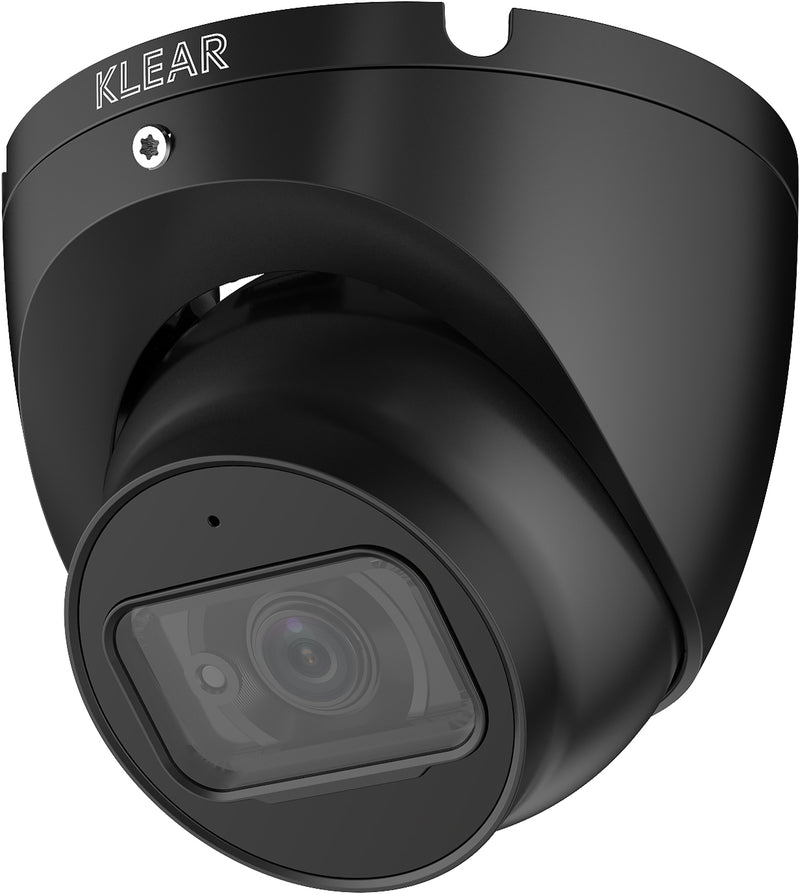

Klear 5MP CVI Eyeball, 30m IR, Starlight, & Audio
Model: K-503 E A ST B
- 5MP/3K 2880x1620 16:9 Progressive CMOS Starlight Sensor
- IR up to 30m
- Built-in Microphone
- 2.8mm Fixed Lens, Horizontal FOV 111°
- 0.005 Lux @ F1.6 (Colour); 0.0005 Lux @ F1.6 (B/W)
- 4in1: CVI (Default), TVI, AHD or CVB-S
-
IP67
- Casing: Metal
- Dimensions (Ø x H): 93.4 x 88.1mm
Specifications
| Camera | ||||||
| Image Sensor | 5MP CMOS | |||||
| Max. Resolution | 2880 (H) × 1620 (V) | |||||
| Pixel | 5MP | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | |||||
| NTSC: 1/30 s–1/100000 s | ||||||
| S/N Ratio | > 65 dB | |||||
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on | |||||
| Illumination Distance | 30 m (98.4 ft) | |||||
| Illuminator On/Off Control | Auto; manual | |||||
| Illuminator Number | 1 (IR light) | |||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | |||||
| Tilt: 0°–78° | ||||||
| Rotation: 0°–360° | ||||||
| Lens | ||||||
| Lens Type | Fixed lens | |||||
| Mount Type | M12 | |||||
| Focal Length | 2.8mm | |||||
| Max. Aperture | F1.6 | |||||
| Field of View | 2.8mm: H:111° V:58° D:132° | |||||
| Iris Type | Fixed | |||||
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | |
| 2.8 mm | 63.6 m | 25.4 m | 12.7 m | 6.4 m | ||
| (208.7 ft) | (83.3 ft) | (41.7 ft) | (21.0ft) | |||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. | ||||||
| Video | ||||||
| Frame Rate | CVI: | |||||
| PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; | ||||||
| NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps | ||||||
| AHD: | ||||||
| PAL: 4M@25 fps; | ||||||
| NTSC: 4M@30 fps | ||||||
| TVI: | ||||||
| PAL: 4M@25 fps; | ||||||
| NTSC: 4M@30 fps | ||||||
| CVBS: | ||||||
| PAL: 960H; | ||||||
| NTSC: 960H | ||||||
| Resolution | 5M (2880 × 1620); | |||||
| 4M (2560 × 1440); | ||||||
| 1080P (1920 ×1080); | ||||||
| 960 H (960 × 576/960 × 480) | ||||||
| Day/Night | Auto switch by ICR | |||||
| BLC | BLC/HLC/DWDR | |||||
| WDR | DWDR | |||||
| White Balance | Auto; Area WB | |||||
| Gain Control | Auto/Manual | |||||
| Noise Reduction | 2D NR | |||||
| Smart IR | Yes | |||||
| Mirror | Off/On | |||||
| Privacy Masking | Off/On (8 area, rectangle) | |||||
| Certifications | ||||||
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) | |||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||||
| Port | ||||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by BNC port | |||||
| Audio Input | Built-in Microphone | |||||
| Power | ||||||
| Power Supply | 12V ±30% DC | |||||
| Power Consumption | Max 3.2W (12V DC, IR on) | |||||
| Environment | ||||||
| Operating Temperature | –40°C to +60°C (-40°F to 140°F); < 95% (non-condensation) | |||||
| Storage Temperature | –40°C to +60°C (-40°F to 140°F); < 95% (non-condensation) | |||||
| Protection Grade | IP67 | |||||
| Structure | ||||||
| Casing | Metal | |||||
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") | |||||
| Net Weight | 0.33 kg (0.73 lb) | |||||
| Gross Weight | 0.47 kg (1.04 lb) | |||||
