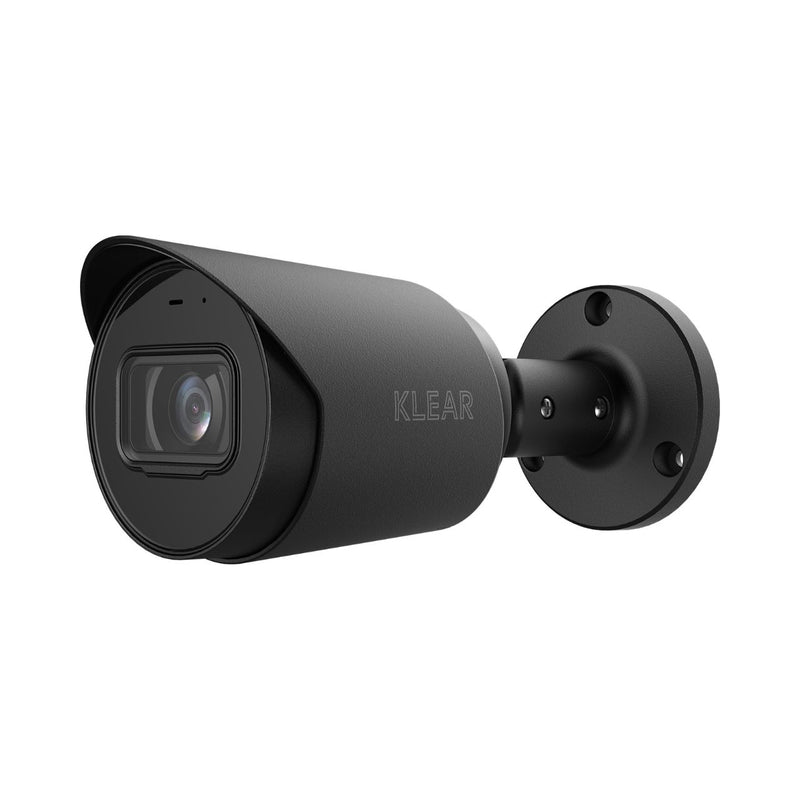

Klear 5MP CVI Bullet, 30m IR, PoC & Audio
Model: K-503 W APOC
- 1/2.7" 5MP 2592x1944 Progressive CMOS Sensor
- IR up to 30m
- Built-in Microphone
- APOC Technology: Audio, Power, Video over 1 Coaxial or 1-Pair CAT5e/6 (compatible with Klear APOC DVRs). Can also be used with 12V DC.
- 3.6mm Fixed Lens, Horizontal FOV 78°
- 0.02 Lux @ F1.85 (Colour); 0.002 Lux @ F1.85 (B/W)
- 4in1: CVI (Default), TVI, AHD or CVB-S
-
IP67
- Casing: Metal
- Dimensions (L x W x H): 176.1 x 72.4 x 72.5mm
Specifications
| Camera | ||||||
| Image Sensor | 1/2.7" CMOS | |||||
| Effective Pixels | 2592(H)×1944(V), 5MP | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | PAL: 1/25~1/100000s | |||||
| NTSC: 1/30~1/100000s | ||||||
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on | |||||
| S/N Ratio | More than 65dB | |||||
| IR Distance | Up to 30m (98feet) | |||||
| IR On/Off Control | Auto / Manual | |||||
| IR LEDs | 1 | |||||
| Lens | ||||||
| Lens Type | Fixed lens / Fixed iris | |||||
| Mount Type | Board-in | |||||
| Focal Length | 3.6mm | |||||
| Max Aperture | F1.85 | |||||
| Angle of View | H: 77.5° | |||||
| V: 56.5° | ||||||
| Focus Control | N/A | |||||
| Close Focus Distance | 1400mm | |||||
| 55.1'' | ||||||
| DORI Distance | ||||||
| Detect | 3.6mm: 80m(262ft) | |||||
| Observe | 3.6mm: 32m(105ft) | |||||
| Recognize | 3.6mm: 16m(52ft) | |||||
| Identify | 3.6mm: 8m(26ft) | |||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. | ||||||
| Pan / Tilt / Rotation | ||||||
| Pan/Tilt/Rotation | Pan: 0° ~ 360° | |||||
| Tilt: 0° ~ 90° | ||||||
| Rotation: 0° ~ 360° | ||||||
| Video | ||||||
| Resolution | 5MP (2592×1944) | |||||
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P | |||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | |||||
| Day/Night | Auto (ICR) / Manual | |||||
| OSD Menu | Multi-language | |||||
| BLC Mode | BLC / HLC / DWDR | |||||
| WDR | DWDR | |||||
| Gain Control | AGC | |||||
| Noise Reduction | 2D | |||||
| White Balance | Auto / Manual | |||||
| Smart IR | Auto / Manual | |||||
| Certifications | ||||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | |||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||||
| Interface | ||||||
| Audio Interface | Built-in Mic | |||||
| Eelectrical | ||||||
| Power Supply | POC/12V DC ±30% | |||||
| Power Consumption | Max. 3.6W (12V DC, IR on) | |||||
| Environmental | ||||||
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |||||
| * Start up should be done at above -40°C (-40°F) | ||||||
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |||||
| Ingress Protection & Vandal Resistance | IP67 | |||||
| Construction | ||||||
| Casing | Aluminium | |||||
| Dimensions | 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85") | |||||
| Net Weight | 0.37kg (0.82lb) | |||||
| Gross Weight | 0.48kg (1.06lb) | |||||
