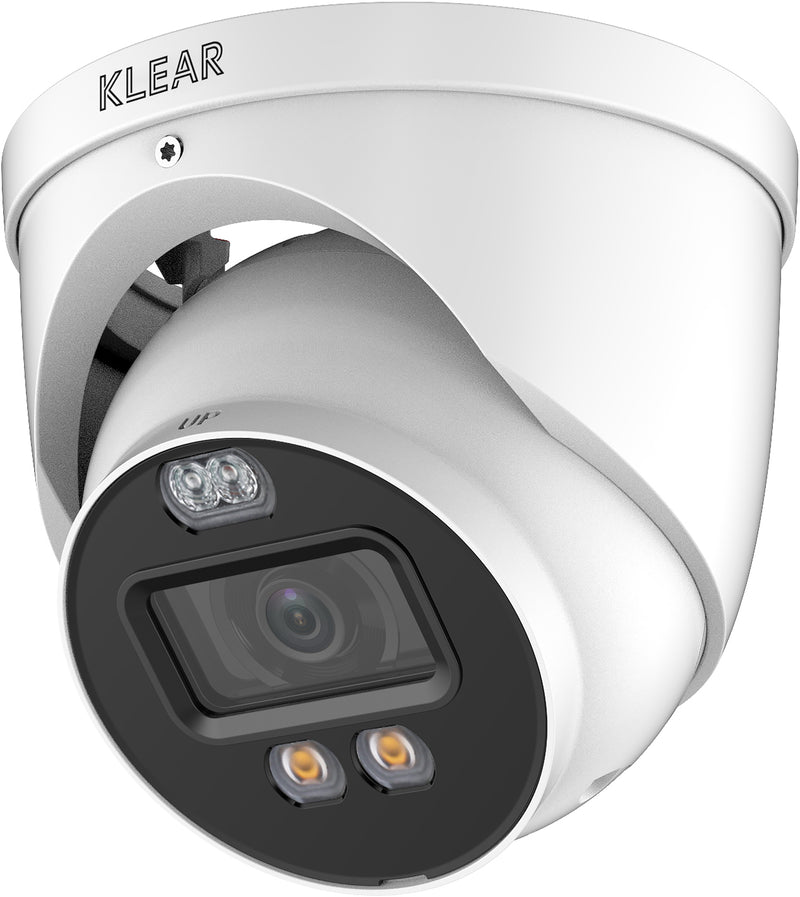

Klear 8MP CVI AIO Eyeball, 40m Hybrid (Colour+IR), F1.0, Audio, Speaker, Siren, Strobe

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
 NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)
0.0001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light);2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 3.5 m (11.48 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

91.0 m

(298.56 ft)

36.4 m (119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

Video

Video Frame Rate

CVI:
PAL: 4k@15 fps; 5M@25 fps; 4M@25 fps;
NTSC: 4k@15 fps; 5M@25 fps; 4M@30 fps;
AHD:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
TVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Active Deterrence

Sound Warning

Audio 1: alarm
Audio2: No parking here
Audio3: Private land no entry.
Audio4: Warning zone keep off
Audio5: Welcome
Volume: high/medium/low;
duration: 5 s–60 s; 110 dB

Red/Blue Light Warning

Flash: 5 s–60 s; frequency: high/medium/low

Certification

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Alarm Output

1 channel

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 10.45 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Low

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 110.9 mm (Φ4.80" × 4.37")

Net Weight

0.72 kg (1.59 lb)

Gross Weight

0.96 kg (2.12 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
