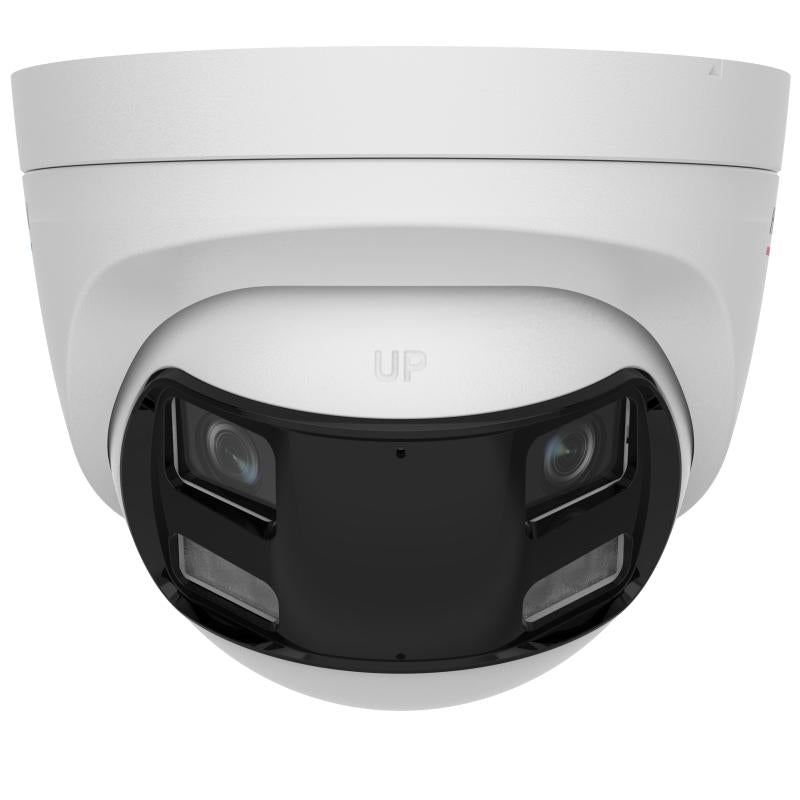

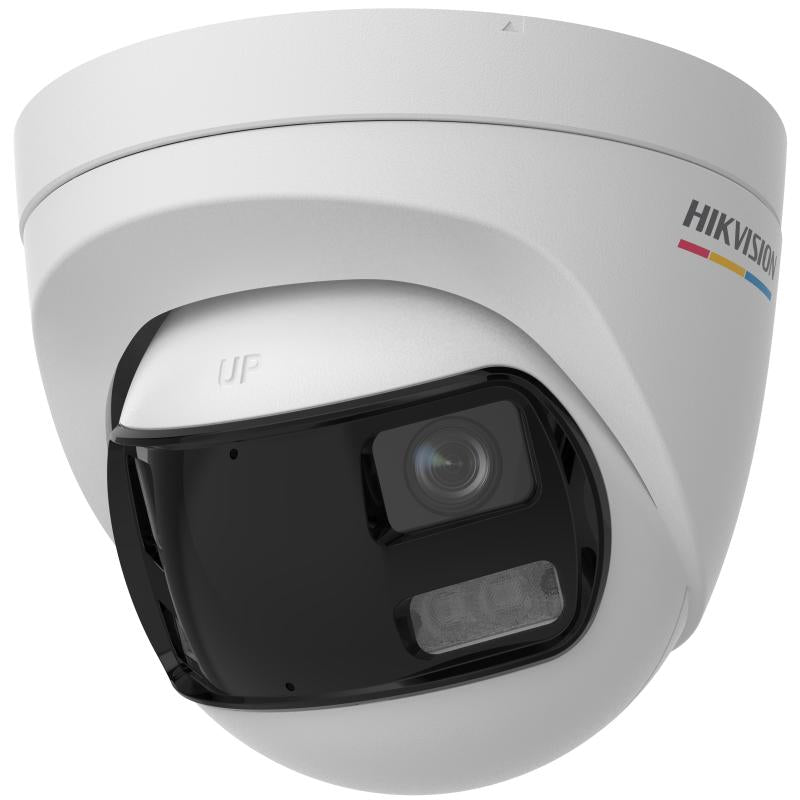

Hikvision 3K TVI Panoramic Turret, 40m Smart Hybrid Light & Audio
Model: DS-2CE72KF3TP-DLS(180°)
- Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
- High quality imaging with 3K, 3328 × 1504 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Up to 40 m white light and 40 m IR distance for bright night imaging
- Built-in mic, high quality audio with audio over coaxial cable
- Water and dust resistant (IP67)
Specifications
- Camera
- Max. Resolution3328 (H) × 1504 (V)
- Shutter Time1/20 s to 1/50,000 s
- Image Sensor3K CMOS
- Slow ShutterMax. 16 times
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Lens
- Lens Type2.8 mm fixed focal lens
- Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
- Lens MountM12
- DORI
- DORI2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
- Illuminator
- Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m
- Smart Supplement LightYes
- Image
- Frame Rate3K @20 dual
- Privacy Mask4 programmable privacy masks
- Wide Dynamic Range (WDR)≥130 dB
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Day/Night ModeAuto
- White BalanceAuto/Manual
- Image EnhancementWDR;BLC;HLC;Global
- Noise Reduction3D DNR
- Image SettingsBrightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC
- Interface
- Video Output1 HD analog output
- Built-in MicrophoneYes
- Event
- Motion Detection4 programmable motion areas
- General
- Power12 VDC ± 25%, max. 7.2 W,*You are recommended to use one power adapter to supply the power for one camera.,If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
- LanguageEnglish
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
- MaterialMain body: Metal, Enclosure: Plastic
- CommunicationHIKVISION-C
- DimensionØ130.11 mm × 109.2 mm (Ø5.12" × 4.3")
- Approx. 570 g (1.26 lb.)
- Approval
- ProtectionIP67
