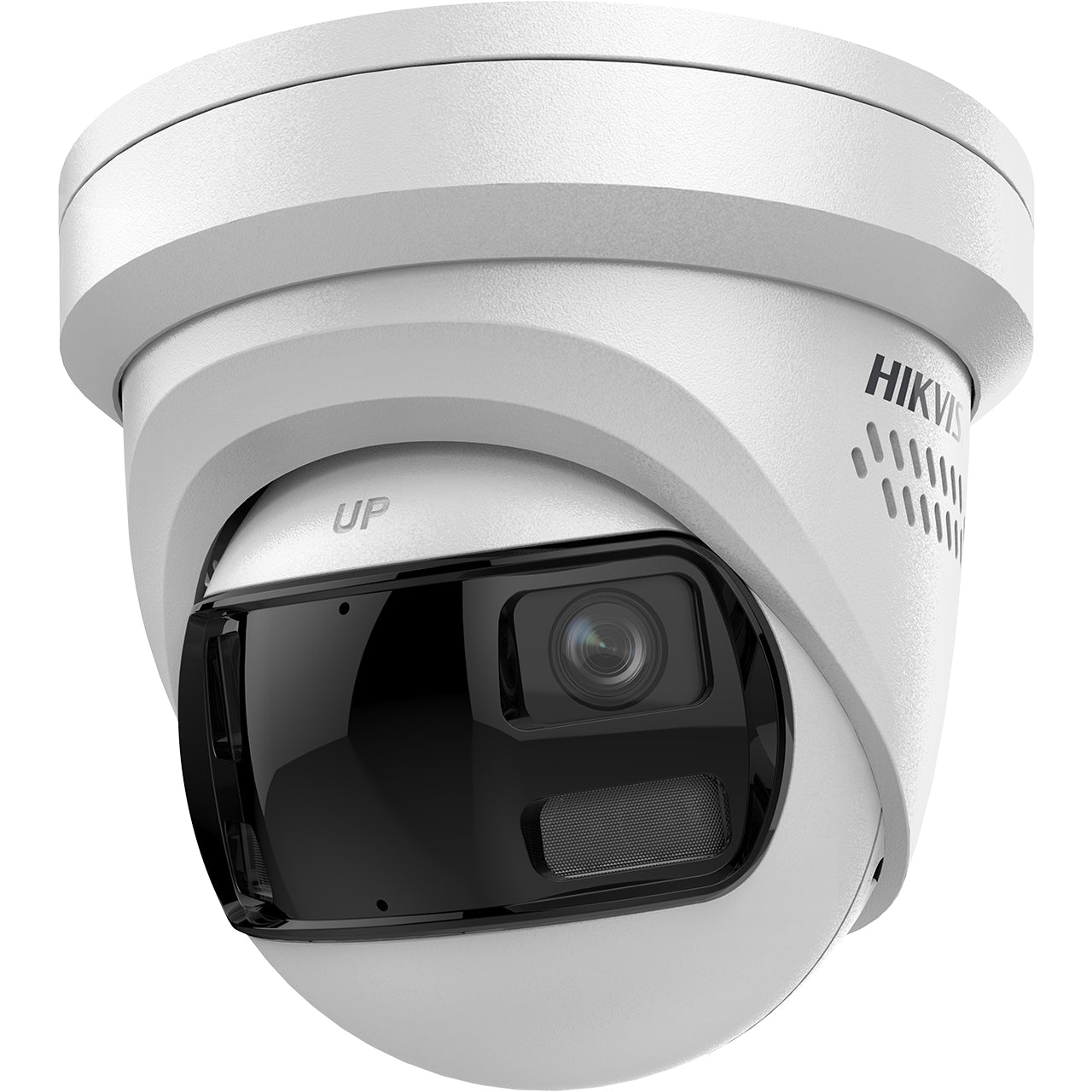

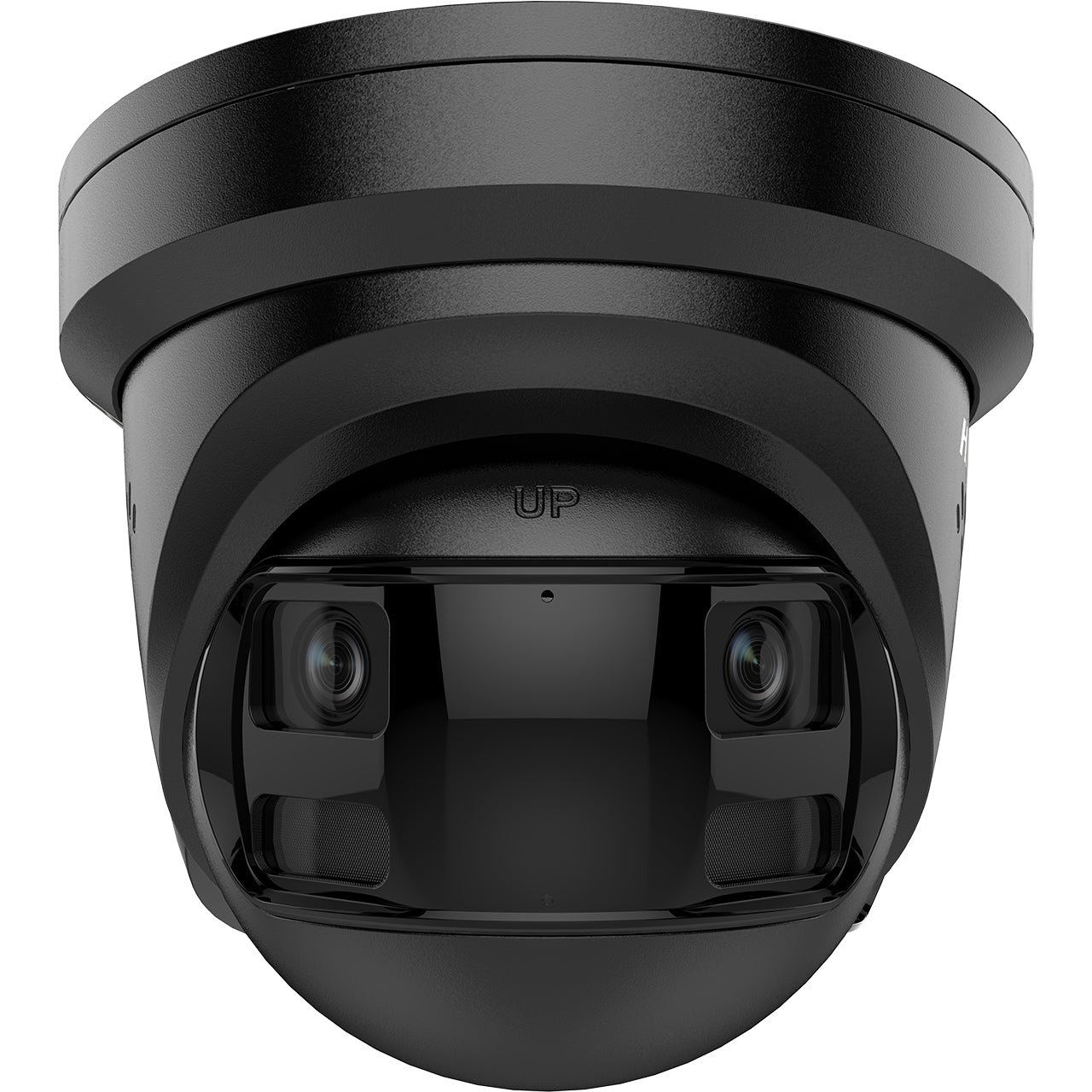

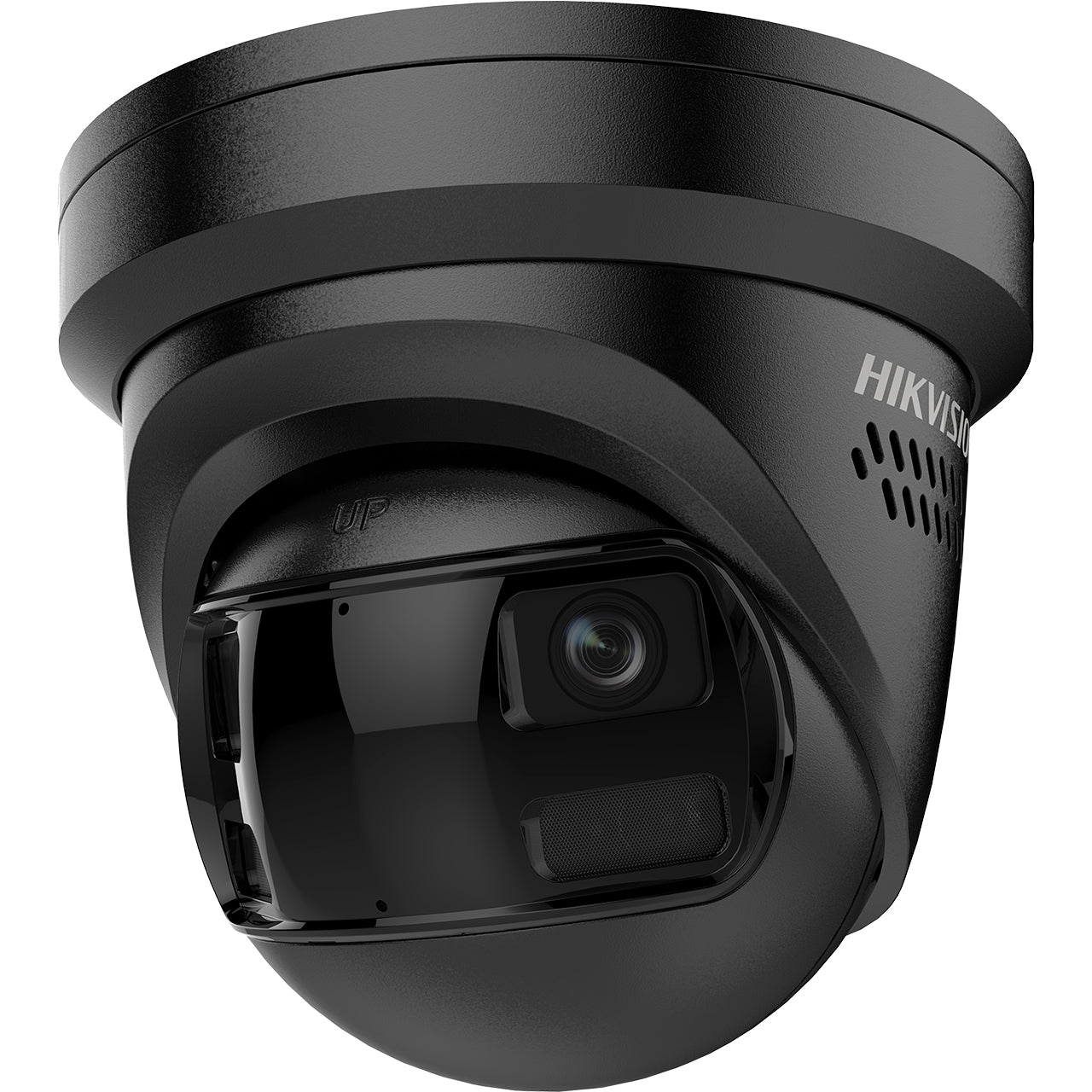

Hikvision 8MP IP Panoramic Turret, 30m Hybrid (ColorVu+IR), AcuSense, 2-Way Audio, Speaker, Strobe
Model: DS-2CD2383G2P-LISU/SL(180°)
- 180° Field of view
- High quality imaging with 8 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
-
Active strobe light and audio alarm to warn intruders off
Specifications
- Camera
- Image Sensor1/2.4" Progressive Scan CMOS
- Max. Resolution4256 × 1888
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2 mm
- Focal Length & FOV2 mm, horizontal FOV 180°, vertical FOV 77°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
- DORI2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (4256 × 1888, 4096 × 1860)
60 Hz: 20 fps (4256 × 1888, 4096 × 1860)
- Sub-Stream
50 Hz: 20 fps (1200× 536, 960 × 432)
60 Hz: 20 fps (1200× 536, 960 × 432)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio TypeMono sound
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 11,
Local service: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Built-in SpeakerYes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium
1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 12 VDC, 30 mA)
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventLine crossing detection, intrusion detection(support alarm triggering by specified target types (human and vehicle))
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
- General
- Power
12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 11.5 W
- MaterialBase: Metal, cover: Metal
- DimensionØ138.6 mm × 125 mm (Ø5.46" × 4.9")
- Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- Approx. 808 g (1.781 lb.)
- With Package WeightApprox. 1050 g (2.315 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- General FunctionHeartbeat,anti-banding,password protection,password reset via email
- Flashing Light
/SRB model: Red and Blue Light
/SL model: White Light
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
