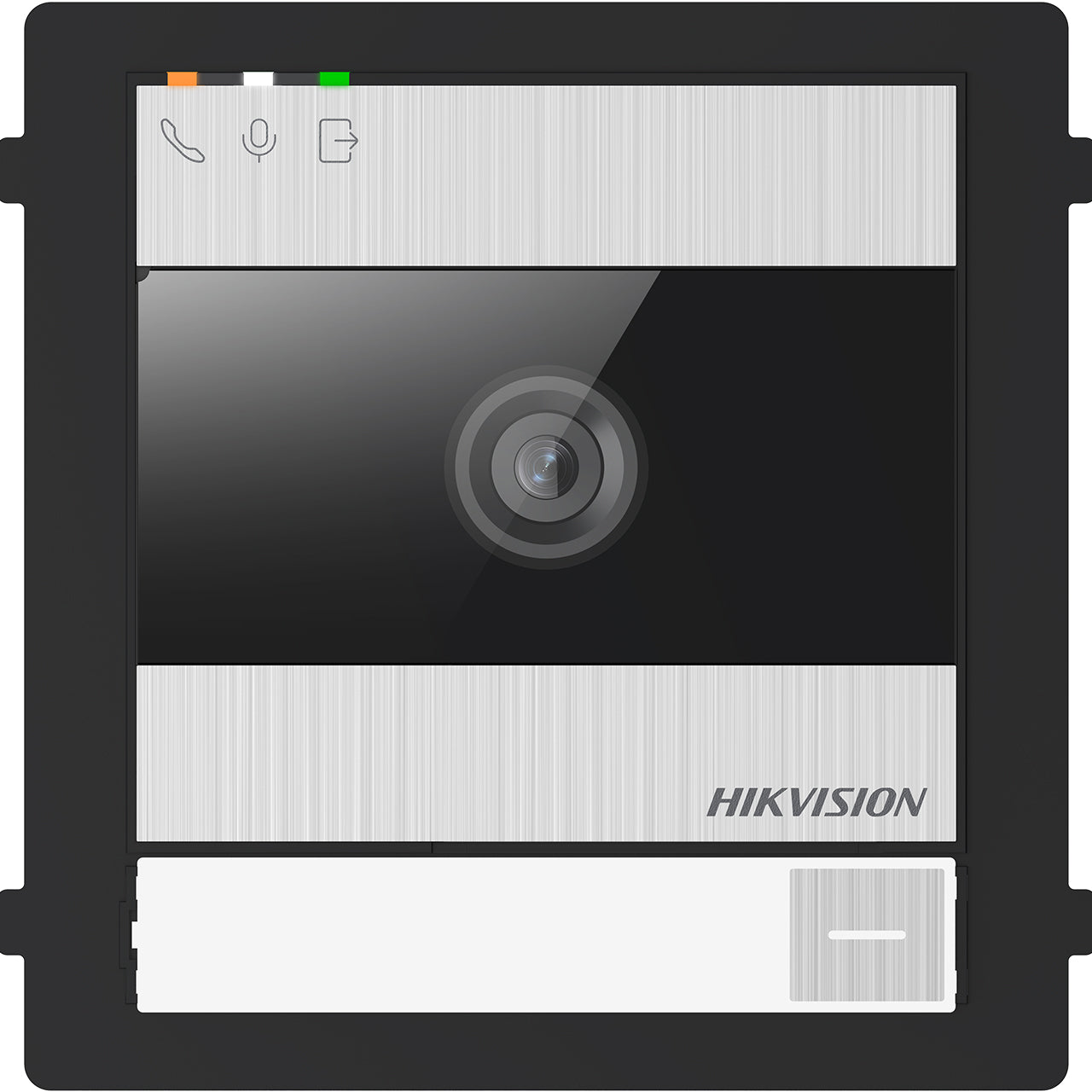

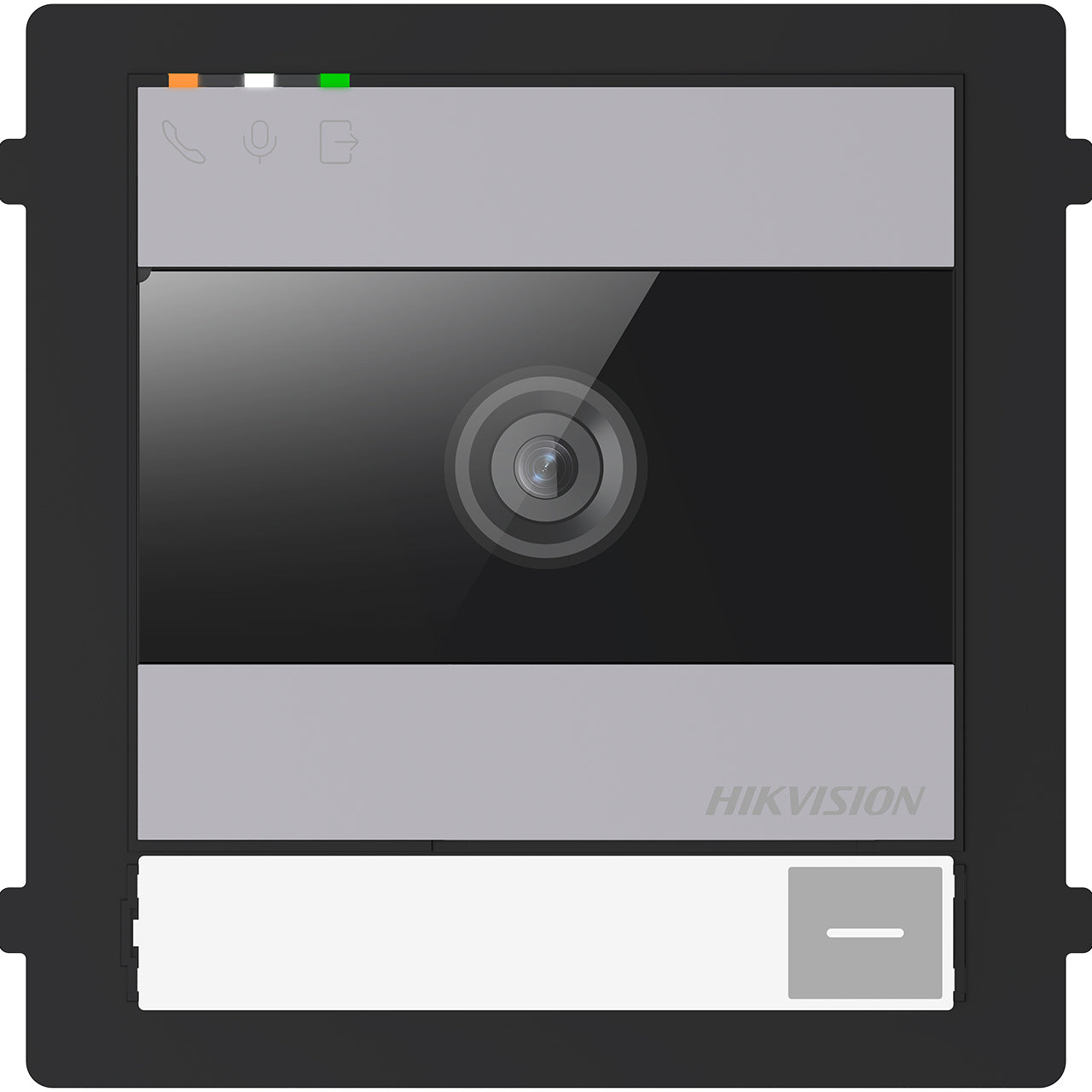

Hikvision IP PoE Intercom 5MP Camera Module
Model: DS-KD8005-IME1
- Main unit of modular door station with high 5 MP resolution camera
- Flexible adjustment of 0/1/2 call buttons
- Standard PoE power supply
- IP65, IK08 protection level
- Convenient configuration via Web remotely
-
Two-lock control
Specifications
- System parameters
- Operation systemLinux
- ROM4 GB
- RAM256 MB
- ProcessorEmbedded high performance processor
- Video parameters
- Lens5 MP camera
- Resolution3200* 1800
- FOVHorizontal: 134°, Vertical: 82°
- Wide dynamic range (WDR)Support, 100dB
- Supplement lightLow illumination, IR supplement lights
- Video compression standardH.264，H.265，MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG711U、G711A、G722.1、G726、AAC_LC、AAC_LD、OPUS
- Audio output1 built-in loudspeaker
- Audio compression bitrateMax. 64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Audio Performance30cm 80dB
- Capacity
- User capacity2000
- Linked indoor station capacity1000
- Sub door station capacity99
- Network parameters
- Network protocolTCP/IP, RTSP, RTP, SIP, Onvif
- Device interfaces
- Alarm input4 (2 exit buttons and 2 door contacts by default)
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button2 (2 for lock control)
- RS-4851 (1 for Hikvision's sub module communication)
- Lock control2 relays, Max. 30 VDC, 2 A
- Door contact input2
- General
- Button2
- InstallationSurface mounting, flush mounting
- Indicator3
- Without package: 260 g (0.57 lb)
- Protective levelIP65, IK08
- Working temperature-40℃~+60℃
- Power supply12 VDC, 1.5 A,IEEE802.3af, Standard PoE
- Application environmentOutdoor
- Power consumption≤ 5 W
