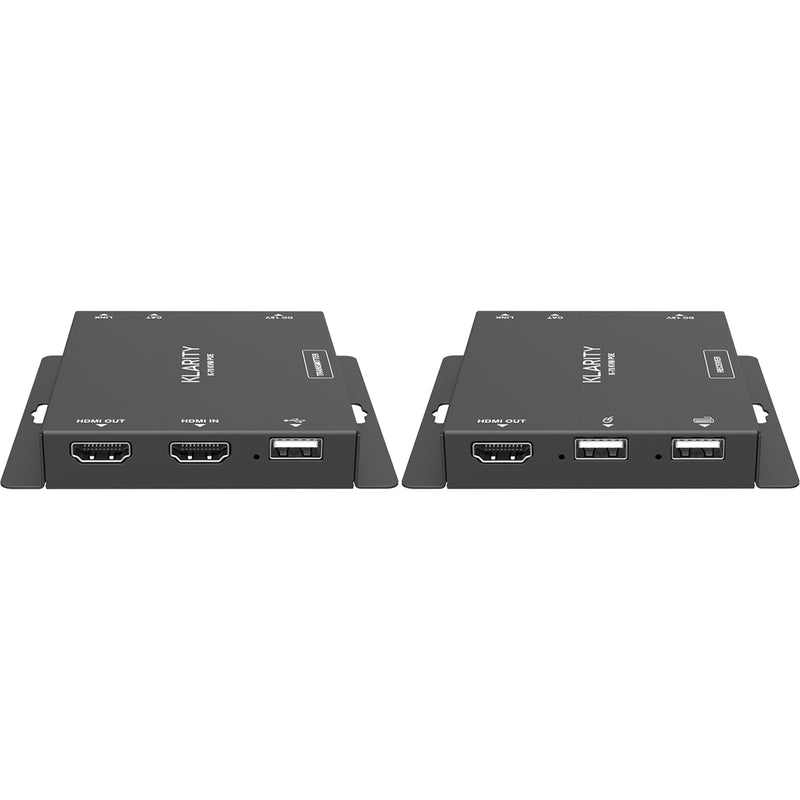

Klarity 70m 1080p, 50m 4K30, KVM USB, HDMI PoE Extender
- Up to 50m 4K 30Hz 4:4:4 (4096x2160p) / up to 70m 1080p 60Hz*
- USB Control: Transmitter: 1 x USB; Receiver: 2 x USB
- Uncompressed & Zero Latency
- Klarity Bi-directional PoE - Transmitter or Receiver can be powered (only 1 power supply used)
- HDMI 1.4
- HDCP 1.4 Compliant
- HDMI Loop-through for local display
- Super slim - only 16mm thick
Overview
Klarity's HDMI KVM extender enables the transmission of uncompressed audio/video 4K30 up to 50m/164ft and 1080p60 up to 70m/230ft as well as USB control over a single CAT cable* with zero latency.
PoE
With Klarity's private PoE protocol, only the Transmitter is powered, eliminating the need for a power supply to the Receiver.
KVM
Built-in KVM functionality allows a USB wired or wireless mouse and keyboard to be used to control the source up to 70m away, perfect for controlling a CCTV recorder or PC at distance.
Uncompressed & 0ms Latency
Using Klarity's proprietary chipset technology, audio/video is uncompressed with zero latency, being identical to an HDMI cable. Furthermore, with no delay, USB mouse and keyboard control is instant.
HDMI Loop-through
The HDMI loop-through on the Transmitter allows the source to be split into a local display or to be cascaded into another K-70 POE, saving on the cost and space of an HDMI Splitter.
EDID
Automatic EDID requires no configuration to allow source and display 'handshaking' for a seamless integration.
Specifications
- Up to 50m 4K 30Hz 4:4:4 (4096x2160p) / up to 70m 1080p 60Hz*
- USB Control: Transmitter: 1 x USB; Receiver: 2 x USB (Mouse/Keyboard)
- Uncompressed & Zero Latency (0ms)
- Klarity Bi-directional PoE - Transmitter or Receiver can be powered (only 1 power supply used)
- HDMI 1.4
- HDCP 1.4 Compliant
- HDMI Loop-through for local display
- Super slim - only 16mm thick
- Automatic EDID
- Metal casing
- Wall Mountable
*(based on full copper CAT6)
