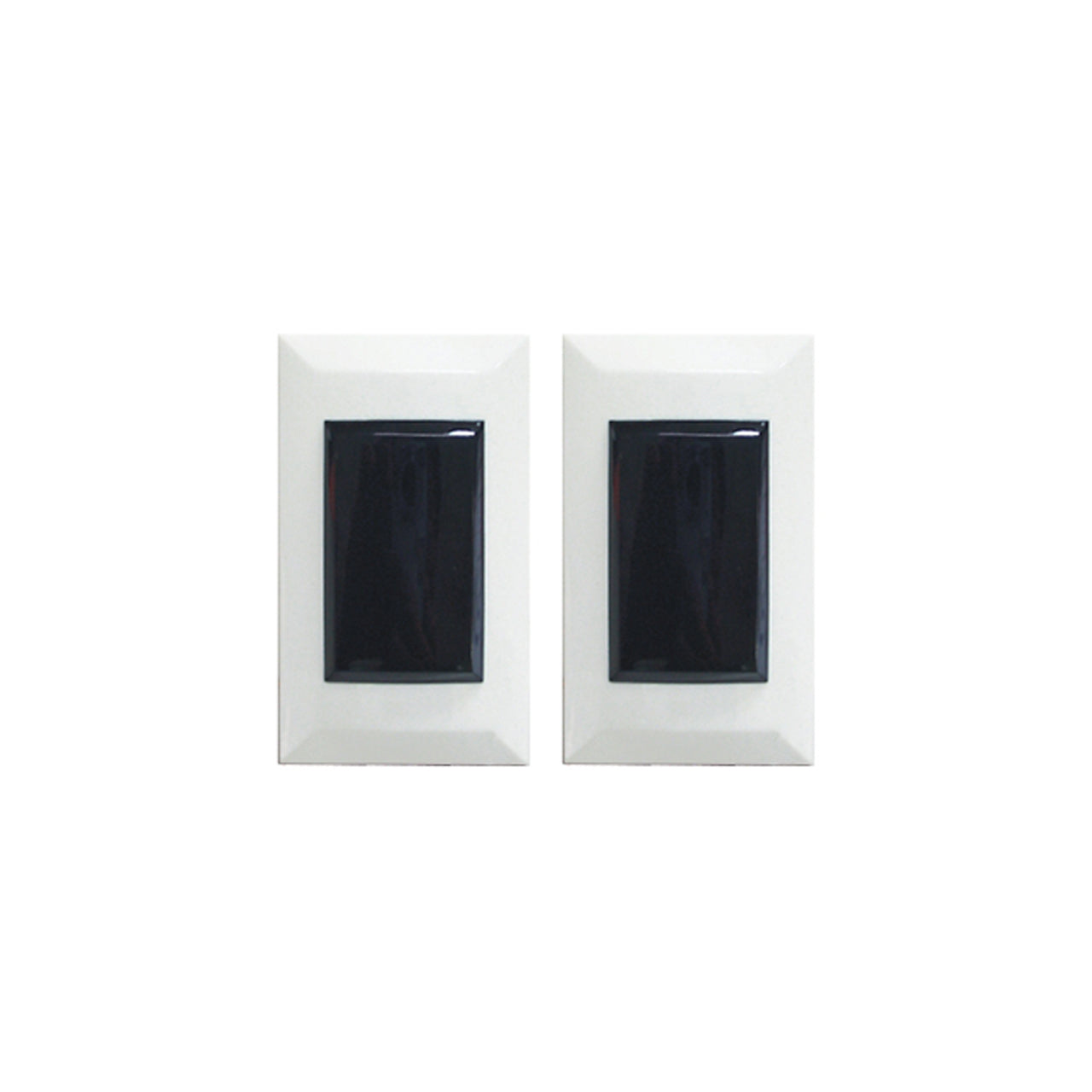

Twin IR Beams, Single Channel, Flush, 10m Indoor

Model: TM-10 TBF
0 (0 Review)
  • IR Beam
  • Single Channel
  • Range: up to 10m
  • NO/NC Relay Outputs
  • IP44
  • Flush Mount
  • 2 Units Included: Transmitter & Receiver
  • Dimensions (L x W x D): 120 x 70 x 35 mm
Trade only. Requires account to purchase.

Overview

A compact, flush mounted Infra-Red (IR) photoelectric beam set that can be used indoors for perimeter protection, ideal for entrances.

Specifications

Number of IR Beams
1
FrequencySingle Channel
Lens TypeSpherical
Outdoor Range


Indoor Range
Up to 10m
Detection System
Break of beam
Response Time
10ms
Laser Beam Alignment


Trigger Outputs
NO/NC Relay Outputs, 0.5A/250VAC
Tamper Output (TX & RX)

Tamper


Alignment Angle±15° Horizontal, ±15° Vertical
Housing
 UV Light Filtered Polycarbonate
IP Rating
IP44
Operating Temperature-10°C to +50°C
Operating Voltage12~18 VDC
Current Consumption

50mA

Accessories
Dimensions (L x W x D)120 x 70 x 35 mm
