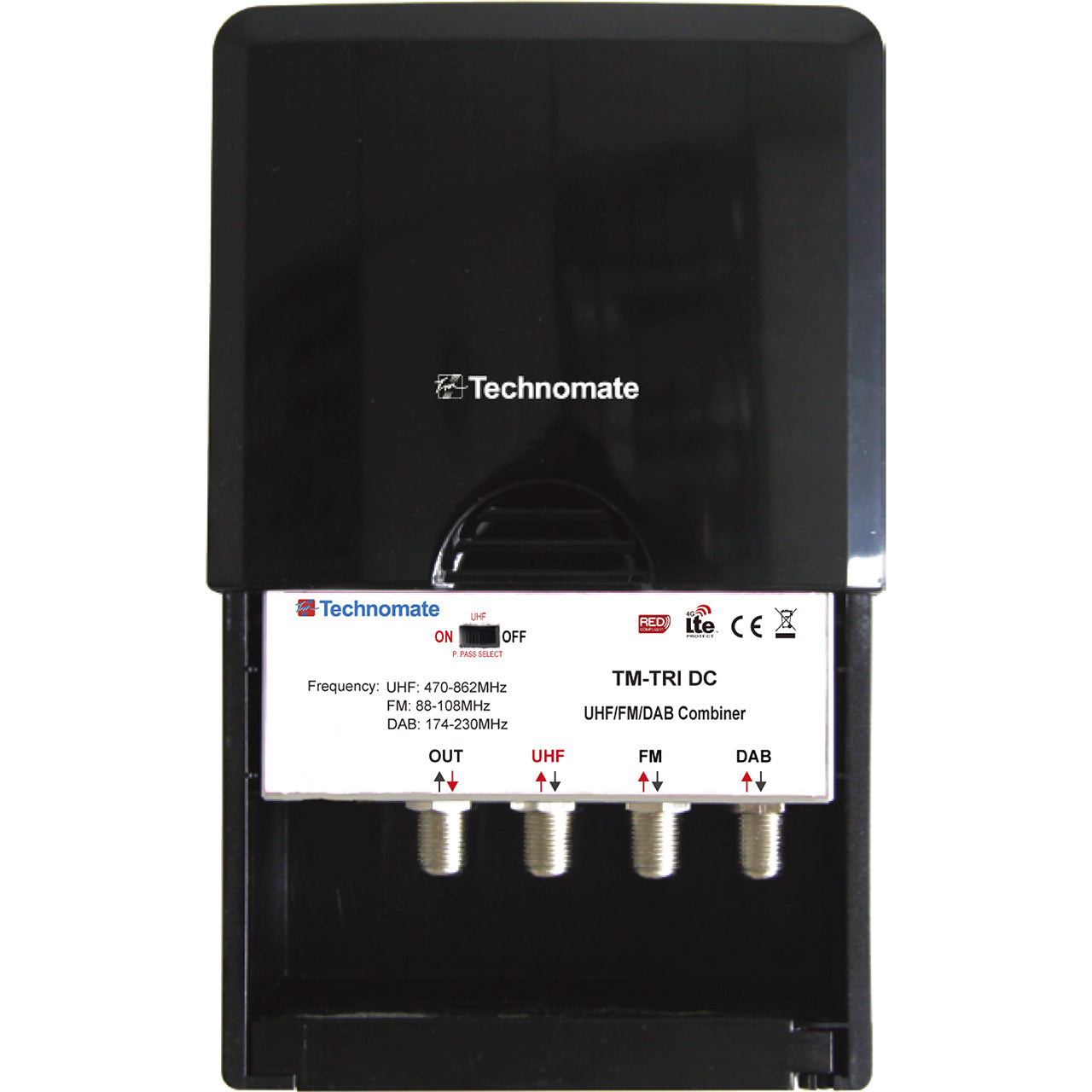

Technomate UHF, DAB & FM Combiner, Triplexer, Outdoor
Model: TM-TRI DC
- UHF, DAB & FM Combiner (Triplexer)
- Combines 3 signals into 1 Cable
- Power Pass on UHF
- Internal LTE Filter (4G filtering to reject unwanted data signals)
- Weatherproof Casing
Overview
The TM-TRI DC allows you to combine UHF, DAB and FM signals into one cable.
Specifications
- UHF, DAB & FM Combiner (Triplexer)
- Combines 3 signals into 1 Cable
- 3 Inputs, 1 Output
- UHF Frequency Range: 470-862MHz
- FM Frequency Range: 88-108MHz
- DAB Frequency Range: 174-230MHz
- UHF through loss: <2.0dB
- FM through loss: <1.0dB
- DAB through loss: <1.5dB
- Power Pass on UHF
- Current Passed: 12V DC 500mA
- Fully Screened Enclosure
- Wall Mountable
==>
